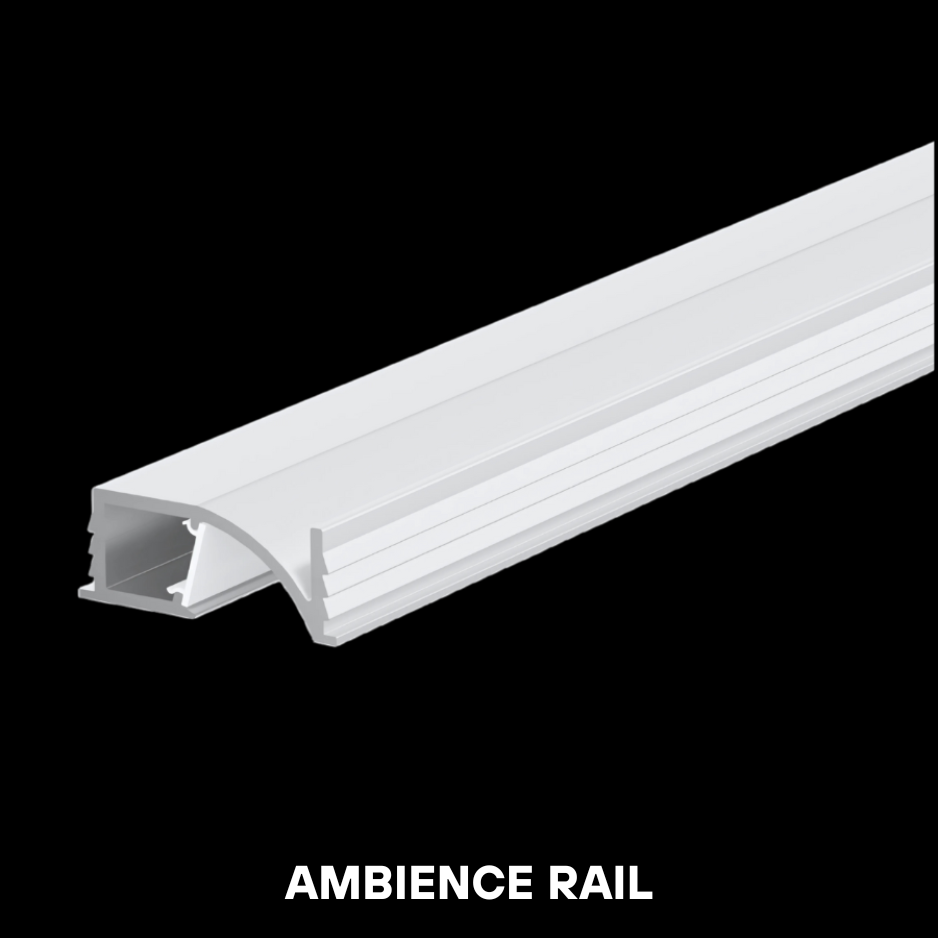

The AMBIENCE RAIL 23MM is a compact, recessed LED aluminum profile designed for sleek, directional lighting in modern architectural applications. With its curved inner design, it allows enhanced light diffusion while maintaining a low-profile structure, making it ideal for ambient, indirect, or accent lighting.
Key Features:
-
Recessed Curved Design:
A low-depth profile with a unique curved housing that improves light distribution while maintaining a clean, flush-mount finish.
-
Easy Adhesive Installation:
No screws or complicated fittings—simply apply adhesive to recess the profile into place, ensuring fast and clean installation.
-
Versatile Diffuser Options:
Supports black, clear, and frosted diffusers for varying light effects and aesthetics—from high transparency to soft diffusion or sleek blackout looks.
-
Precise Dimensions:
-
Beam Angle:
Delivers a 120° light spread, perfect for even illumination in task and ambient settings.
-
LED Strip Compatibility:
Designed to fit 5mm wide LED strips, making it a great choice for narrow, linear lighting projects.
-
Standard Length:
Available in 3000mm (3 meters), ideal for continuous or seamless lighting runs.
Technical Specifications:
-
Cutout Width Requirement: >23mm
-
Material: Anodized aluminum
-
Mounting Method: Recessed with adhesive
-
Diffuser Options: Black, Clear, Frosted
-
LED Width Support: Up to 5mm
-
Beam Angle: 120°
-
Profile Length: 3000mm

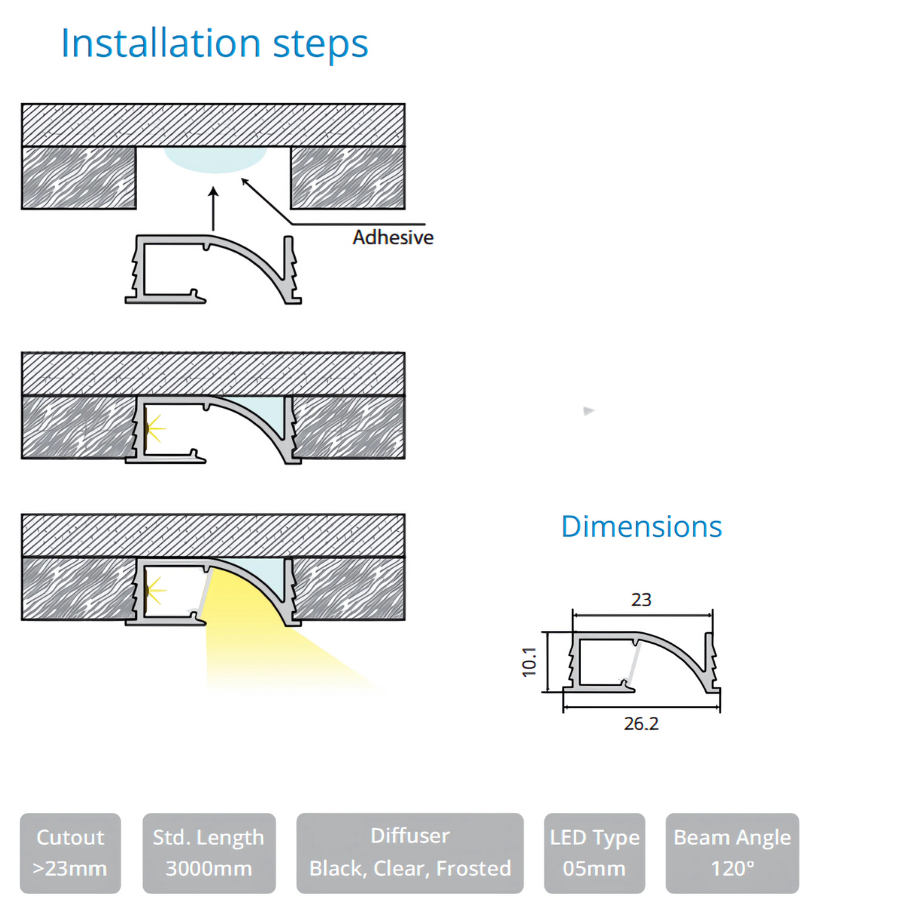

Installation Steps (as shown in the image):
-
Apply Adhesive:
Attach adhesive to the profile and insert it into the recessed cutout.
-
Fix and Insert Diffuser:
Position the LED strip and snap in the desired diffuser.
-
Illuminate:
Power the LED to achieve a smooth and elegant lighting effect.
Ideal Applications:
-
Cove lighting
-
Display shelves and cabinetry
-
Indirect wall lighting
-
Residential ceiling lines and grooves
-
Commercial accent lighting
