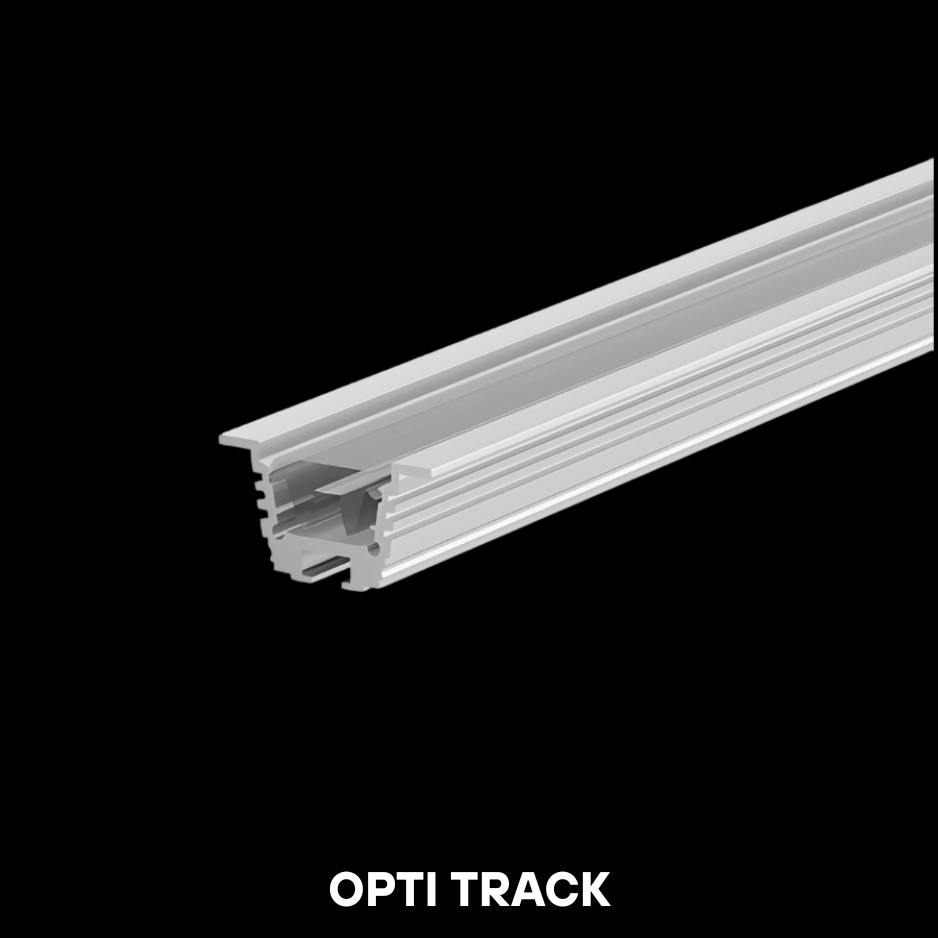

The OPTI TRACK 22MM is a recessed aluminum LED profile engineered for ceiling and wall integrations where refined aesthetics meet performance. Designed for >22mm cutouts, this profile provides a focused 30° beam using an optical diffuser lens, ensuring precise and visually comfortable lighting.

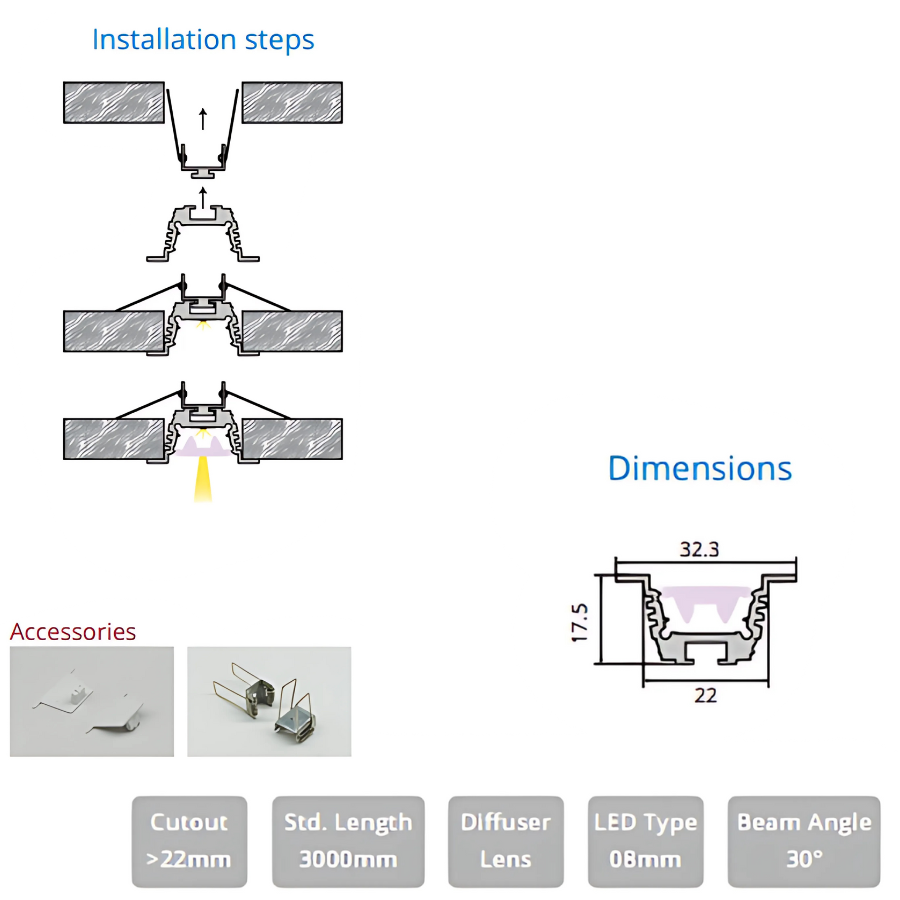

Installation Steps:
-
Prepare a ceiling cutout wider than 22mm.
-
Insert and fix the mounting brackets securely.
-
Snap the aluminum profile into the mounting system.
-
Install the 8mm LED strip and place the lens cover for optimal diffusion.
Dimensions:
-
Width: 32.3 mm
-
Height: 17.5 mm
-
Cutout Width: >22 mm
Specifications:
-
Standard Length: 3000 mm
-
Diffuser Type: Precision Optical Lens
-
LED Compatibility: 08 mm LED Strip
-
Beam Angle: 30°
-
Material: Anodized aluminum for thermal management
Included Accessories:
-
Mounting clips
-
Retention springs
-
End caps
Applications:
-
Recessed ceiling or drywall lighting
-
Retail & hospitality ambient lighting
-
Hallways, galleries, and feature walls
-
Task-focused architectural detailing
