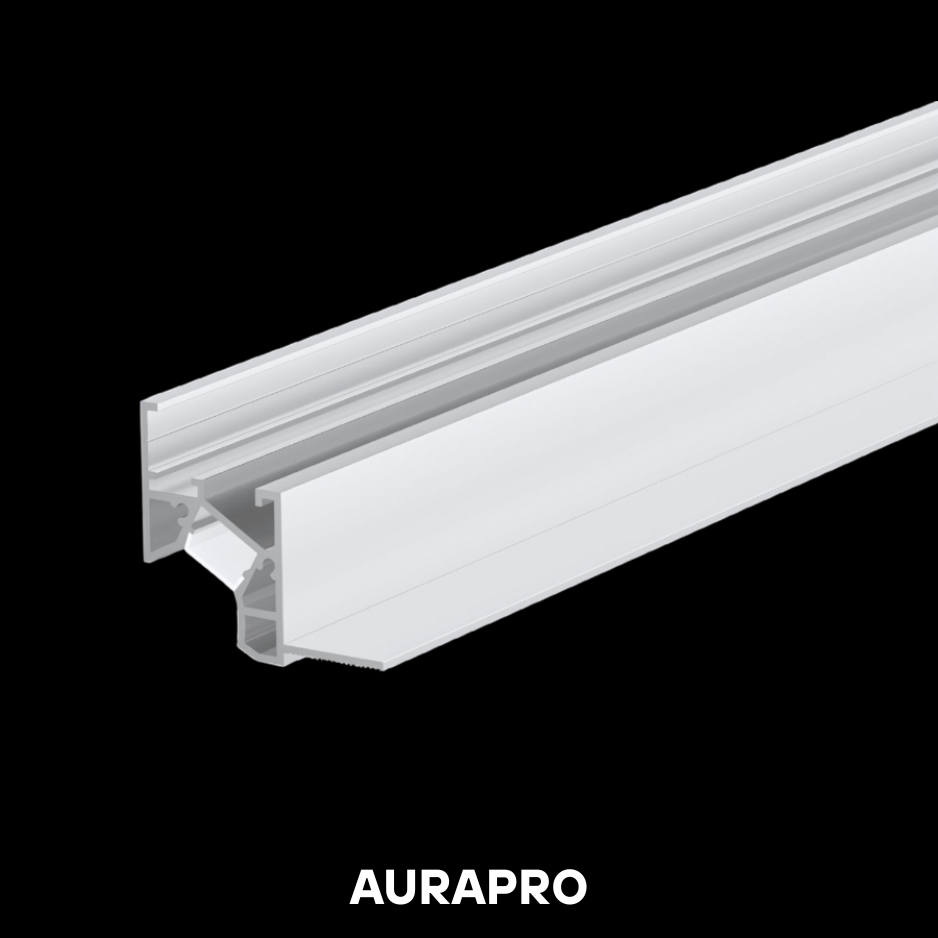

AURAPRO 27.5MM

The AURAPRO 27.5MM is a premium recessed LED profile designed for vertical wall-grazing or cove lighting applications. Engineered with an angled internal chamber and wide body, it delivers a striking and uniform light wash effect on walls or ceilings, hidden neatly within gypsum or PoP structures.

Product Specifications:

• Cutout Requirement: >27.5 mm

• Profile Dimensions:

  • Width: 48.4 mm

  • Height: 42 mm

  • Depth (inner housing): 28.4 mm

• Standard Length: 3600 mm

• LED Strip Compatibility: Up to 10 mm wide

• Beam Angle: 120°

• Diffuser Options:

  • Black

  • Clear

  • Frosted

  • Milky

Key Features:

• Angular Light Throw – Designed to direct light at an angle onto the adjacent wall, making it ideal for vertical accent or ambient lighting.

• Concealed Integration – Flushes seamlessly with false ceiling or wall finishes for a minimalist architectural appearance.

• Generous Depth – Accommodates larger or high-intensity LED strips with enhanced heat dissipation.

• Multiple Diffuser Options – Customize your lighting finish from crystal clear to soft diffused glow.

• Precision Cutout Fit – Designed for exact integration into 27.5mm+ ceiling/wall cutouts.

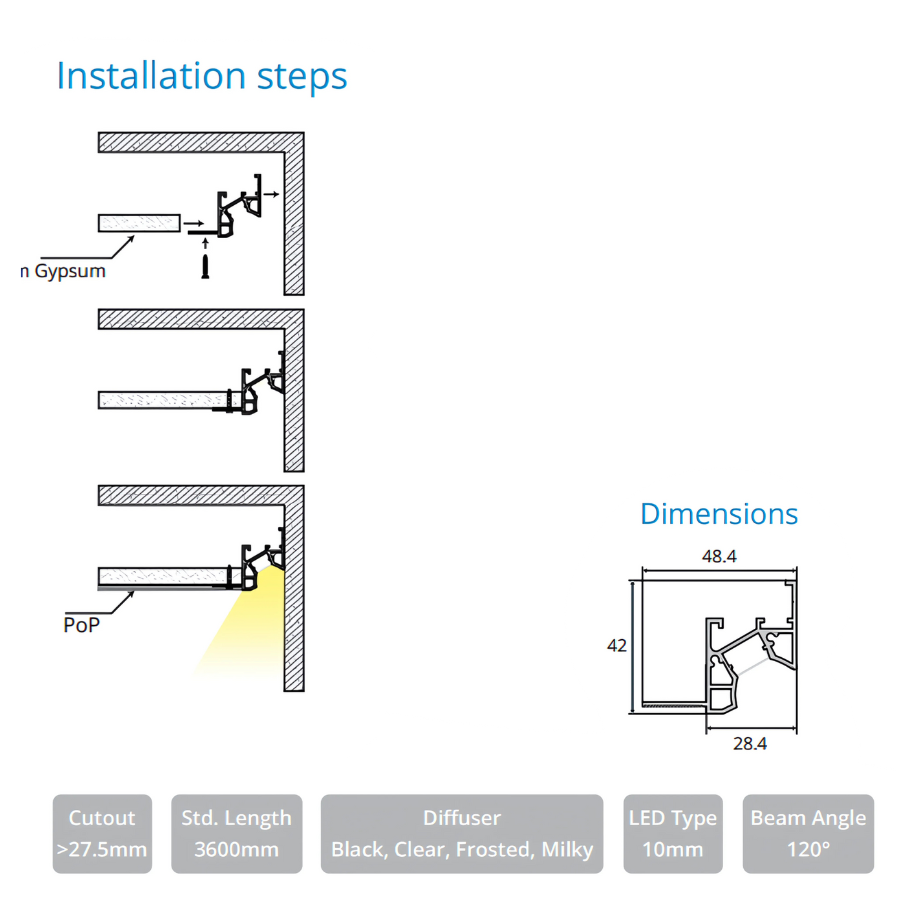

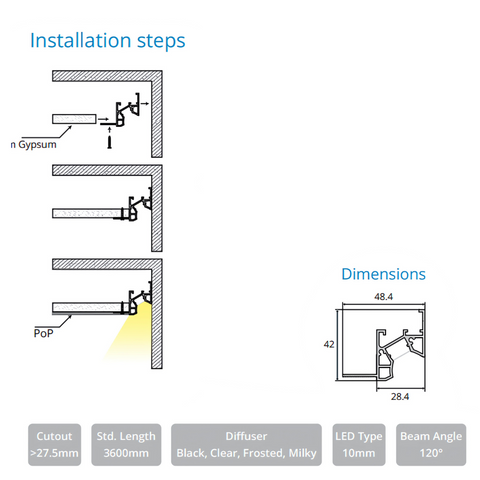

Installation Steps (as illustrated):

1. Initial Mounting – Secure the profile within the gypsum/PoP frame.

2. Insert Gypsum Board – Slot the gypsum panel into place as per the profile alignment.

3. Finishing with PoP – Apply plaster to conceal edges and blend the profile flush with the structure.

4. Lighting Output – Achieves a clean indirect light effect washing down the wall.

Applications:

• Vertical wall wash lighting

• Cove and indirect architectural lighting

• False ceiling edge detailing

• Luxury residential, hospitality, and commercial interiors

• Hallways, lobbies, and modern retail spaces
