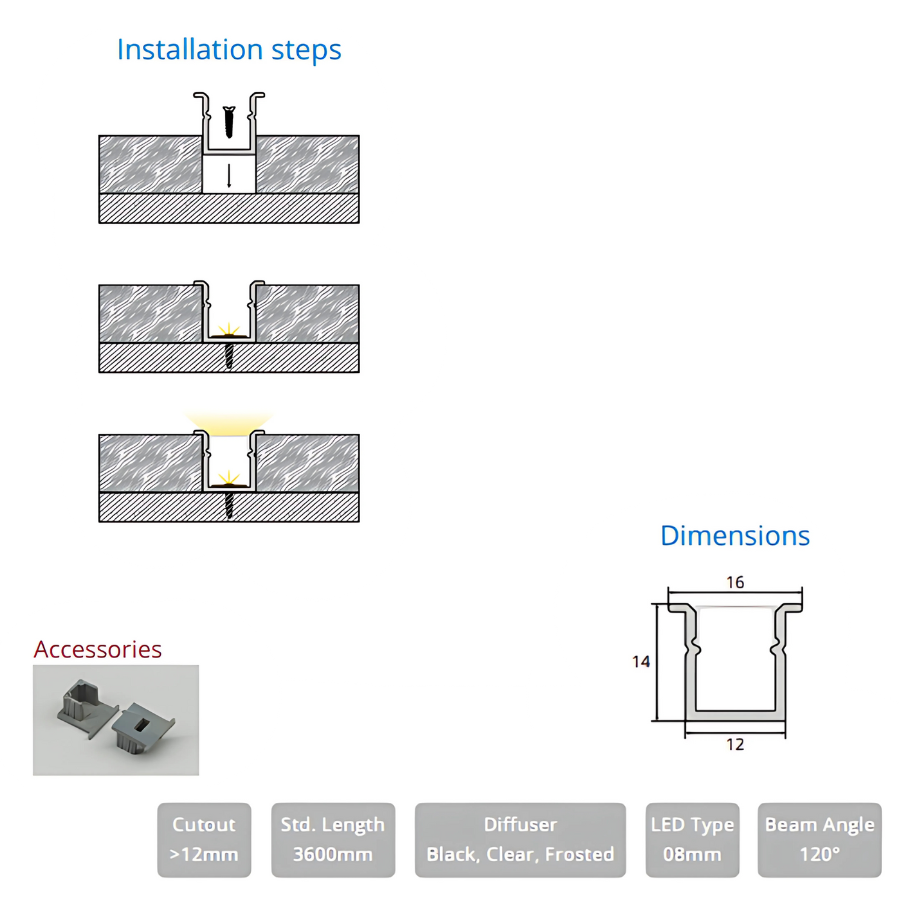

Installation Steps: The top section illustrates a straightforward recessed installation process. The U-shaped profile, with a slightly flared top lip, is designed to be inserted into a pre-cut groove in a surface. The diagram shows it being pushed into the cutout, secured (likely with screws or adhesive as implied by similar profiles), and then the light emitting upwards, indicating a flush, integrated lighting solution.
Dimensions: A cross-sectional diagram provides the measurements: 14mm in height, 12mm in width at the base, and 16mm in width at the top lip. These dimensions suggest a compact yet robust profile, capable of housing a slightly wider LED strip than some ultra-slim options.
Cutout Requirement: The "Cutout >12mm" specification indicates the minimum width of the groove needed for installation, corresponding to the base width of the profile.
Standard Length: It comes in a "Std. Length 3600mm" (3.6 meters), which is a longer standard length than typical, allowing for fewer joints over extended runs and a more seamless appearance.
Diffuser Options: Available diffusers include "Black, Clear, Frosted," offering versatility in light diffusion and aesthetic. The "Black" option is notable for creating a dark, discreet line when off, and a distinct luminous line when on.
LED Type: Designed for "LED Type 08mm" (likely referring to the width or type of LED strip it accommodates), which is slightly wider than the 5mm type seen in some other profiles.
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: An image shows small clips, which are likely mounting clips for securing the profile within the cutout.
Overall Impression:

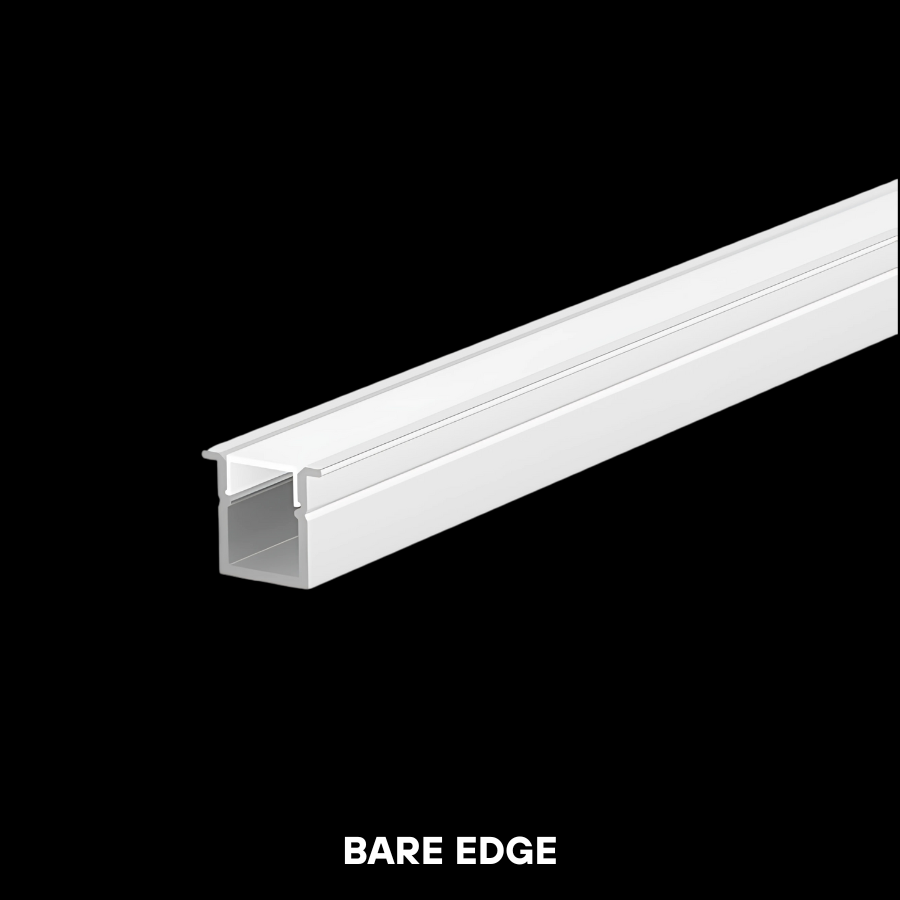

The "BARE EDGE" is a versatile and compact recessed linear lighting profile. Its design, allowing for flush integration, combined with the multiple diffuser options and a longer standard length, makes it suitable for creating continuous, seamless lines of wide-angle light in various architectural and interior design applications. The ability to accommodate an 8mm LED type and its slightly larger dimensions compared to ultra-slim profiles suggest it can deliver good light output while maintaining a discreet, "bare edge" aesthetic.
