BARREL 7W–30W Surface Downlight
Tax excluded. Shipping calculated at checkout
BARREL · 7W / 12W / 20W / 30W
BARREL is a cylindrical surface-mounted LED downlight with a 36° beam and CRI 80+. Choose 7W, 12W, 20W or 30W in a white or black body, with fixed-white True driver options across all four wattages. RF tunable white and Alexa/Tuya smart options are also offered for 12W, 20W and 30W.

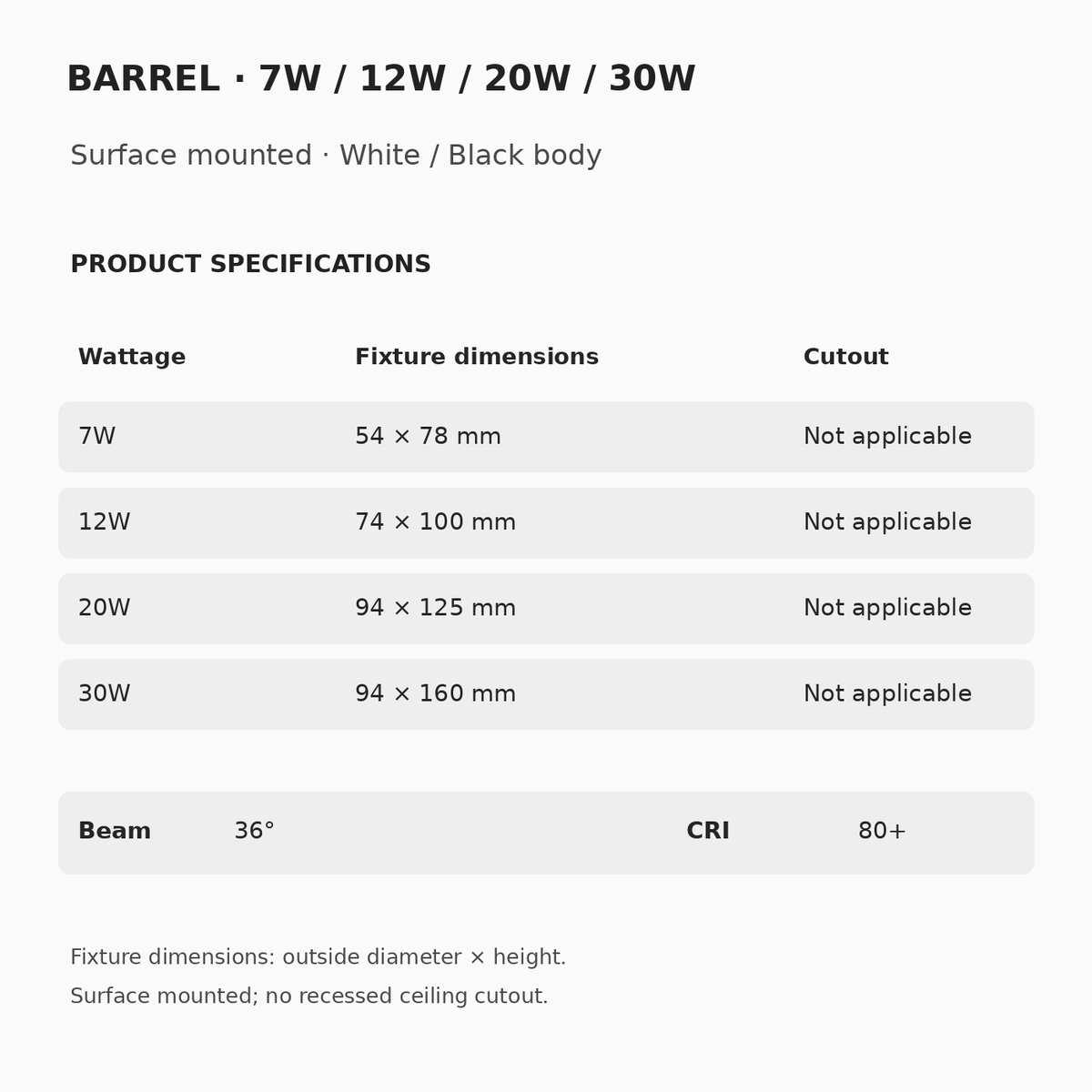

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 7W | 54 × 78 mm | Not applicable |
| 12W | 74 × 100 mm | Not applicable |
| 20W | 94 × 125 mm | Not applicable |
| 30W | 94 × 160 mm | Not applicable |
Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.
Surface mounting; no recessed ceiling cutout applies. Dimensions are outside diameter × fixture height. Confirm driver accommodation and installation clearance with your installer.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

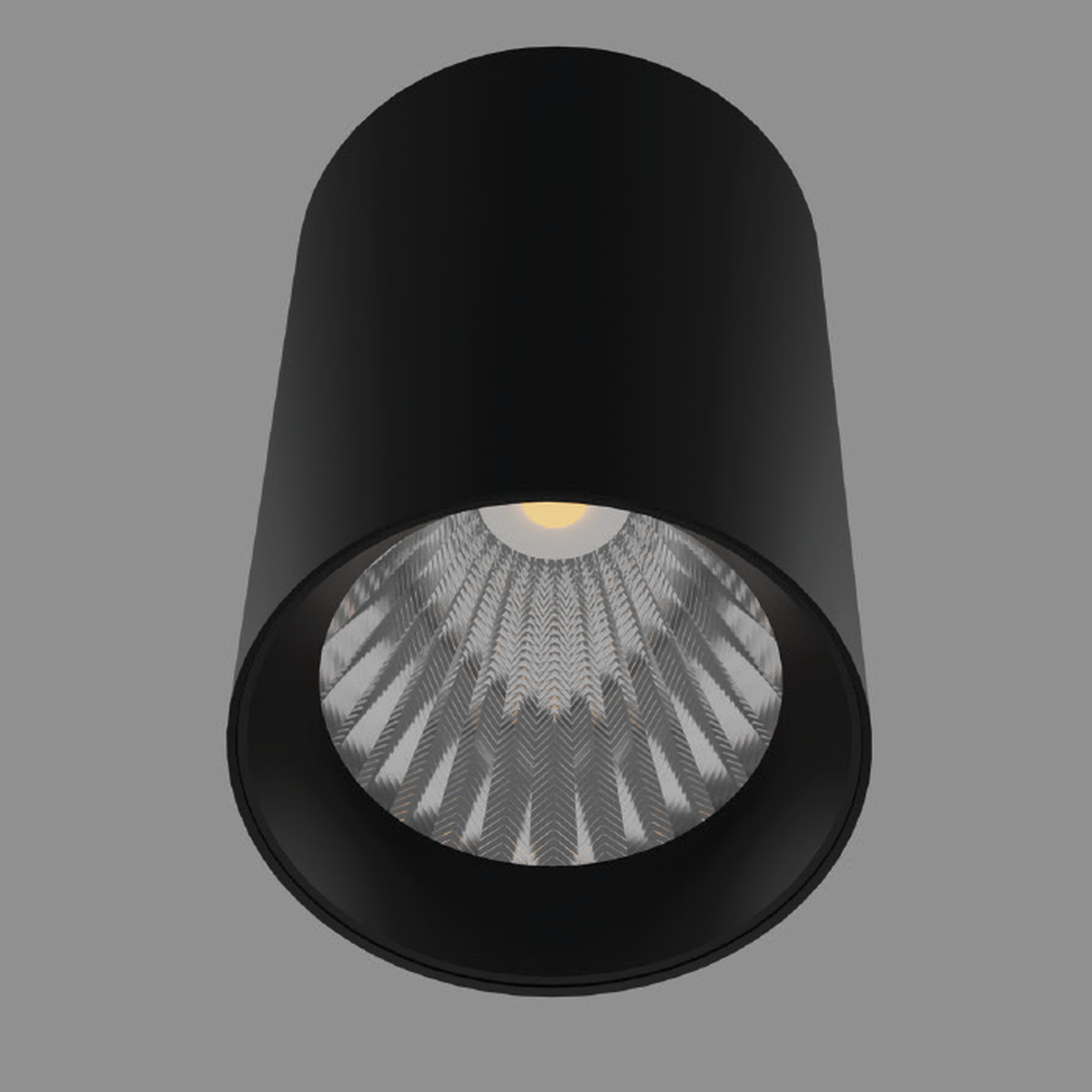

The product image is the black-body BARREL reference. Its exact wattage is not identified. A white-body reference image is not available, so the gallery image does not show the selected white finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 7W, 12W, 20W, 30W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 12W, 20W, 30W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 12W, 20W, 30W.
This listing covers the True-driver, RF and Alexa/Tuya configurations shown. Other-brand driver configurations are outside this listing.
Configuration prices excluding GST
7W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,694.00 |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,068.00 |
| CCT-RF remote | ₹3,865.40 |
| Alexa/Tuya smart | ₹3,865.40 |
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,096.50 |
| CCT-RF remote | ₹5,991.70 |
| Alexa/Tuya smart | ₹5,991.70 |
30W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,729.00 |
| CCT-RF remote | ₹6,624.20 |
| Alexa/Tuya smart | ₹6,624.20 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm installation-component and accessory requirements before ordering.
Before you order
GST is additional. Check the selected wattage’s fitting dimensions, mounting surface and wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
