Bespoke Linear 20mm White 15W–30W Track Light
Tax excluded. Shipping calculated at checkout
Bespoke Linear 20mm White
A slim white linear track-light module with a prismatic diffuser, a recessed optic and a wide 120° beam. Choose 15W or 30W for your lighting layout.

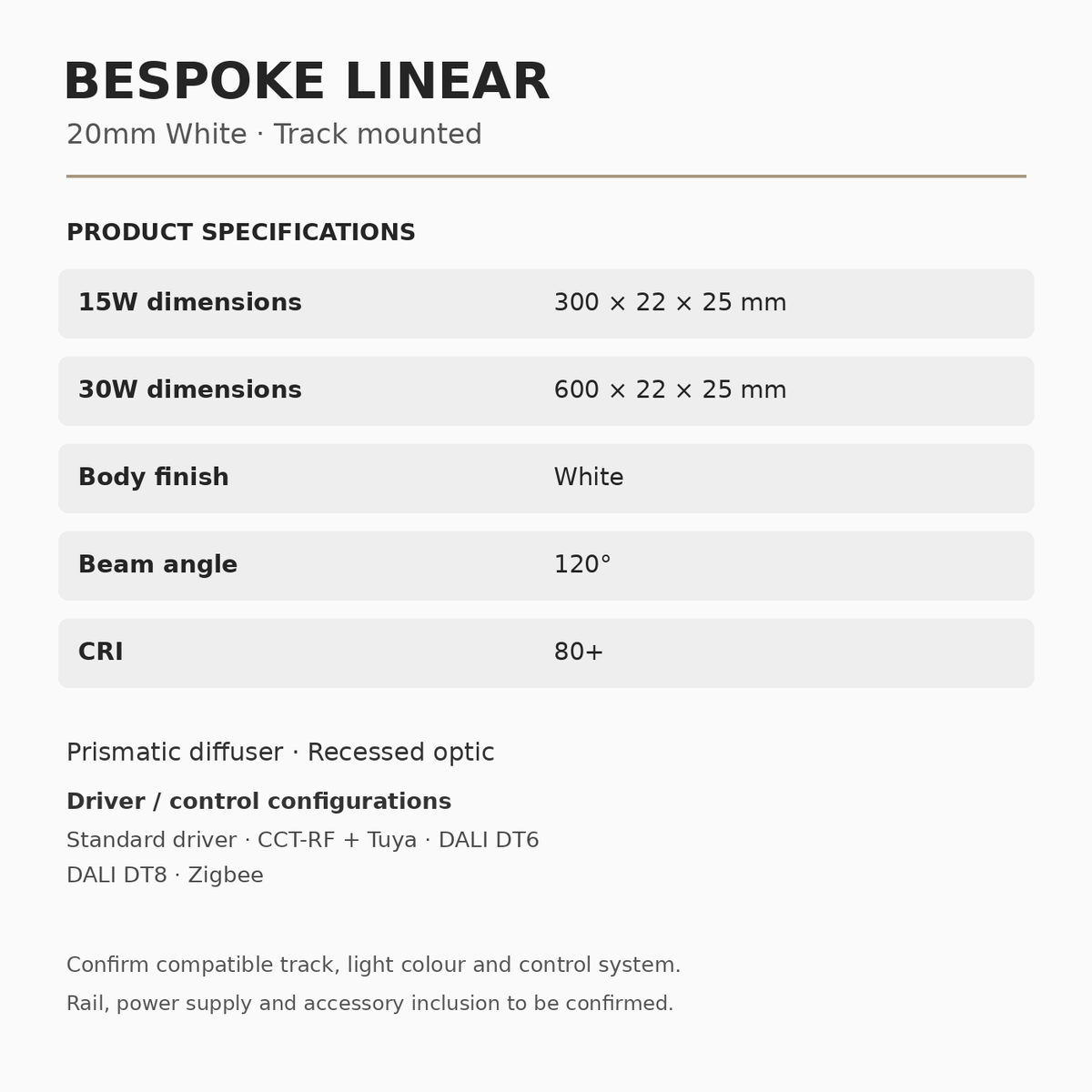

Product specifications
| 15W dimensions | 300 × 22 × 25 mm |
|---|---|
| 30W dimensions | 600 × 22 × 25 mm |
| Body finish | White |
| Beam angle | 120° |
| CRI | 80+ |
| Mounting | Track mounted |
The 20mm model designation identifies the fitting family. Check the stated fixture dimensions and compatible track system before ordering.
Light colour and control
Standard-driver and DALI DT6 options are offered in 3000K, 4000K and 6000K.
- Standard driver: fixed-white configuration.
- CCT-RF + Tuya: combined RF and Tuya control configuration. The numeric colour-temperature tuning range is unconfirmed.
- DALI DT6: for a compatible DALI control system.
- DALI DT8: colour-temperature control for a compatible DALI system. The numeric tuning range is unconfirmed.
- Zigbee: Zigbee control configuration. Confirm colour-temperature functionality and controller compatibility.
Configuration prices excluding GST
15W
| Configuration | Unit price |
|---|---|
| Standard driver | ₹2,035.00 |
| CCT-RF + Tuya | ₹3,550.80 |
| DALI DT6 | ₹5,853.10 |
| DALI DT8 | ₹7,440.40 |
| Zigbee | ₹4,723.40 |
30W
| Configuration | Unit price |
|---|---|
| Standard driver | ₹3,575.00 |
| CCT-RF + Tuya | ₹5,090.80 |
| DALI DT6 | ₹7,393.10 |
| DALI DT8 | ₹8,980.40 |
| Zigbee | ₹6,263.40 |
GST is additional.
Product photograph and installation

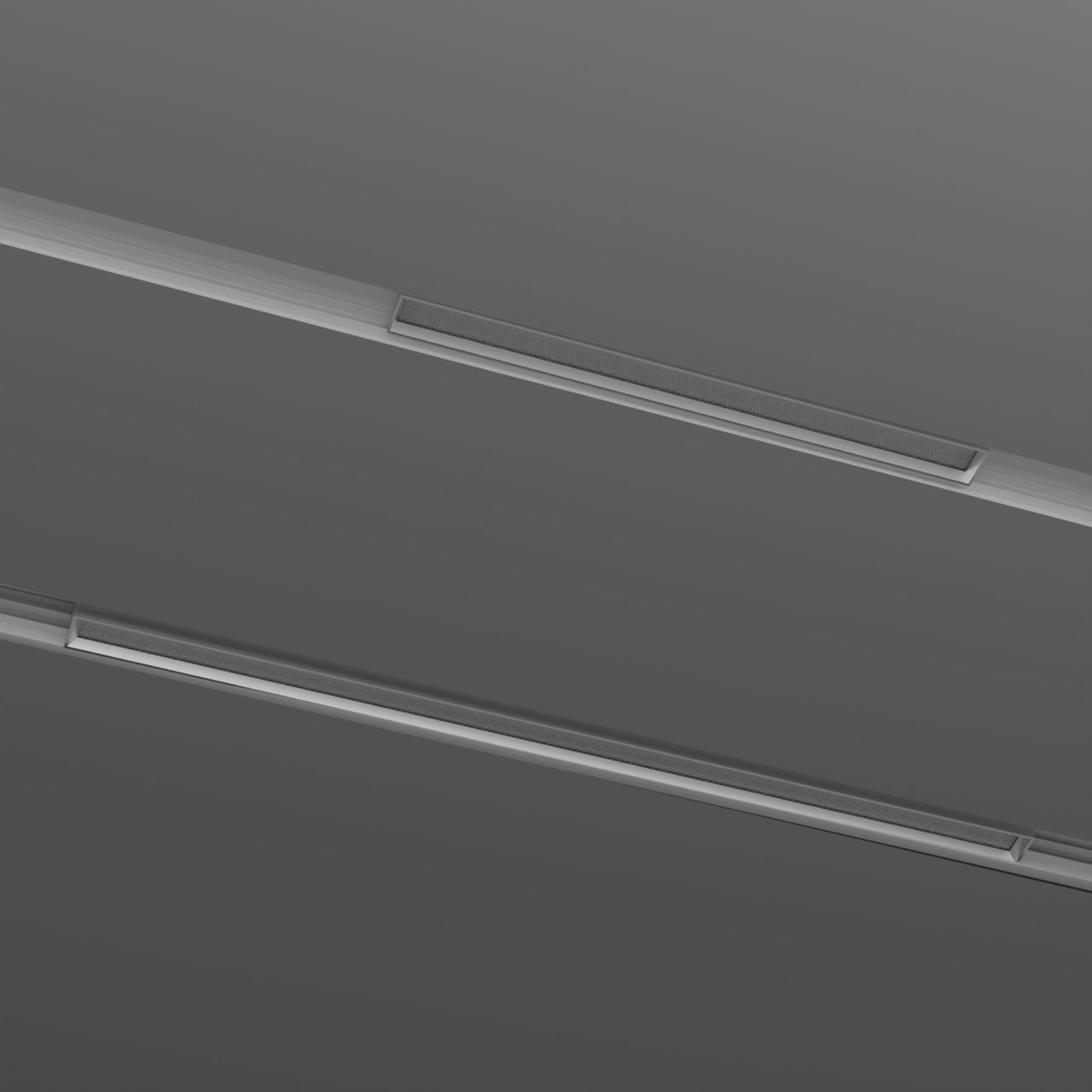

The shared photograph shows the two light sizes fitted to track rails. Each selectable variant is one light and its selected driver/control configuration; the photograph does not indicate a two-light bundle. Track rail, power supply, controllers and accessory inclusion must be confirmed before ordering.
Check track compatibility, installation clearance and the selected control system with your installer. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
