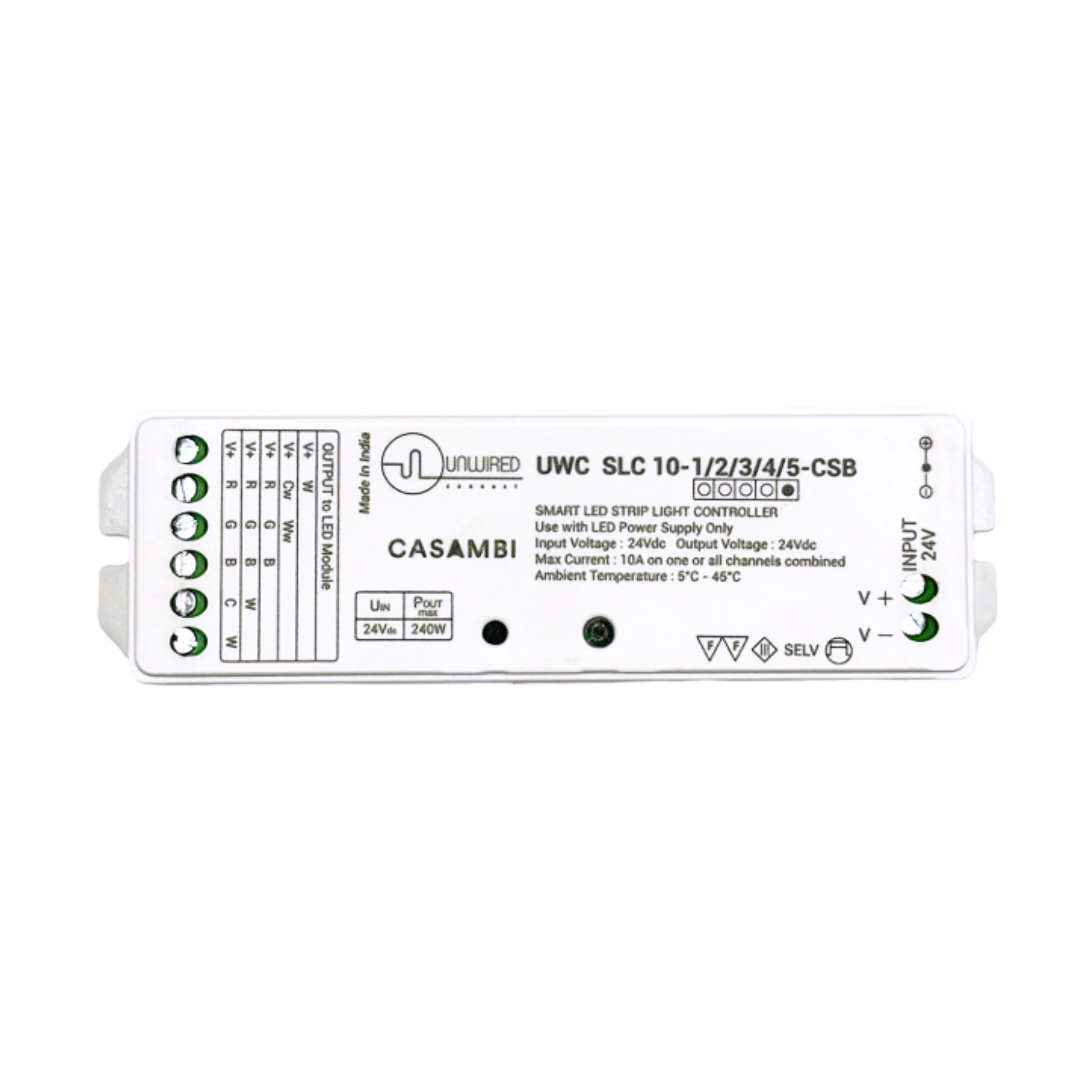

Casambi 10A 5-Channel RGB + Tunable White LED Strip Controller
Price on Request
Tax excluded. Shipping calculated at checkout
Casambi 10A 5-Channel RGB + Tunable White LED Strip Controller
A Casambi-enabled constant-voltage PWM controller for multi-channel LED strip applications including RGB and tunable-white control. The controller provides up to five output channels and is available for 12VDC and 24VDC systems.
Key Features
- Casambi wireless lighting control
- 5-channel PWM output
- Supports RGB plus cool-white / warm-white control
- Maximum combined output current: 10A
- 12VDC and 24VDC versions
- Up to 120W at 12VDC
- Up to 240W at 24VDC
- Configuration through the Casambi app
Technical Specifications
| Control Type | Constant-voltage PWM |
| Output Channels | 5 |
| LED Strip Modes | RGB + CW/WW / RGB+CCT |
| Supply Voltage | 12VDC or 24VDC |
| Maximum Output Current | 10A combined |
| Maximum Output Power | 120W @ 12VDC / 240W @ 24VDC |
| Operating Temperature | 5°C to 45°C |
| Wireless Platform | Casambi |
Price: Price on Request
