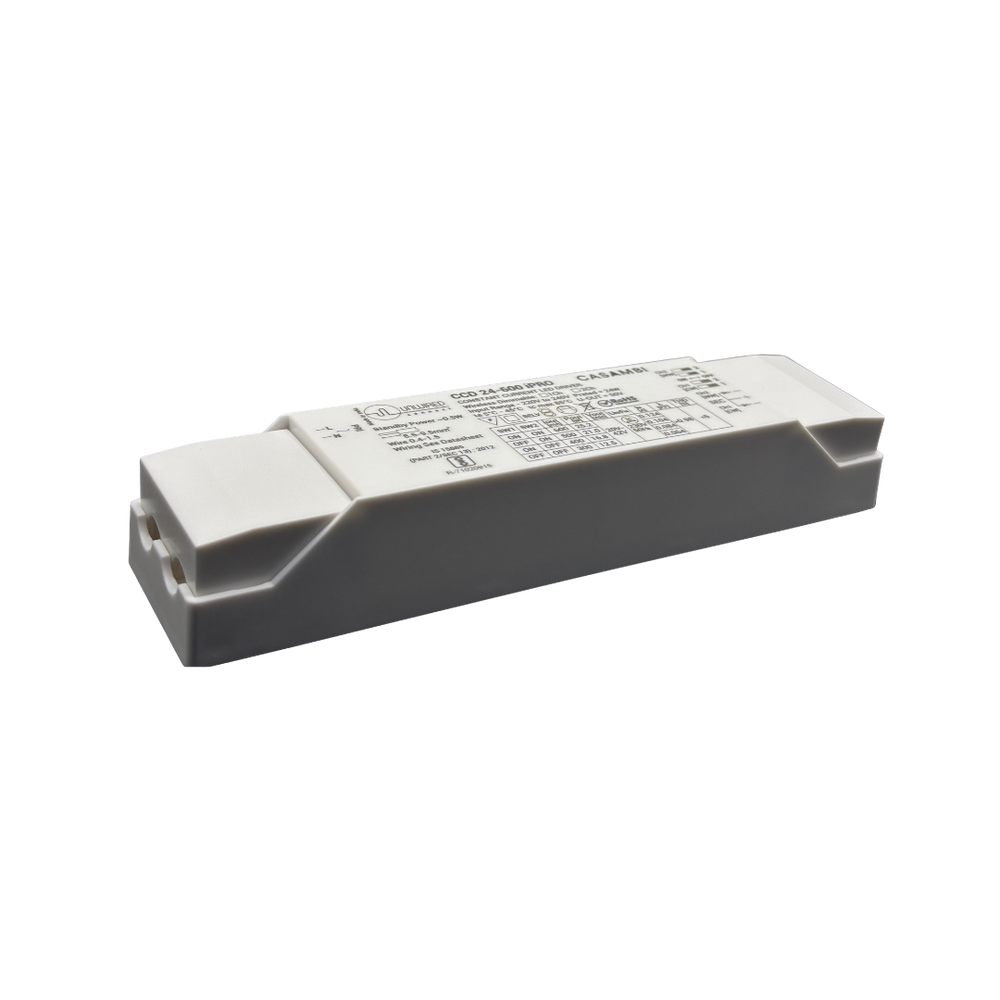

Casambi 24W PRO Constant Current Smart Driver
A professional Casambi-enabled constant-current LED driver for wireless dimming of architectural LED luminaires. The driver is available in 1-channel and 2-channel versions and provides selectable current settings for flexible luminaire matching.
Key Features
- Casambi wireless lighting control
- Up to 24W constant-current output
- 1-channel and 2-channel versions
- Selectable 300mA, 400mA, 500mA or 600mA output current
- 20–42VDC output range
- Deep dimming from 0.1% to 100%
- Power factor >0.98 at 230VAC
- Surge immunity >4kV
- Current selection by DIP switch
Technical Specifications
| Output Power | Up to 24W |
| Input Voltage | 180–270VAC, 50Hz |
| Output Voltage | 20–42VDC |
| Selectable Output Current | 300 / 400 / 500 / 600mA |
| Channels | 1CH or 2CH |
| Dimming Range | 0.1%–100% |
| Power Factor | >0.98 @ 230VAC |
| Surge Immunity | >4kV |
| Operating Temperature | 5°C to 45°C |
| Wireless Platform | Casambi |
| Wireless Range | Approx. 15m line-of-sight |
| Dimensions | 146 × 36 × 25 mm |
