COOL PATH 22MM

The COOL PATH 22MM is a wide recessed aluminum LED profile designed for architectural-grade lighting integration. Its broad structure allows for powerful, uniform illumination, ideal for creating visually striking effects in modern interiors.

Key Features:

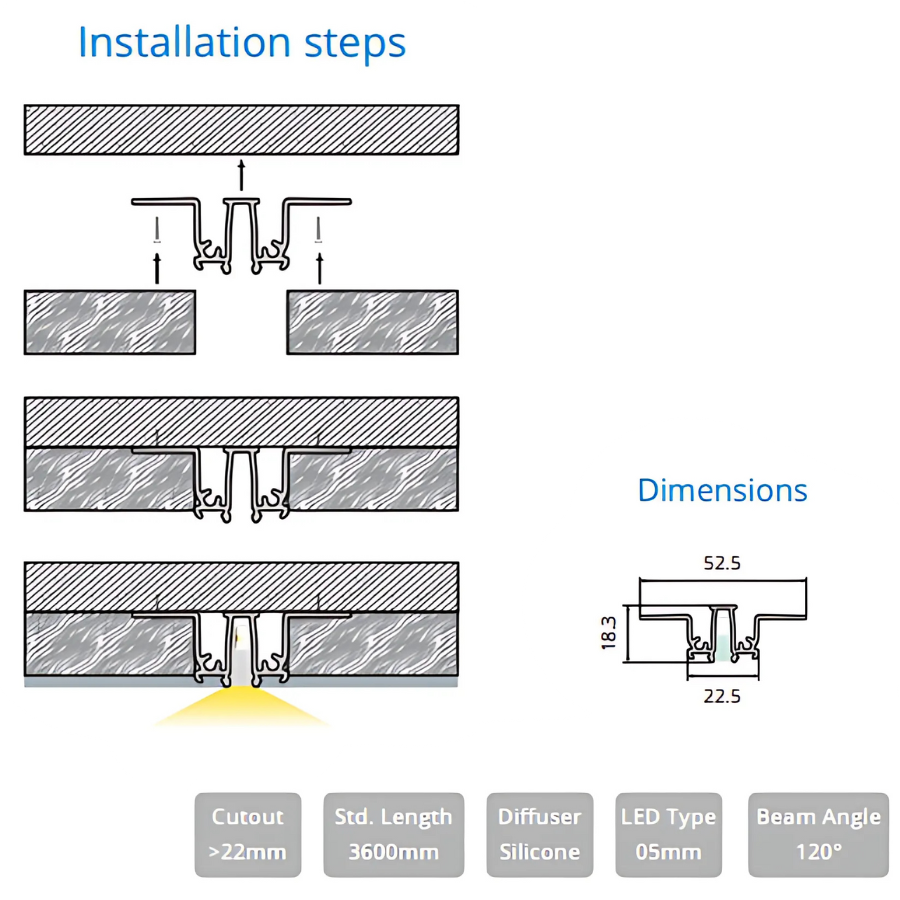

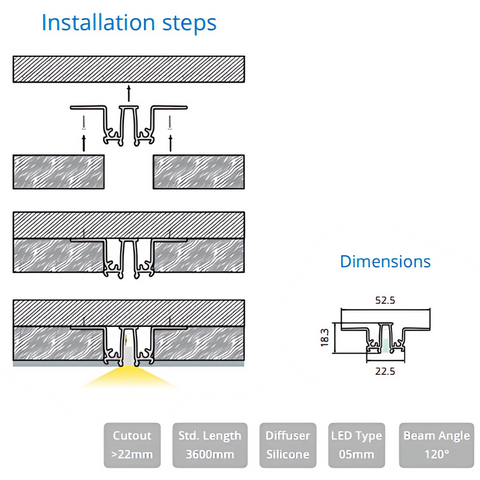

🛠️ Installation Steps (Top Left):

• The profile is installed into a 22mm+ wide cutout using pressure-fit or clip mechanisms (no adhesive needed).

• The diagram shows a flush-finish installation, perfectly integrated between two wooden or plasterboard panels.

• Once installed, the LED emits a smooth downward glow for an elegant finish.

📐 Dimensions (Bottom Right):

• Outer Width: 52.5 mm

• Cutout Width/Base Width: 22.5 mm

• Height: 18.3 mm

• Compatible with panel thickness that allows for recessed depth of 18.3 mm

Technical Specifications:

Applications:

• Ideal for luxury architectural interiors, including:

  • Ceiling coves

  • Wall inlays

  • Cabinet underlighting

  • Hallway accents

  • Retail & hospitality design

This model is perfect for designers and architects seeking a wider light distribution with flush integration and seamless visual flow.
