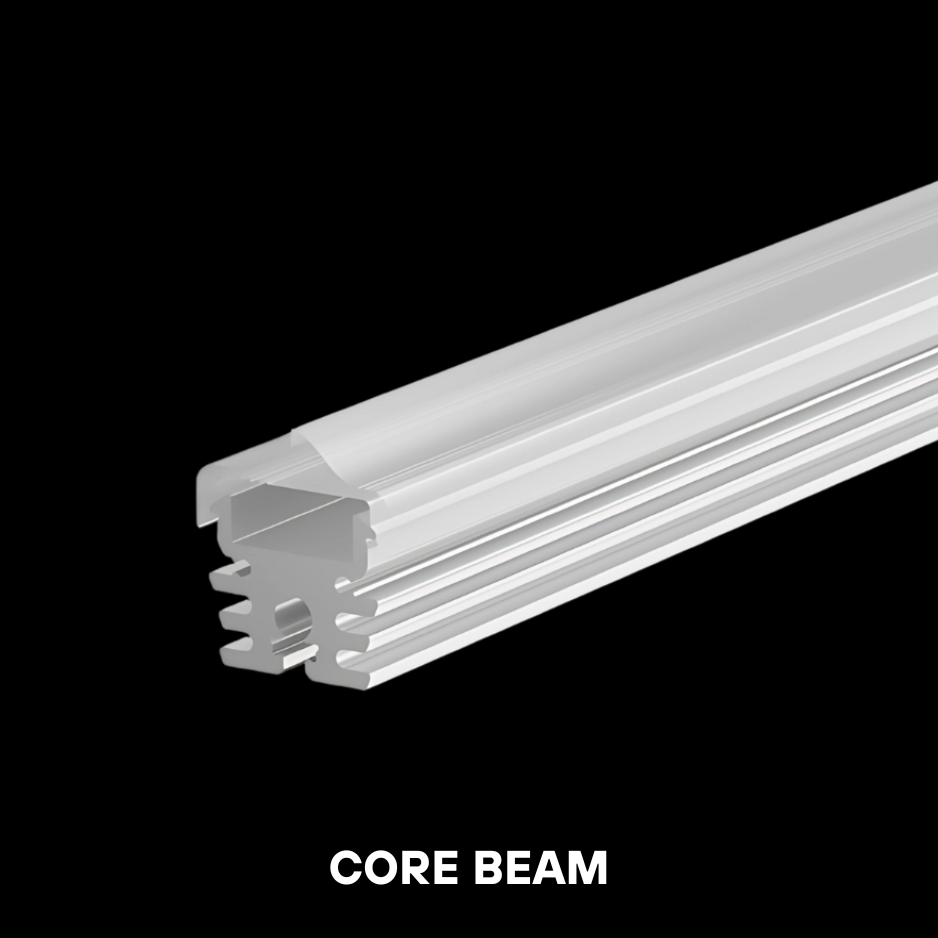

CORE BEAM 3000MM

The CORE BEAM 3000MM is a recessed linear LED aluminum profile designed for clean and modern lighting integration into ceilings or furniture. With an asymmetric beam angle, this profile is ideal for precise directional lighting, offering both visual comfort and design flexibility.

Key Features:

• Recessed Mounting Design:
  Engineered for flush installation into ceilings, walls, or surfaces, delivering a seamless and professional lighting finish.

• Asymmetric Light Distribution:
  Designed to cast light at an angled projection, perfect for task lighting, display shelves, or accent features.

• Durable Construction:
  High-grade aluminum body ensures excellent heat dissipation and longevity for LED strips.

• Diffuser Type:
  Fitted with a lens diffuser for controlled light output and reduced glare.

• Accessories Included:
  Features mounting clips and end caps for easy and secure installation.

Technical Specifications:

• Profile Dimensions:

  • Width: 18mm

  • Height: 15mm

• Standard Length: 3000mm (3 meters)

• Diffuser Option: Lens

• Compatible LED Strip Width: Up to 8mm

• Beam Angle: Asymmetric (for directional lighting)

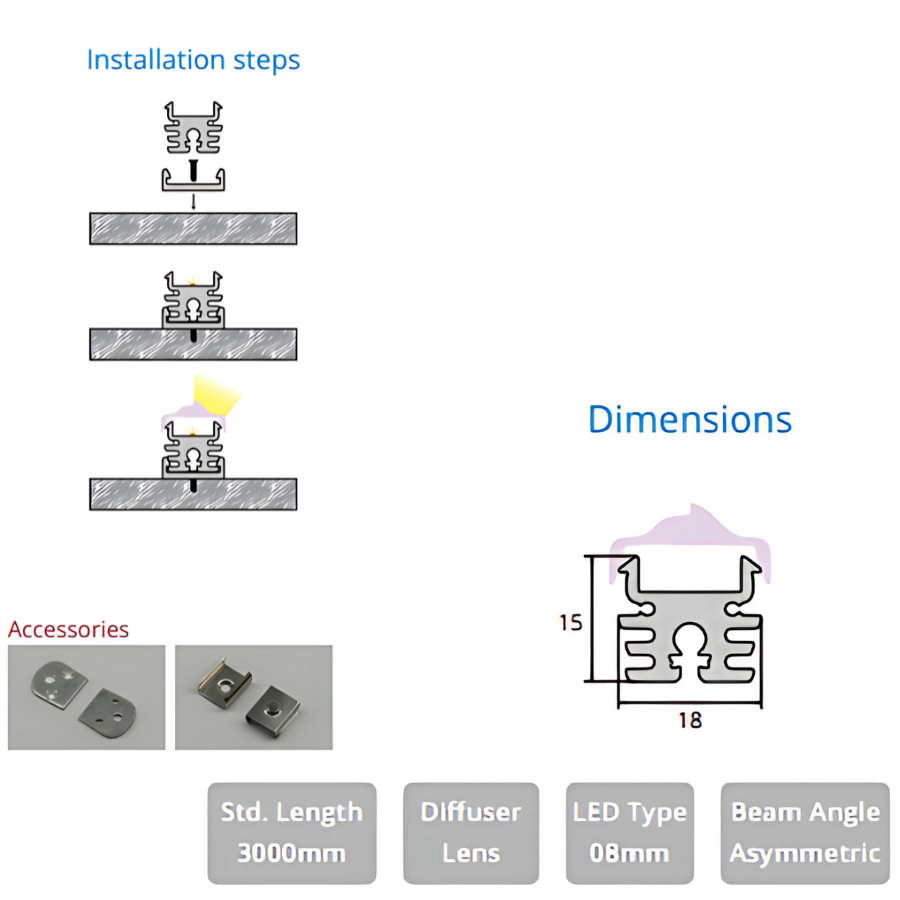

Installation Steps (As Illustrated):

1. Prepare the recessed slot in the ceiling or surface.

2. Insert and fix the profile using the provided mounting clips.

3. Mount the LED strip inside the profile and place the lens diffuser.

4. Power on for a clean, angled light output ideal for precision lighting applications.

Applications:

• Under-cabinet or shelf lighting

• Wall wash lighting

• Retail display illumination

• Kitchen task lighting

• Architectural highlights
