CORE DOUBLE Recessed LED Downlight – 16W & 24W
Tax excluded. Shipping calculated at checkout
CORE DOUBLE 16W (2 × 8W) & 24W (2 × 12W)

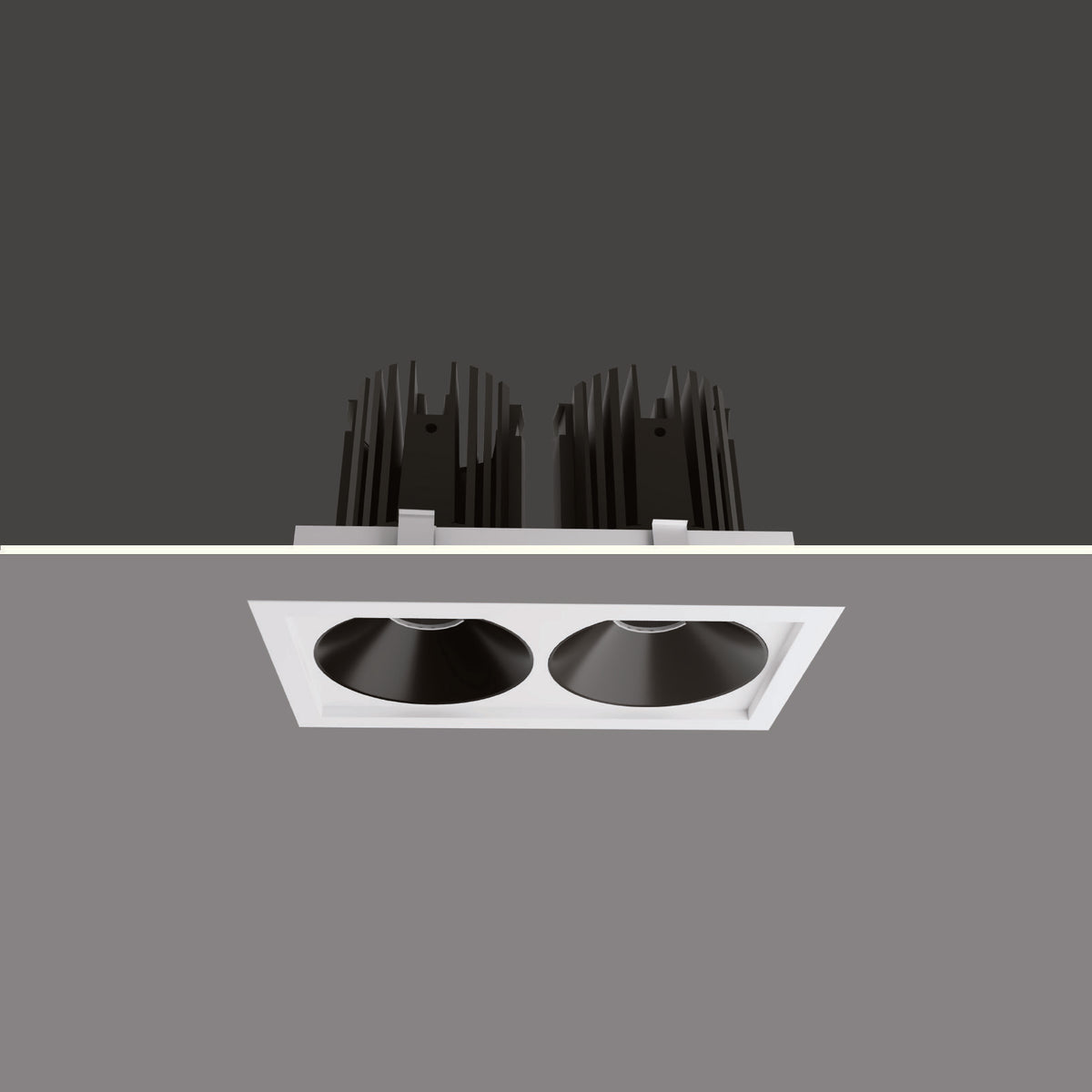

CORE DOUBLE is a twin-head rectangular recessed LED downlight. This listing covers 16W (2 × 8W) and 24W (2 × 12W) with a 95 × 50 mm ceiling cutout. Choose the wattage, body finish, beam angle and control configuration for your installation.

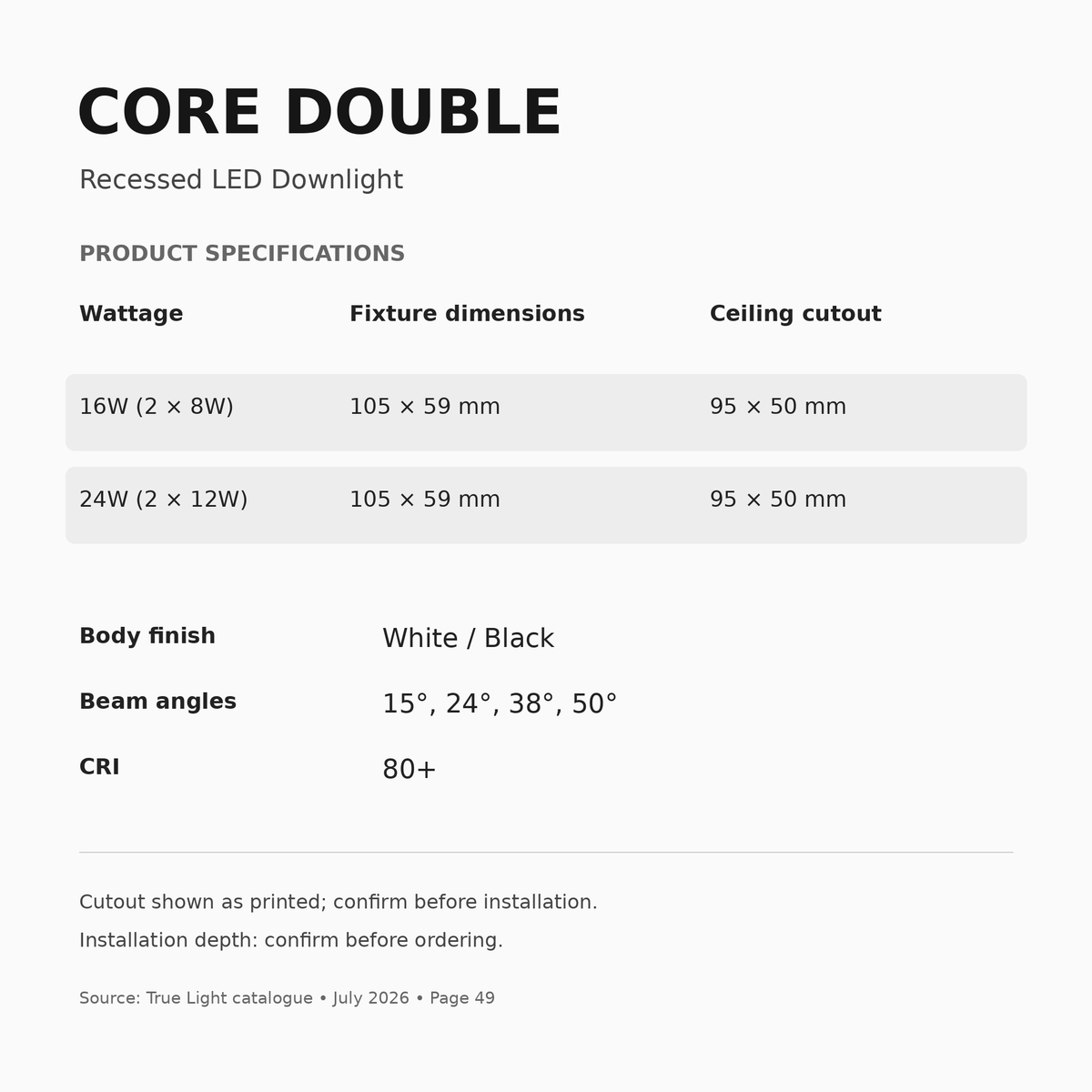

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam options | CRI |
|---|---|---|---|---|
| 16W (2 × 8W) | 105 × 59 mm | 95 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
| 24W (2 × 12W) | 105 × 59 mm | 95 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
The catalogue lists a 95 × 50 mm cutout for both wattages. Installation depth is not specified; confirm required ceiling clearance before ordering.
Body and reflector finish
Body options: White or Black. The product image is a representative catalogue view. Reflector finishes require confirmation; the body-finish selector does not specify a separate reflector finish.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 16W (2 × 8W) | ₹8178.50 | ₹12433.30 | ₹12433.30 | ₹12736.90 | ₹15643.10 |
| 24W (2 × 12W) | ₹9196.00 | ₹13369.40 | ₹13369.40 | ₹13673.00 | ₹16880.60 |
Prices above apply to all four listed beam angles: 15°, 24°, 38° and 50°. Other driver configurations are available on request.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
