CORE SNOOP DOUBLE Zoomable Recessed Spotlight – 16W & 24W
Tax excluded. Shipping calculated at checkout
CORE SNOOP DOUBLE ZOOMABLE
CORE SNOOP DOUBLE ZOOMABLE is a recessed spotlight with two projecting cylindrical heads and telescopic beam-angle adjustment. This listing covers 16W (2 × 8W) and 24W (2 × 12W). Choose your wattage, body finish and light/control configuration.
Telescopic beam-angle adjustment
Adjust the beam angle using the telescopic zoom feature to vary the spread of light. The adjustment is made on the fixture; no separate fixed-beam variant is required. Confirm the available beam-angle range before ordering.

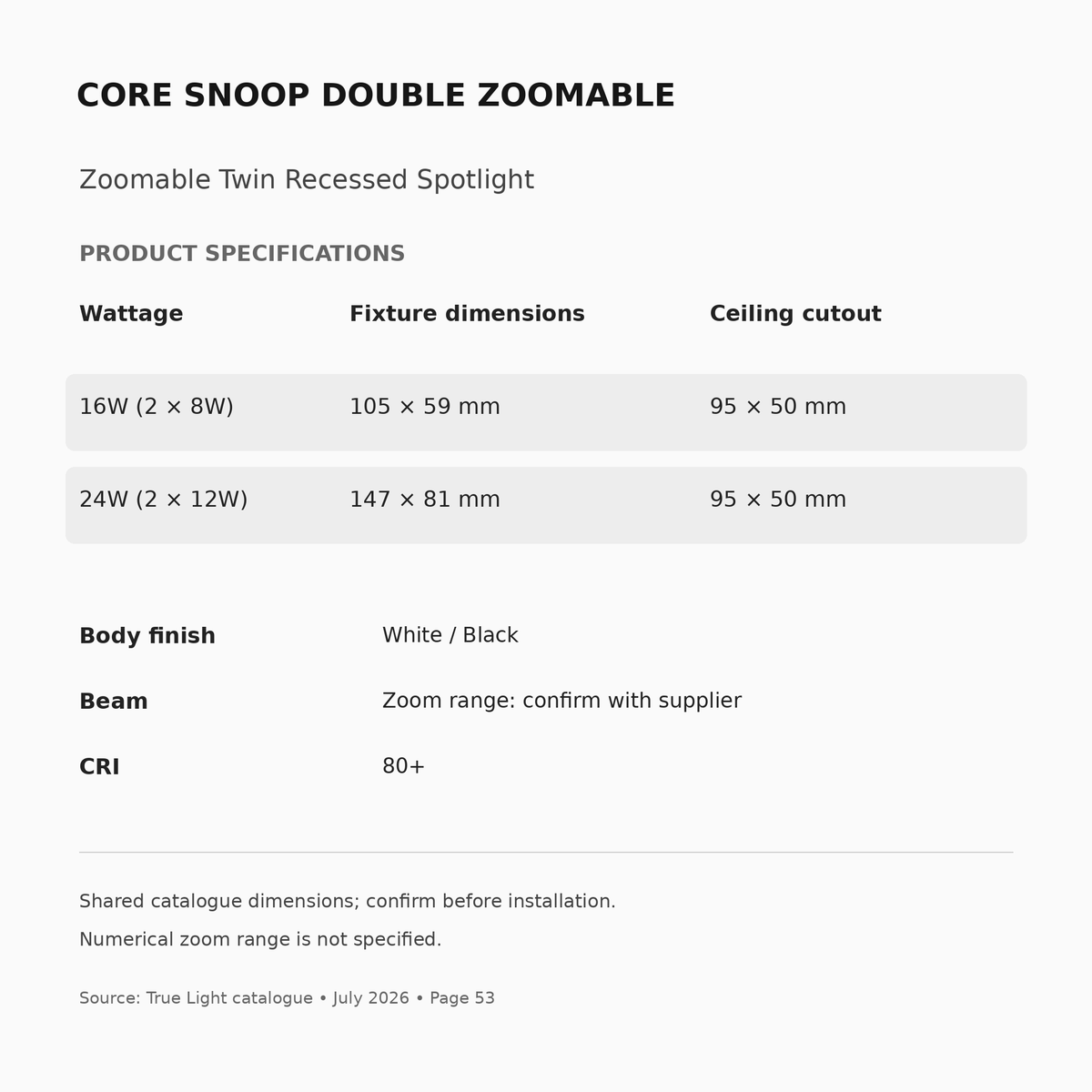

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam | CRI |
|---|---|---|---|---|
| 16W (2 × 8W) | 105 × 59 mm | 95 × 50 mm | Zoom range: confirm with supplier | 80+ |
| 24W (2 × 12W) | 147 × 81 mm | 95 × 50 mm | Zoom range: confirm with supplier | 80+ |
The catalogue lists a 95 × 50 mm cutout for both wattages, despite different fixture dimensions. Confirm the cutout and ceiling clearance before installation. Installation depth is not specified. Dimensions are from the shared standard/zoomable table; confirm for the zoomable model. Numerical zoom range is not specified.
Body and reflector finish

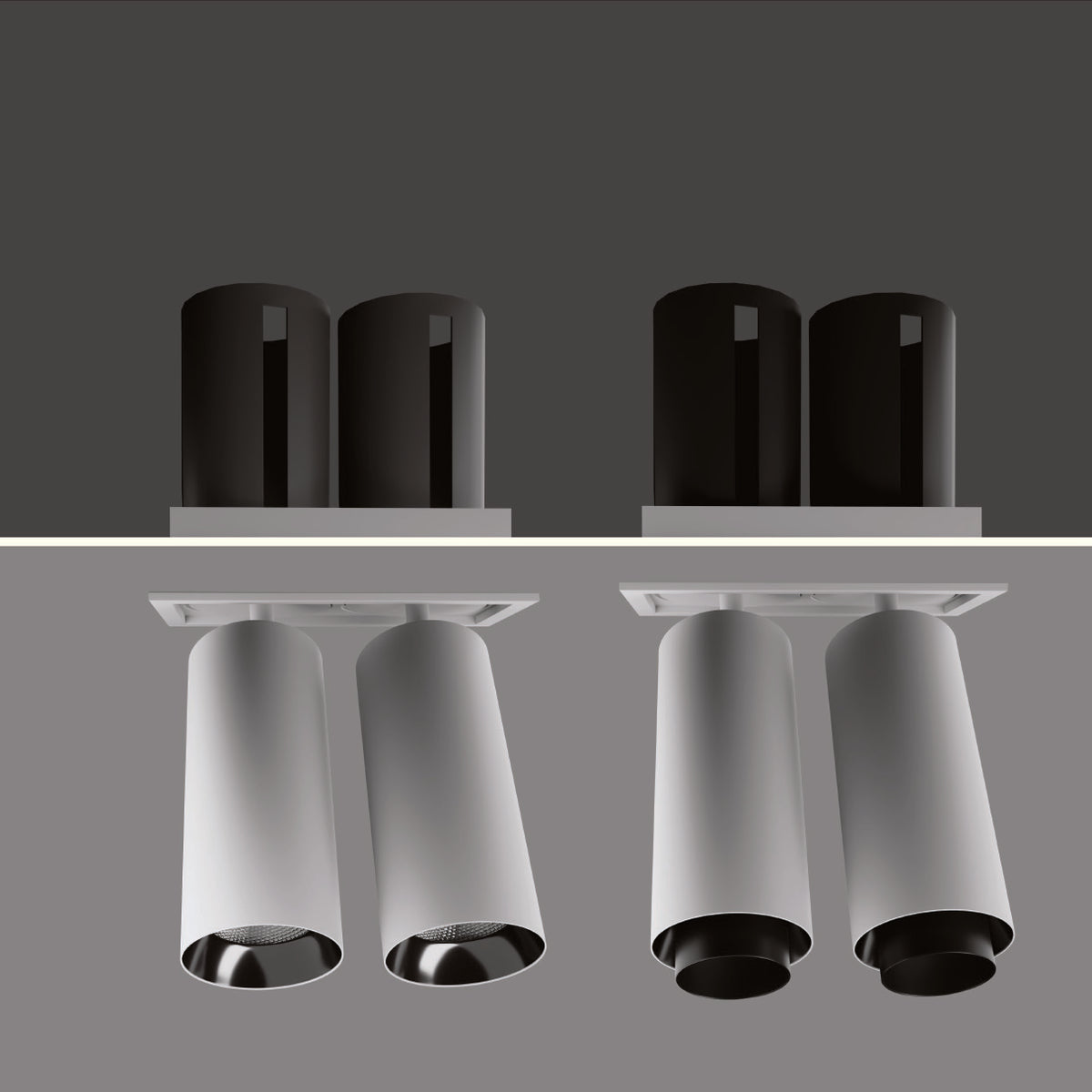

Body options: White or Black. The catalogue image shows both versions: standard on the left and zoomable on the right. It is representative and does not show every body finish. Reflector finishes require confirmation; the body-finish selector does not specify a separate reflector finish.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 16W (2 × 8W) | ₹9196.00 | ₹13450.80 | ₹13450.80 | ₹13754.40 | ₹16660.60 |
| 24W (2 × 12W) | ₹10571.00 | ₹14744.40 | ₹14744.40 | ₹15048.00 | ₹18255.60 |
Prices apply to the zoomable model. Confirm the zoom range before ordering.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
