CORE SPY SQUARE-T Trimless Spotlight – 8W, 12W & 15W
Tax excluded. Shipping calculated at checkout
CORE SPY SQUARE-T
CORE SPY SQUARE-T is a square trimless recessed spotlight with a projecting cylindrical head. This listing covers 8W, 12W, 15W. Choose your wattage, body finish and light/control configuration.

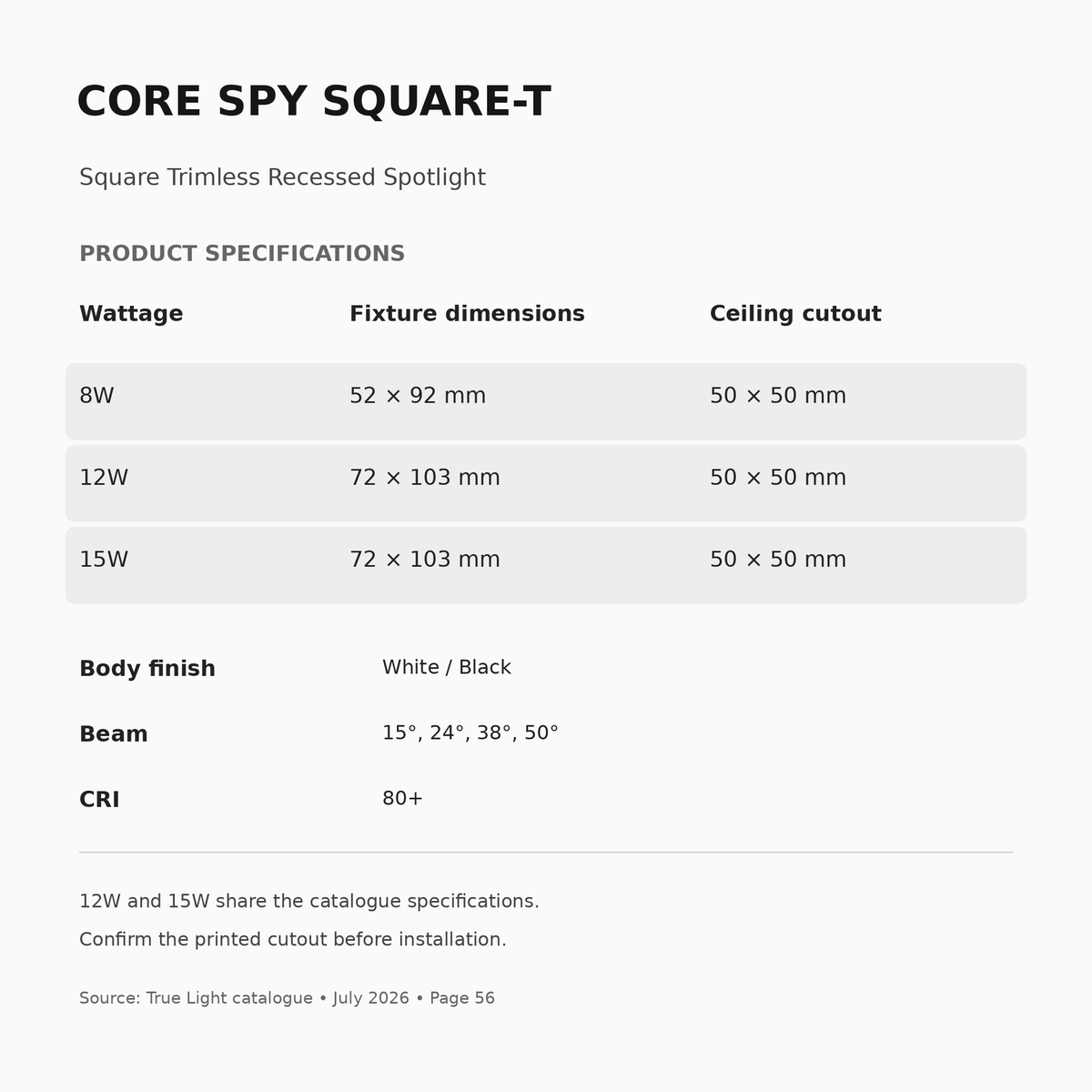

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam | CRI |
|---|---|---|---|---|
| 8W | 52 × 92 mm | 50 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
| 12W | 72 × 103 mm | 50 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
| 15W | 72 × 103 mm | 50 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
The catalogue lists a 50 × 50 mm cutout for 8W and 12–15W, despite different fixture dimensions. Confirm cutout and ceiling clearance before installation. The 12W and 15W models share the printed 12–15W specifications.
Body and reflector finish

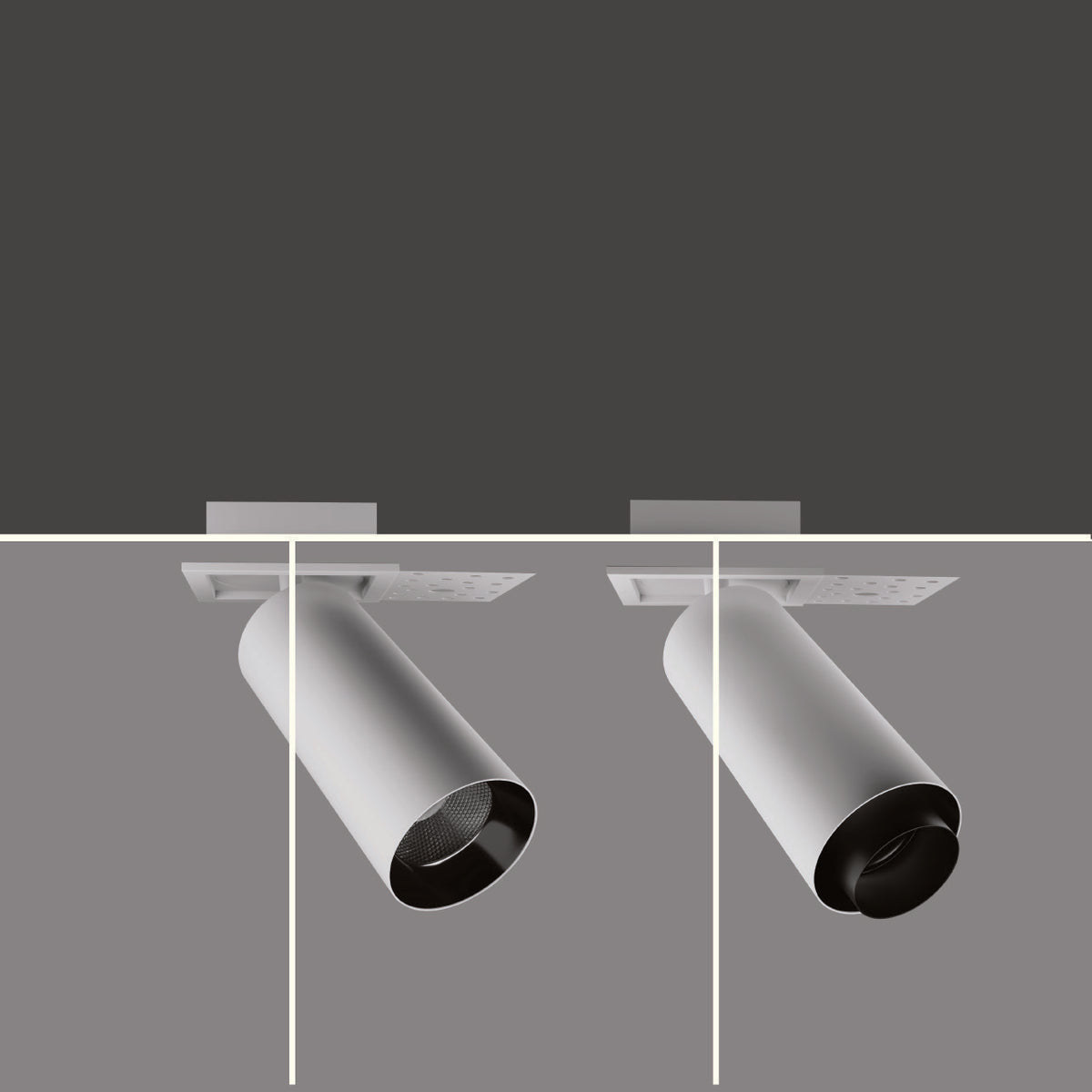

Body options: White or Black. The shared catalogue image shows the standard version on the left and the zoomable version on the right. Reflector finishes require confirmation; the body-finish selector does not specify a separate reflector finish.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 8W | ₹4658.50 | ₹6785.90 | ₹6785.90 | ₹6937.70 | ₹8390.80 |
| 12W | ₹5170.00 | ₹7256.70 | ₹7256.70 | ₹7408.50 | ₹9012.30 |
| 15W | ₹6215.00 | ₹7641.70 | ₹7847.40 | ₹8453.50 | ₹10057.30 |
Prices apply to all four listed beam angles: 15°, 24°, 38° and 50°.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
