CORE SQUARE SNOOP Recessed LED Spotlight – 8W & 10–12W
Tax excluded. Shipping calculated at checkout
CORE SQUARE SNOOP
CORE SQUARE SNOOP is a recessed LED spotlight with a square mounting trim and projecting cylindrical head. This listing covers 8W and 10–12W. Choose your wattage, body finish and light/control configuration.

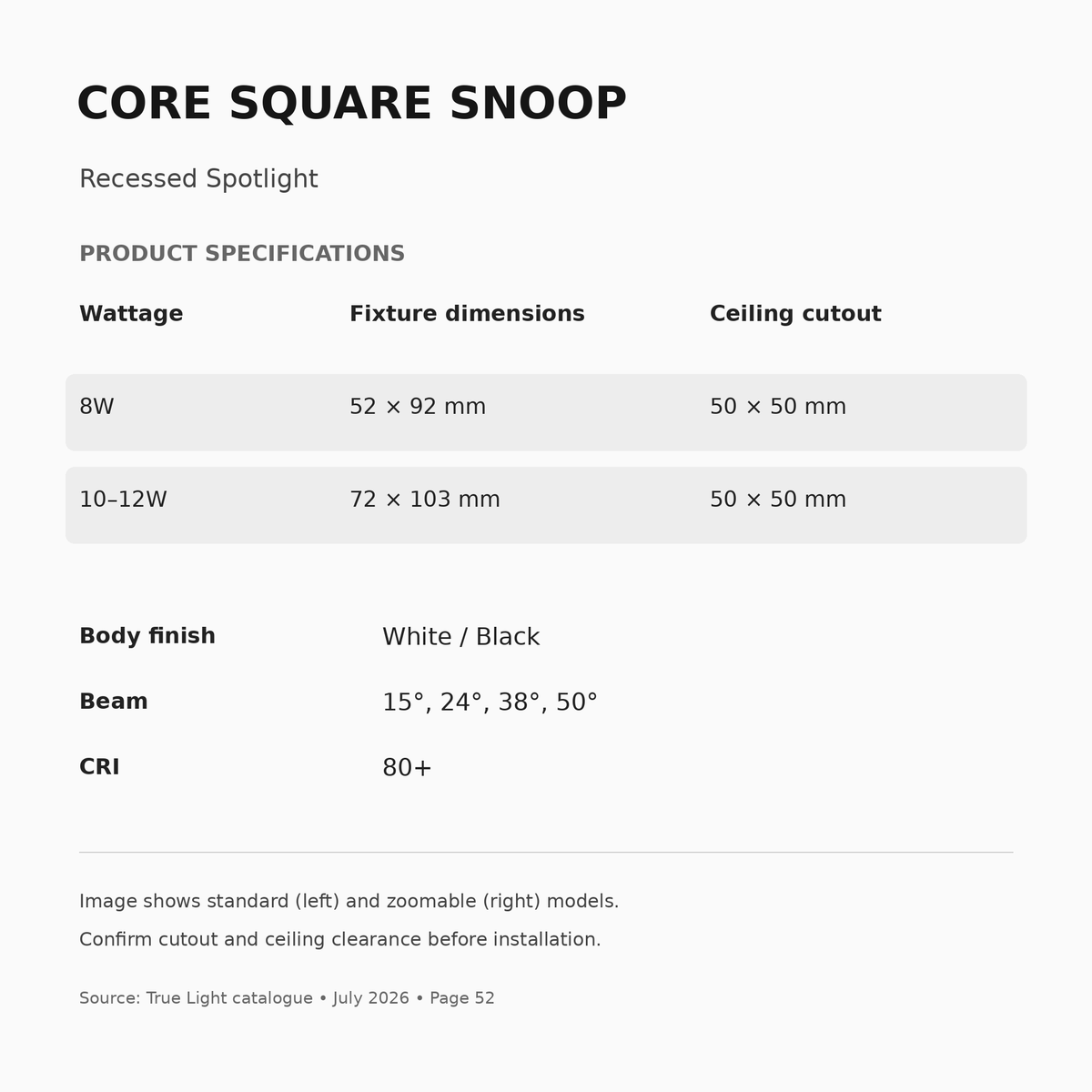

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam | CRI |
|---|---|---|---|---|
| 8W | 52 × 92 mm | 50 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
| 10–12W | 72 × 103 mm | 50 × 50 mm | 15°, 24°, 38°, 50° | 80+ |
Dimensions are as printed in the shared standard/zoomable catalogue table. Confirm ceiling clearance and mounting requirements before installation.
The catalogue lists a 50 × 50 mm cutout for both wattages. Confirm this cutout with the supplier before installation.
Body and reflector finish

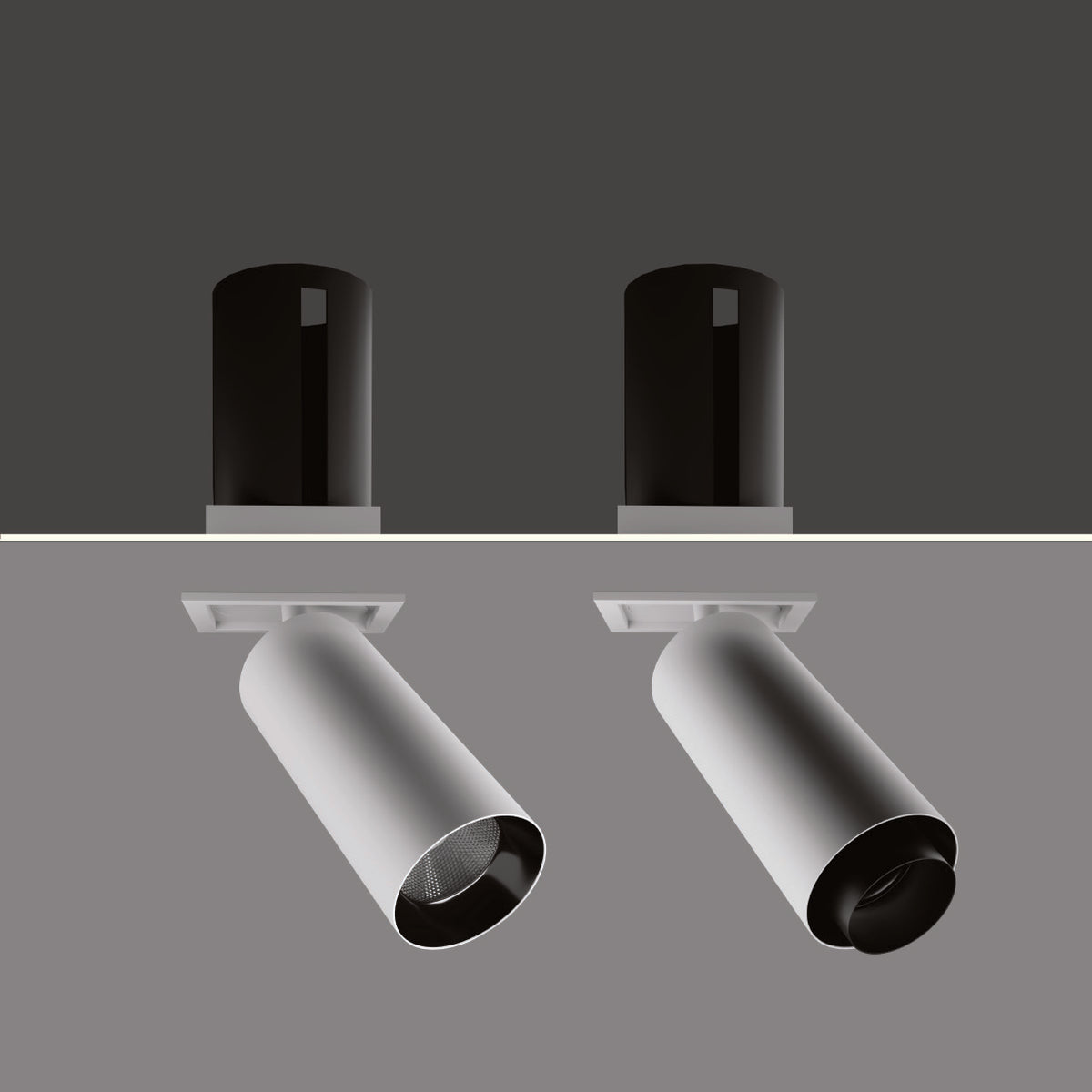

Body options: White or Black. The catalogue image shows both versions: standard on the left and zoomable on the right. It is representative and does not show every body finish. Reflector finishes require confirmation; the body-finish selector does not specify a separate reflector finish.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 8W | ₹4240.50 | ₹6367.90 | ₹6367.90 | ₹6519.70 | ₹7972.80 |
| 10–12W | ₹4944.50 | ₹7031.20 | ₹7031.20 | ₹7183.00 | ₹8786.80 |
Prices apply to all four listed beam angles: 15°, 24°, 38° and 50°.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
