CORNET DOUBLE 24W Twin Recessed Downlight

CORNET DOUBLE · 24W

CORNET DOUBLE is a twin-light recessed LED downlight rated 24W total (2 × 12W), with a rectangular aperture, a 155 × 77 mm ceiling cutout and CRI 80+. Choose a white or black body, a 15°, 24°, 36° or 60° beam and the light-colour and control configuration for your installation.

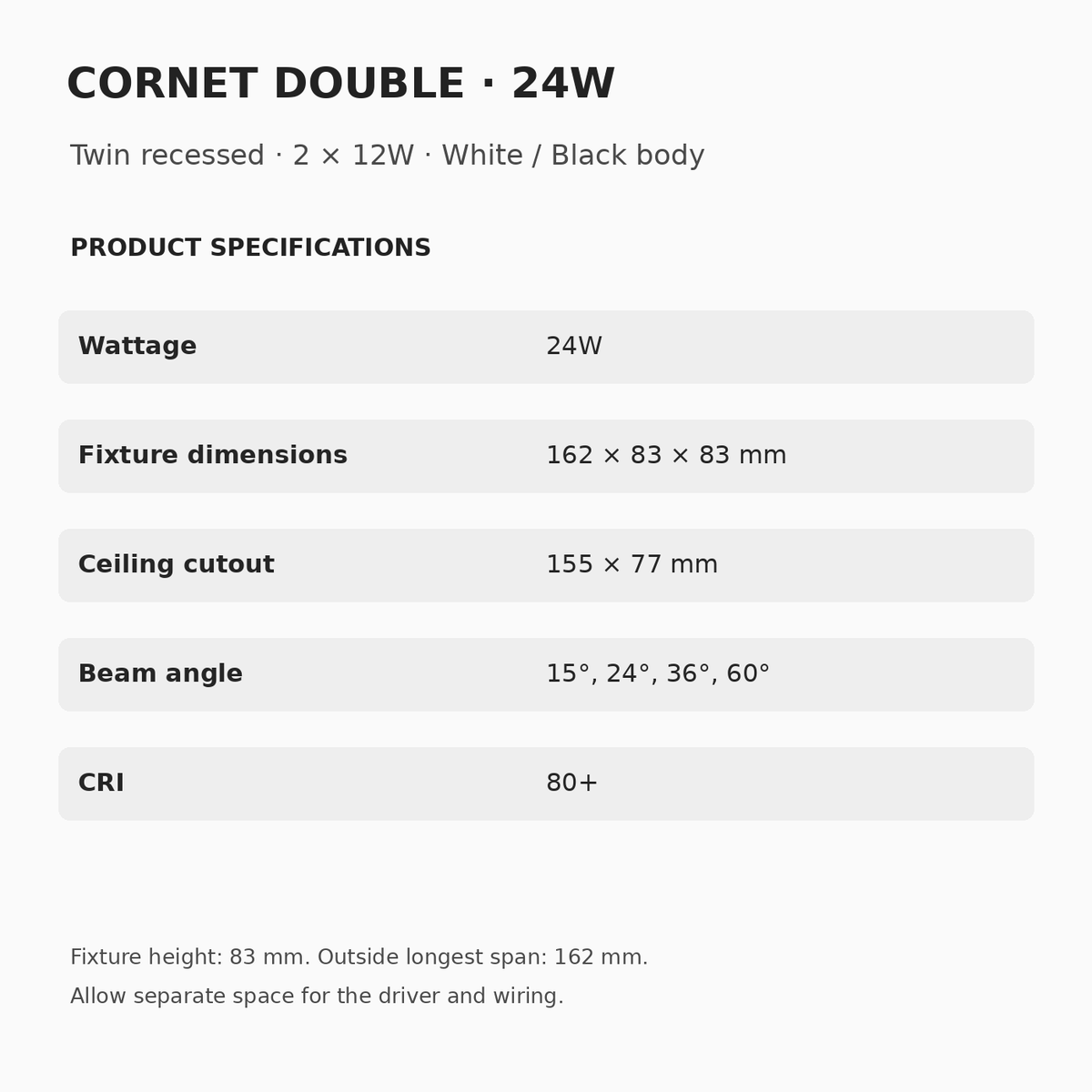

Product specifications

Recessed mounting. Exterior dimensions are 162 × 83 × 83 mm, with 83 mm fixture height. The 155 × 77 mm rectangular ceiling cutout is separate from the outside fixture dimensions. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

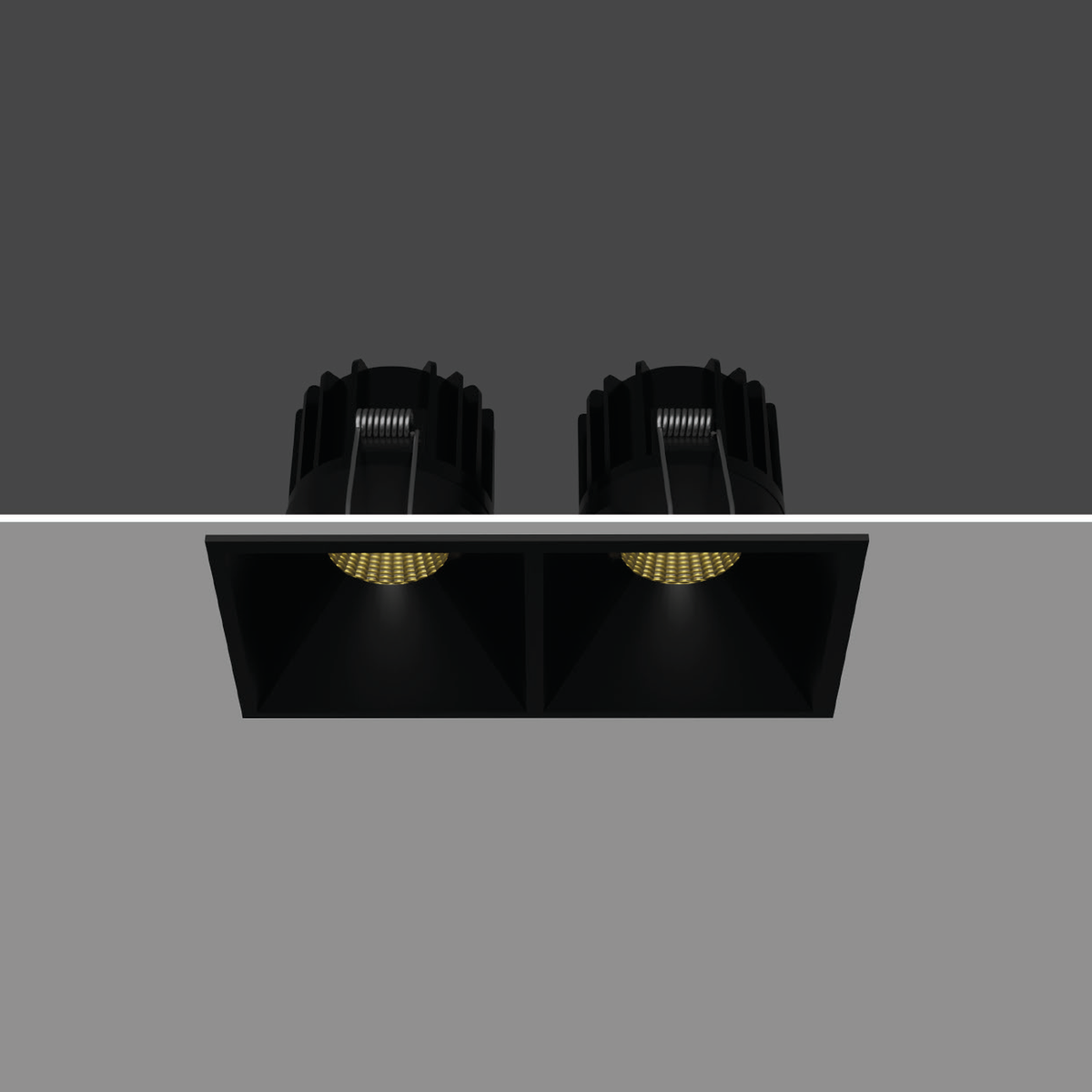

The product image is the black-body CORNET DOUBLE installation reference. A white-body reference image is not available, so the gallery image does not show the selected white finish. The image is representative and is not mapped to a particular beam or control configuration.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 24W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 24W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 24W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 24W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 24W.

DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.

Configuration prices excluding GST

Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
