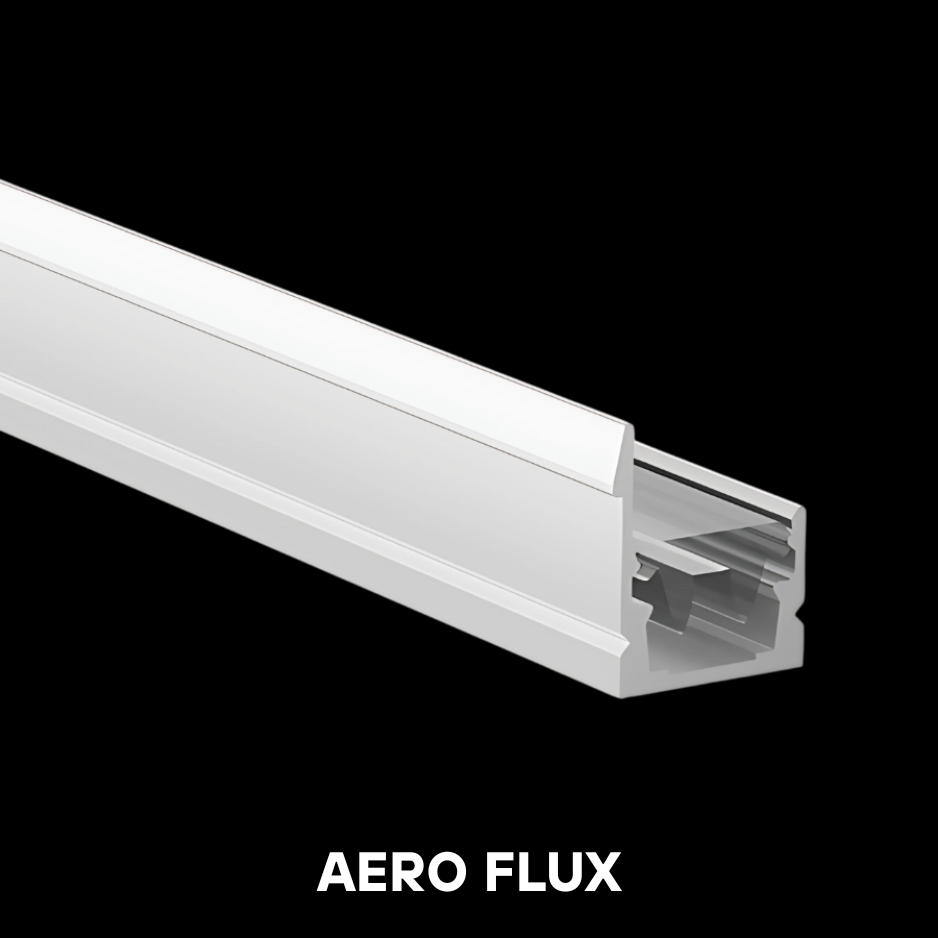

AERO FLUX 3000MM

The AERO FLUX 3000MM is a high-quality surface-mounted aluminum LED profile engineered for medium-beam directional lighting. Featuring a precise 30° optical lens, this profile is ideal for accent and task lighting in both residential and commercial spaces. Its sleek design ensures a clean surface finish, while its deeper profile helps minimize glare and enhances light distribution.

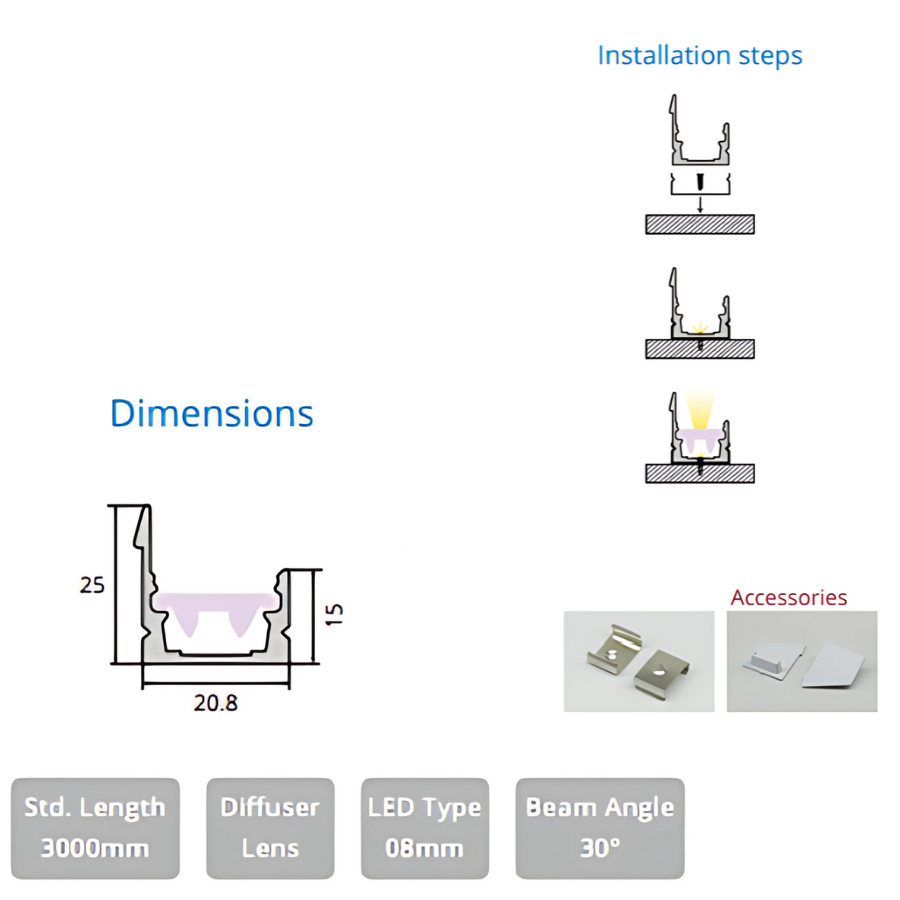

Installation Steps:

1. Mount the profile to the surface using the clip accessories.

2. Insert the 8mm LED strip into the channel.

3. Snap in the lens diffuser for a 30° controlled beam.

4. The lens focuses light effectively while keeping it visually soft.

Dimensions:

• Height (Total): 25 mm

• Front Wall Height: 15 mm

• Width: 20.8 mm

Specifications:

• Standard Length: 3000 mm

• Diffuser Type: Optical Lens

• LED Compatibility: 08 mm LED Strip

• Beam Angle: 30°

• Accessories Included:

  • Mounting brackets (metal clips)

  • End caps for a finished appearance

Applications:

• Wall grazing and focused ceiling washes

• Shelf or cabinet lighting

• Kitchen counters and workstations

• Architectural feature lighting

• Gallery and museum exhibit lighting
