AETHEL 23MM

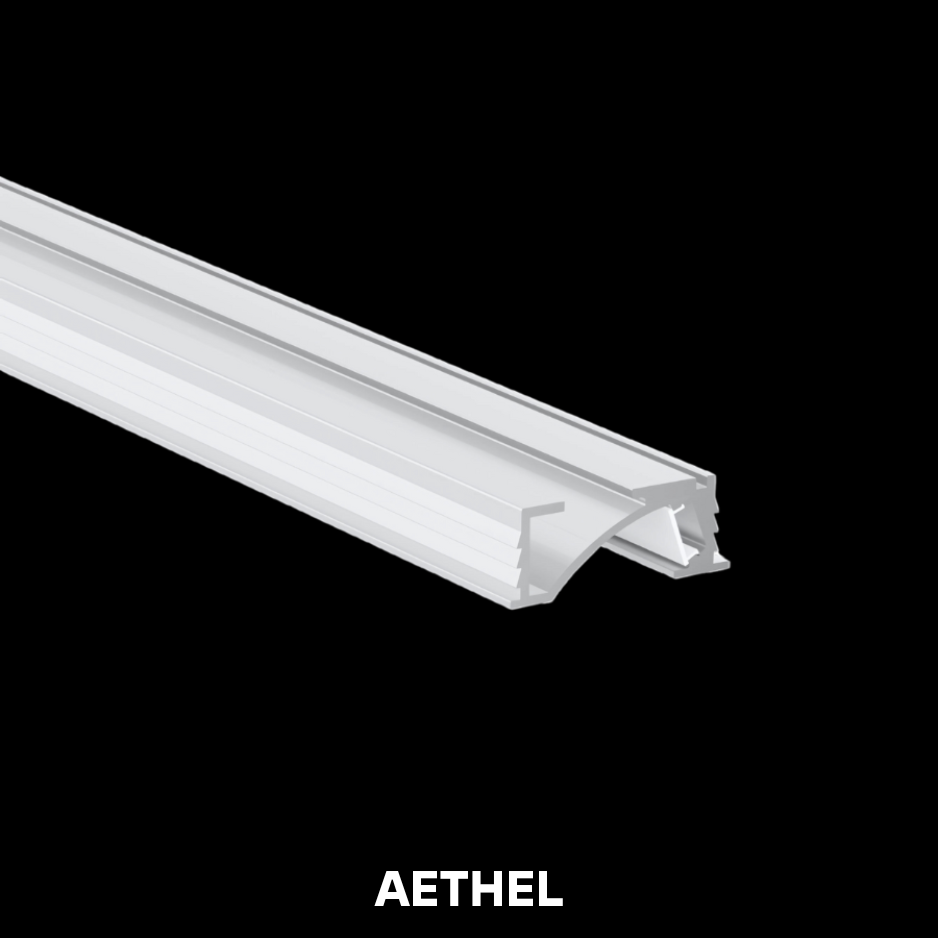

The AETHEL 23MM is a compact and elegantly curved recessed LED profile, designed for seamless integration into ceilings, walls, or furniture panels. With its unique arc-style diffuser channel, it offers enhanced light dispersion and a refined architectural aesthetic.

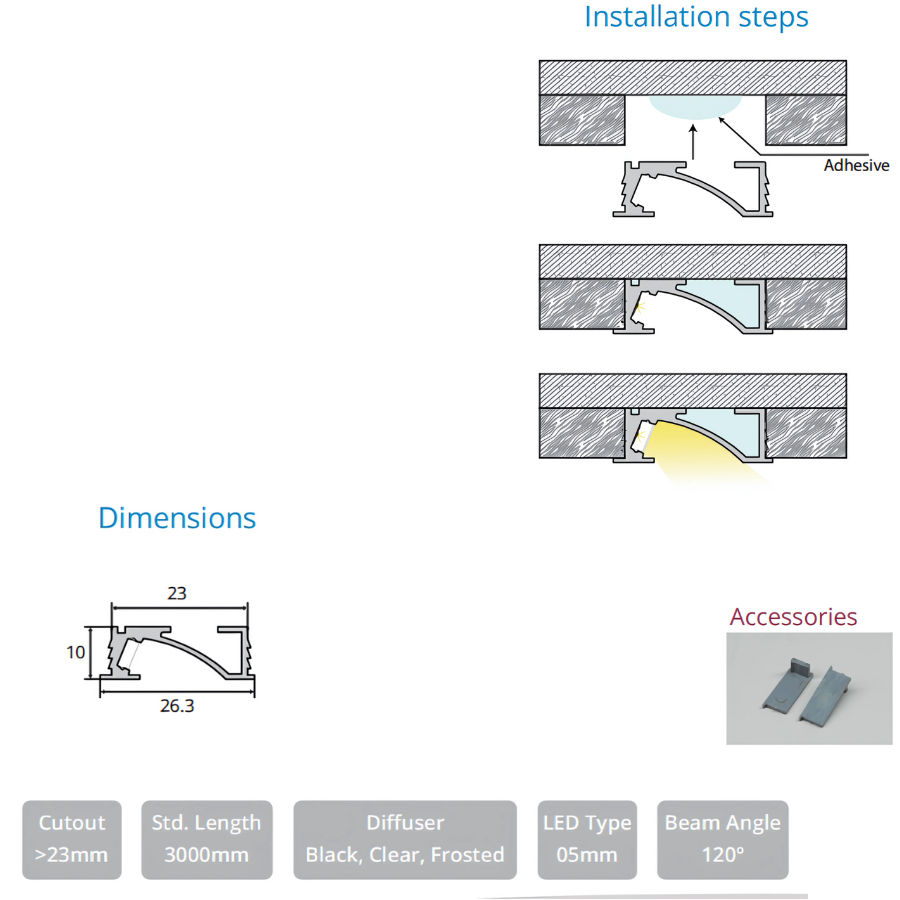

Installation Steps:

1. Prepare a cutout wider than 23mm in the mounting surface.

2. Apply adhesive inside the groove to secure the profile.

3. Insert the curved aluminum profile and press firmly into place.

4. Install the 05mm LED strip inside the channel.

5. Complete with your choice of black, clear, or frosted diffuser.

6. Enjoy soft, diffused lighting at a 120° beam angle.

Dimensions:

• Width: 26.3 mm

• Height: 10 mm

• Internal LED width: 23 mm

Specifications:

• Cutout Requirement: >23 mm

• Standard Length: 3000 mm

• Diffuser Options: Black, Clear, Frosted

• Compatible LED Strip: 05 mm

• Beam Angle: 120°

• Accessories Included: Matching end caps and mounting hardware

Applications:

• Decorative lighting for interiors

• Furniture and cabinetry lighting

• Retail and display shelves

• Cove and ceiling recess lighting
