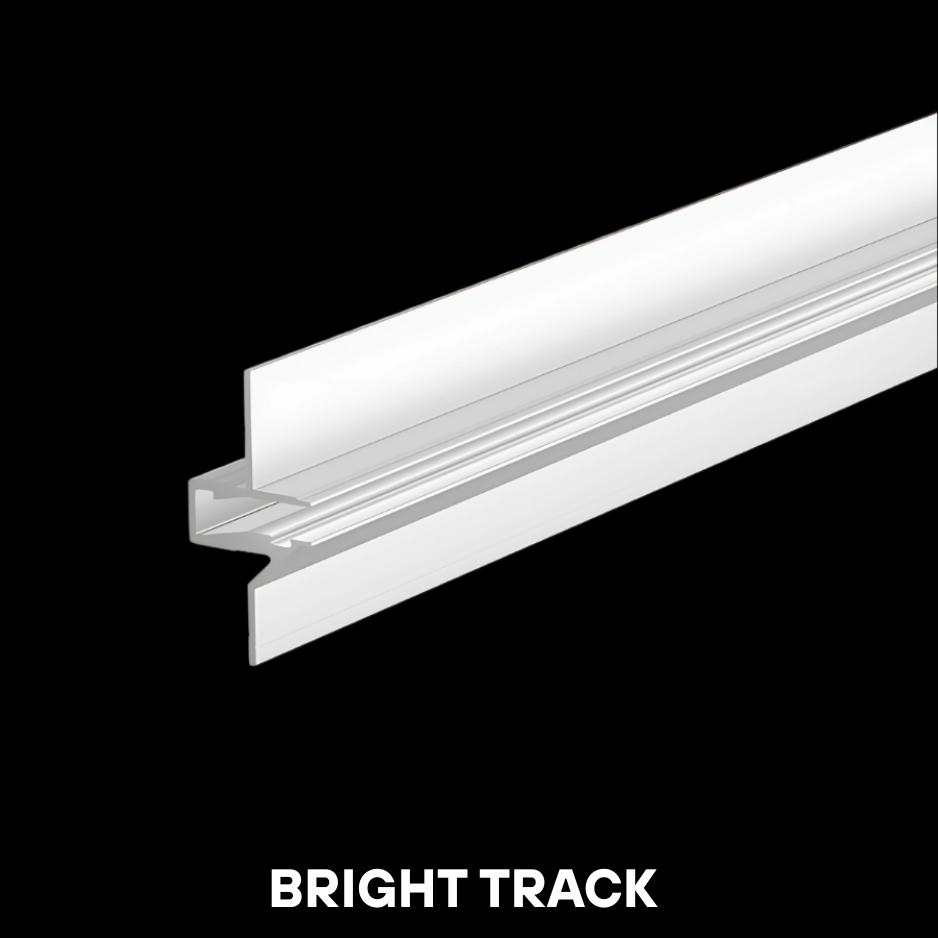

BRIGHT TRACK 15MM

The BRIGHT TRACK 15MM is a slim recessed LED profile engineered for focused wall lighting applications. Designed to accommodate a 5mm LED strip, it delivers efficient directional illumination with a modern, minimal aesthetic. Ideal for compact spaces, panel integrations, and linear accent lighting.

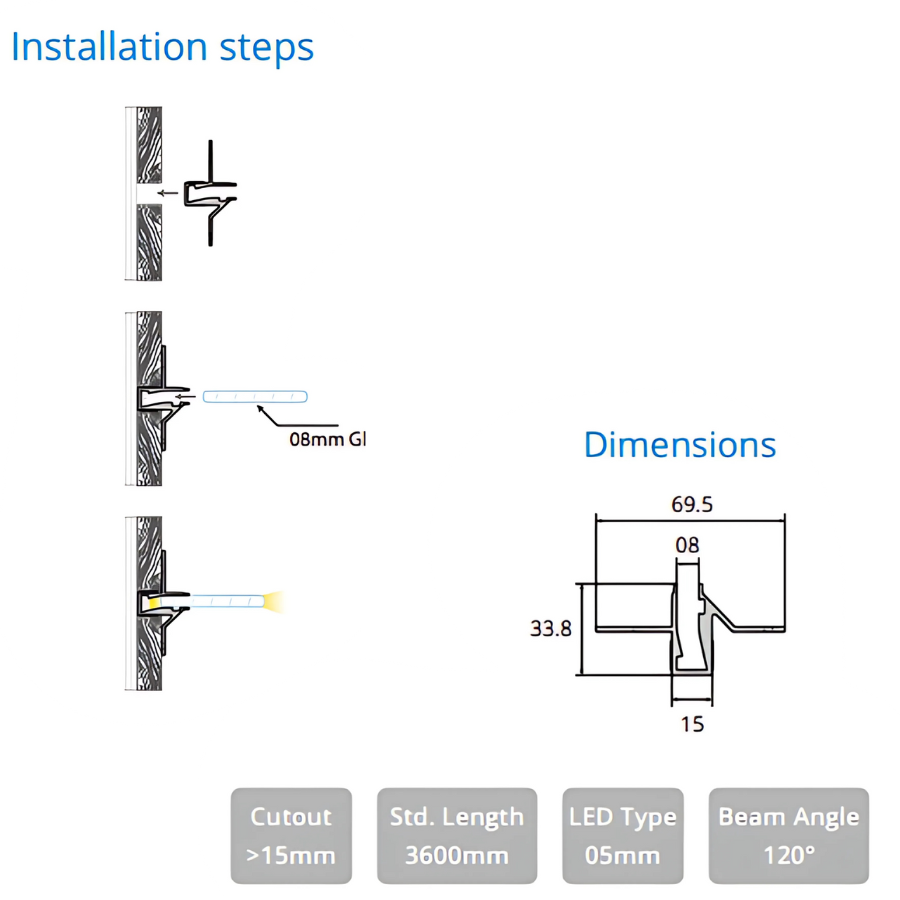

Installation Steps:

1. Prepare a cutout wider than 15mm in the wall or mounting surface.

2. Secure the profile into the cutout using appropriate fasteners.

3. Insert the 08mm GI (glass or acrylic) plate into the designated slot.

4. Install a 5mm LED strip into the profile to complete the setup and emit a clean 120° beam.

Dimensions:

• Width: 69.5 mm

• Height: 33.8 mm

• LED Slot Width: 8 mm

• Body Width: 15 mm

Specifications:

• Cutout Requirement: >15 mm

• Standard Length: 3600 mm

• LED Type: 5 mm

• Beam Angle: 120°

• Accessories: GI support plate (as shown in the diagram)

Applications:

• Wall panel lighting

• Decorative accents

• Cabinetry and furniture lighting

• Cove and indirect lighting setups
