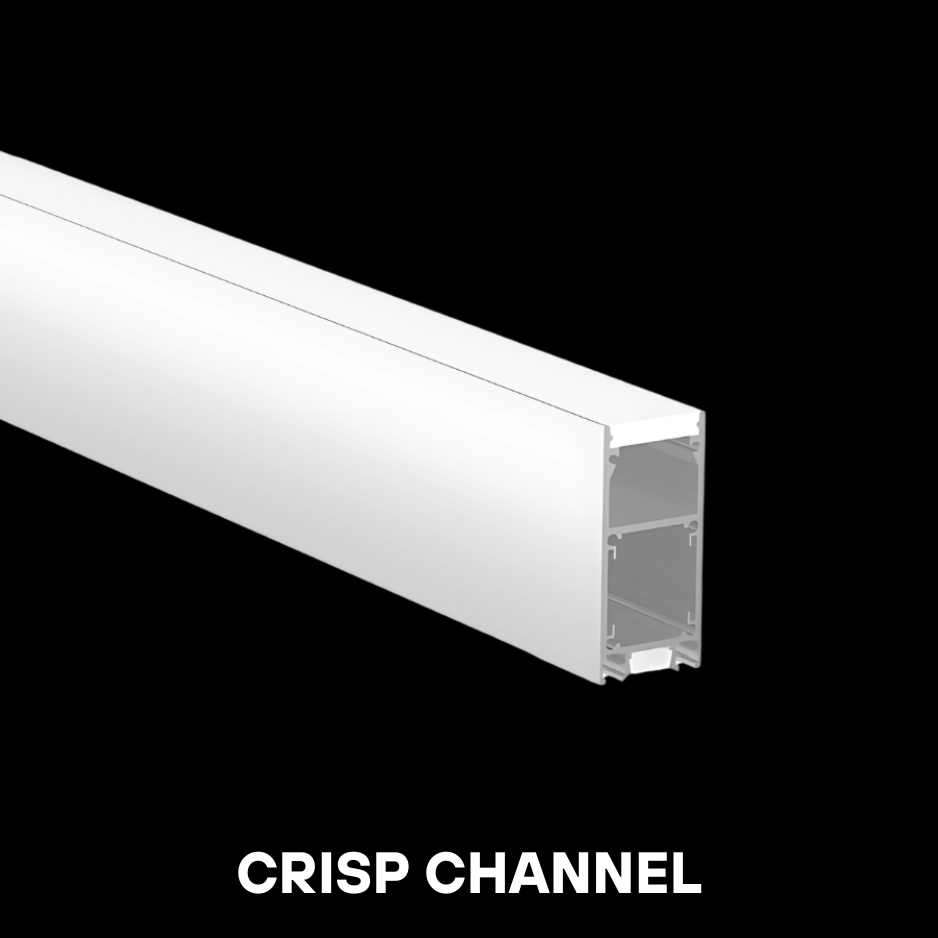

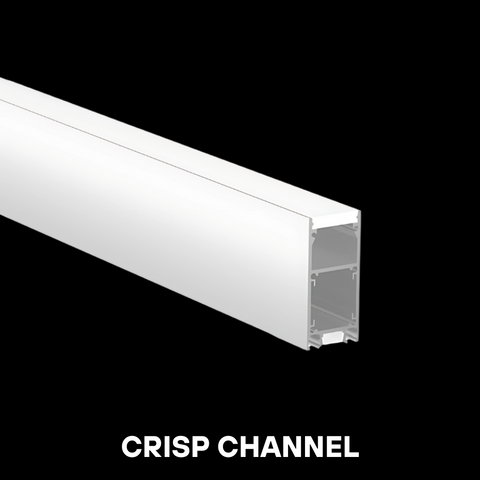

The CRISP CHANNEL 3600MM is a compact, suspended LED aluminum profile featuring a vertical rectangular housing that offers streamlined aesthetics and integrated driver space. It’s ideal for modern lighting designs that require both functionality and elegance in office, retail, and architectural environments.
Key Features:
Vertical Rectangular Design:
Slim and symmetrical vertical profile with efficient heat dissipation and a clean, minimalistic aesthetic. Designed to accommodate an internal driver for simplified installations.
Suspended Mounting System:

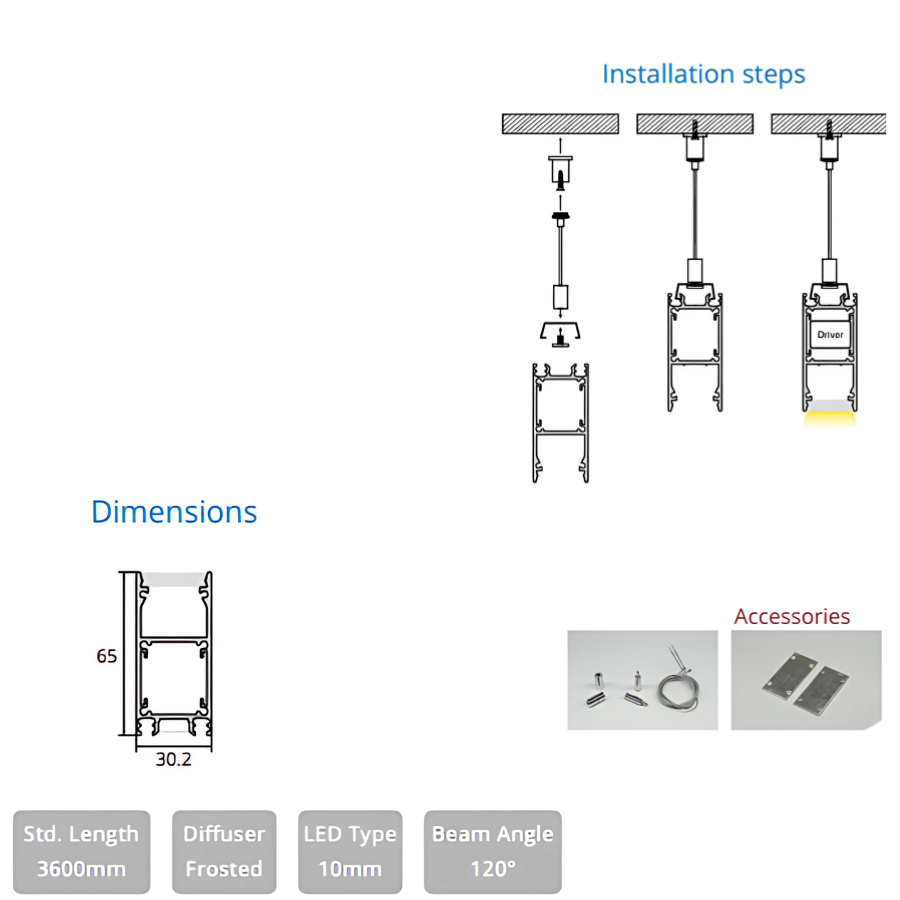

This model supports a cable suspension system, perfect for high ceilings and modern interiors. Installation is illustrated step-by-step for ease of setup.
Frosted Diffuser:
Equipped with a frosted polycarbonate diffuser, the profile ensures uniform light distribution with minimal glare, enhancing ambient lighting quality.
Profile Dimensions:
-
Height: 65mm
-
Width: 30.2mm
LED Compatibility:
Supports 10mm wide LED strips, allowing for versatile light output options depending on the environment.
Beam Angle:
Delivers a 120° wide beam angle—ideal for general lighting applications with a broad light spread.
Standard Length:
Available in 3600mm (3.6-meter) standard lengths, providing long linear runs for seamless ceiling installations.
Included Accessories:
-
Steel suspension cable kit
-
Ceiling and side brackets
-
Screws and mounting hardware
-
End caps for a clean finish
Applications:
-
Modern office lighting
-
Retail and fashion showroom displays
-
Suspended corridor or hallway lighting
-
Studio or co-working space illumination
-
Contemporary hospitality projects
