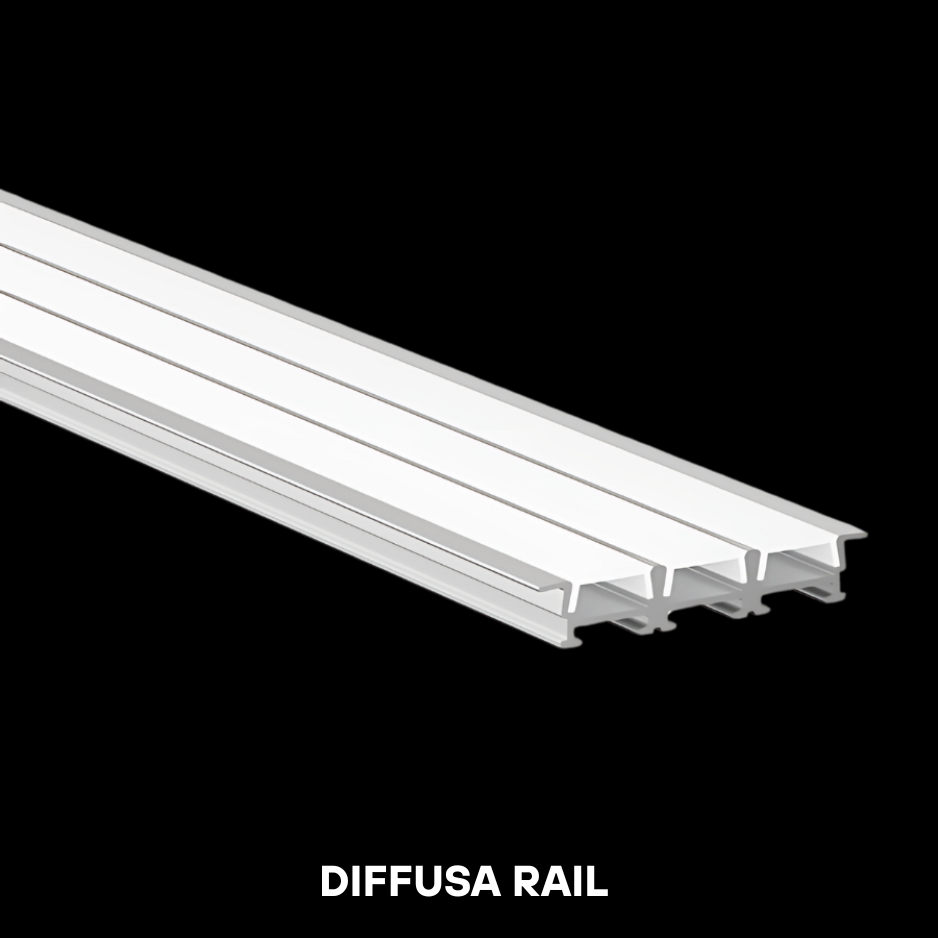

DIFFUSA RAIL 44MM

The DIFFUSA RAIL 44MM is a compact recessed LED profile designed for minimalistic linear lighting in ceilings or furniture. With a low profile height of 8.8mm, it is ideal for shallow grooves and surfaces requiring subtle and uniform illumination. Its twin-channel structure supports dual LED strips for enhanced brightness and coverage.

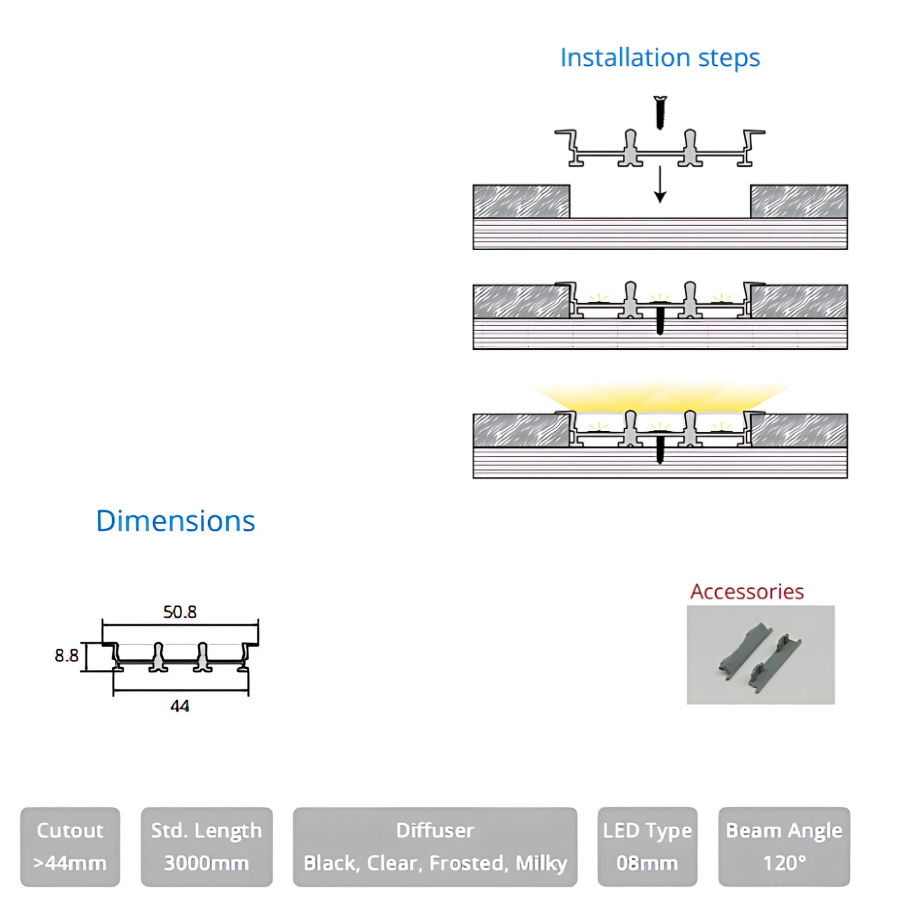

Installation Steps:

1. Prepare a groove or cutout wider than 44mm.

2. Secure the profile into the cutout with screws from the top as shown.

3. Install 8mm LED strips in each of the two internal channels.

4. Add the chosen diffuser (black, clear, frosted, or milky) to complete the clean finish.

Dimensions:

• Total Width: 50.8 mm

• Cutout Width: 44 mm

• Height: 8.8 mm

Specifications:

• Cutout Requirement: >44 mm

• Standard Length: 3000 mm

• Diffuser Options: Black, Clear, Frosted, Milky

• LED Strip Compatibility: 8 mm (dual channels)

• Beam Angle: 120°

Accessories Included:

• End caps for clean termination (as shown in the image)

Applications:

• Furniture and cabinetry lighting

• Retail shelving displays

• Decorative ceiling strips

• Under-cabinet lighting
