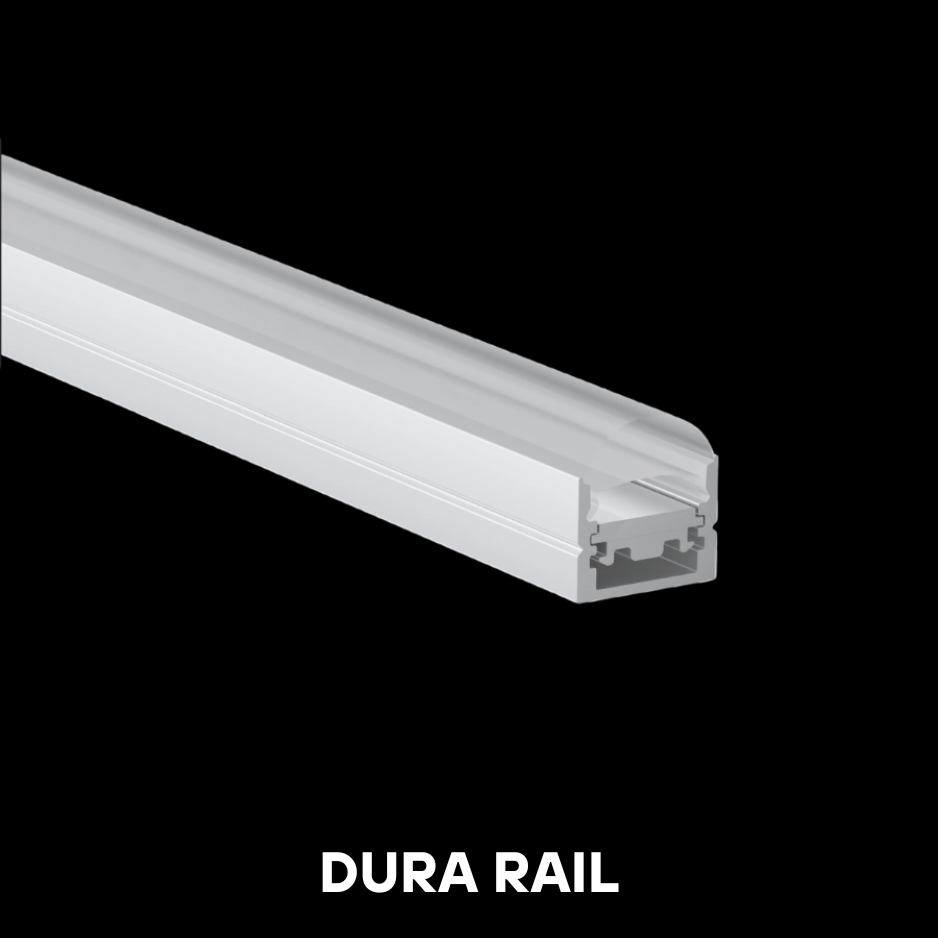

DURA RAIL 3000MM

The DURA RAIL 3000MM is a compact and efficient surface-mounted aluminum LED profile, designed specifically for applications requiring precise light direction. The profile includes interchangeable optical lenses for various beam spreads, making it ideal for focused illumination, display cases, or directional lighting tasks.

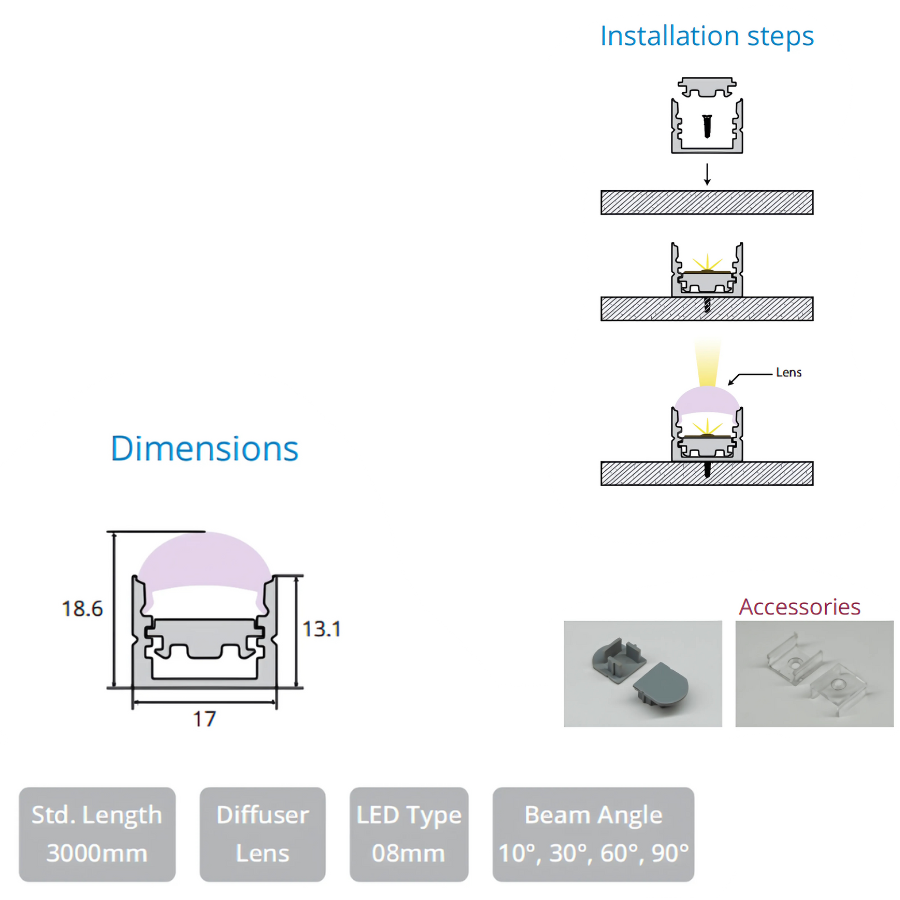

Installation Steps:

1. Mount the profile onto the surface using screws or clips.

2. Insert the 8mm LED strip into the channel.

3. Snap in the desired optical lens to achieve your preferred beam spread.

4. Add end caps and mounting clips as finishing accessories.

5. Final setup offers focused light output with lens-directed precision.

Dimensions:

• Height with Lens: 18.6 mm

• Height without Lens: 13.1 mm

• Width: 17 mm

Specifications:

• Standard Length: 3000 mm

• Diffuser Type: Optical Lens

• LED Compatibility: 08 mm LED Strip

• Beam Angles Available: 10°, 30°, 60°, 90°

• Accessories Included: End caps, mounting brackets, lenses

Applications:

• Display lighting for retail or galleries

• Shelf, cabinet, or signage illumination

• Accent lighting in interiors requiring narrow or wide beam angles

• Ideal for lighting designers seeking flexibility in beam control
