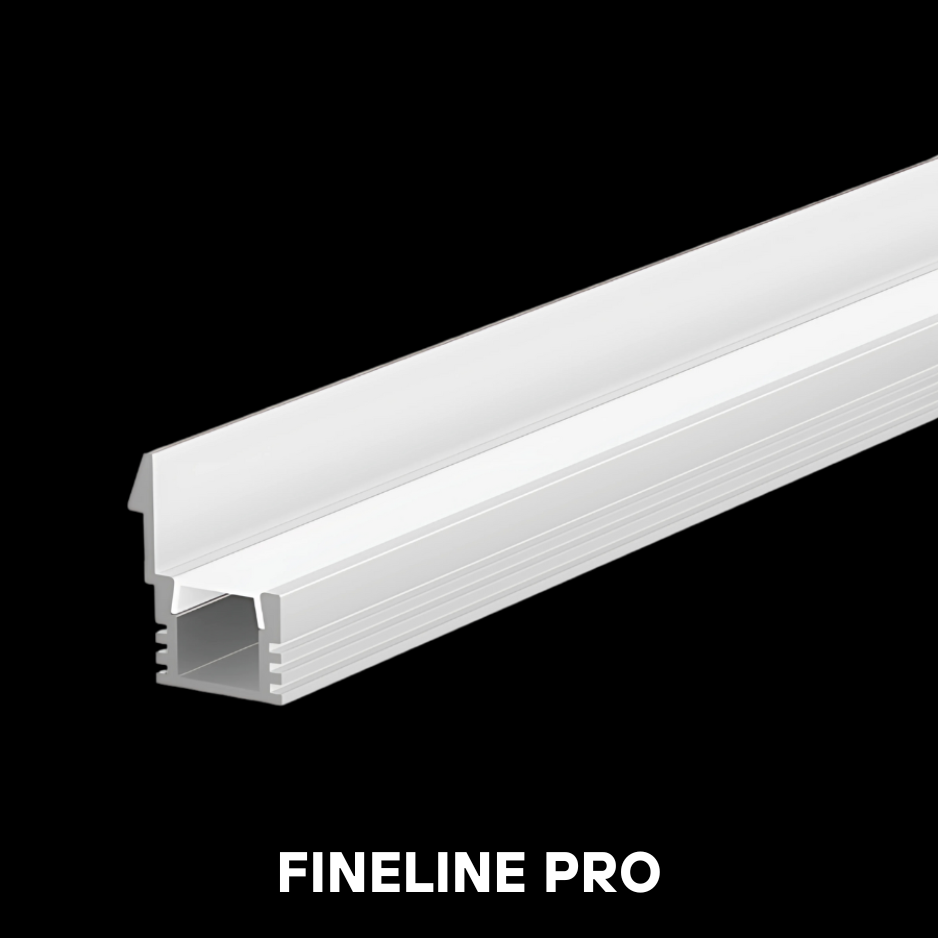

FINELINE PRO 16MM

The FINELINE PRO 16MM is a deep recessed LED profile designed for seamless architectural lighting. With a tall sidewall profile and a compact width, it offers a striking, clean downlight effect, perfect for modern interiors.

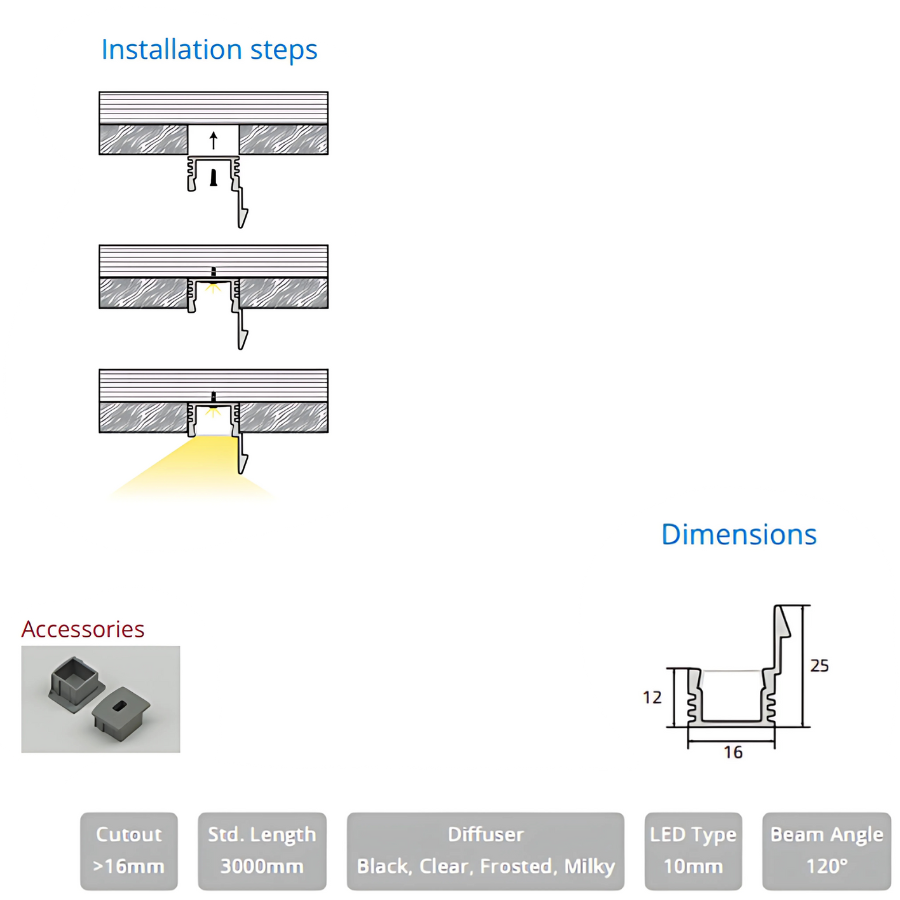

Installation Steps:

1. Prepare a cutout wider than 16mm in the desired surface.

2. Insert the profile vertically into the slot.

3. Snap the profile into place using built-in pressure-lock wings.

4. Install the LED strip (10mm) inside the profile.

5. Attach the diffuser (available in Black, Clear, Frosted, or Milky).

6. The profile emits light at a 120° beam angle, offering wide and uniform illumination.

Dimensions:

• Width: 16 mm

• Height: 25 mm

• Internal Height (up to diffuser): 12 mm

Specifications:

• Cutout Requirement: >16 mm

• Standard Length: 3000 mm

• Diffuser Options: Black, Clear, Frosted, Milky

• LED Type Compatibility: 10 mm

• Beam Angle: 120°

• Accessories: End caps shown for secure finishing

Applications:

• Interior linear lighting in ceilings or walls

• Retail and showroom accent lighting

• Furniture and cabinetry lighting

• Pathway and corridor lighting
