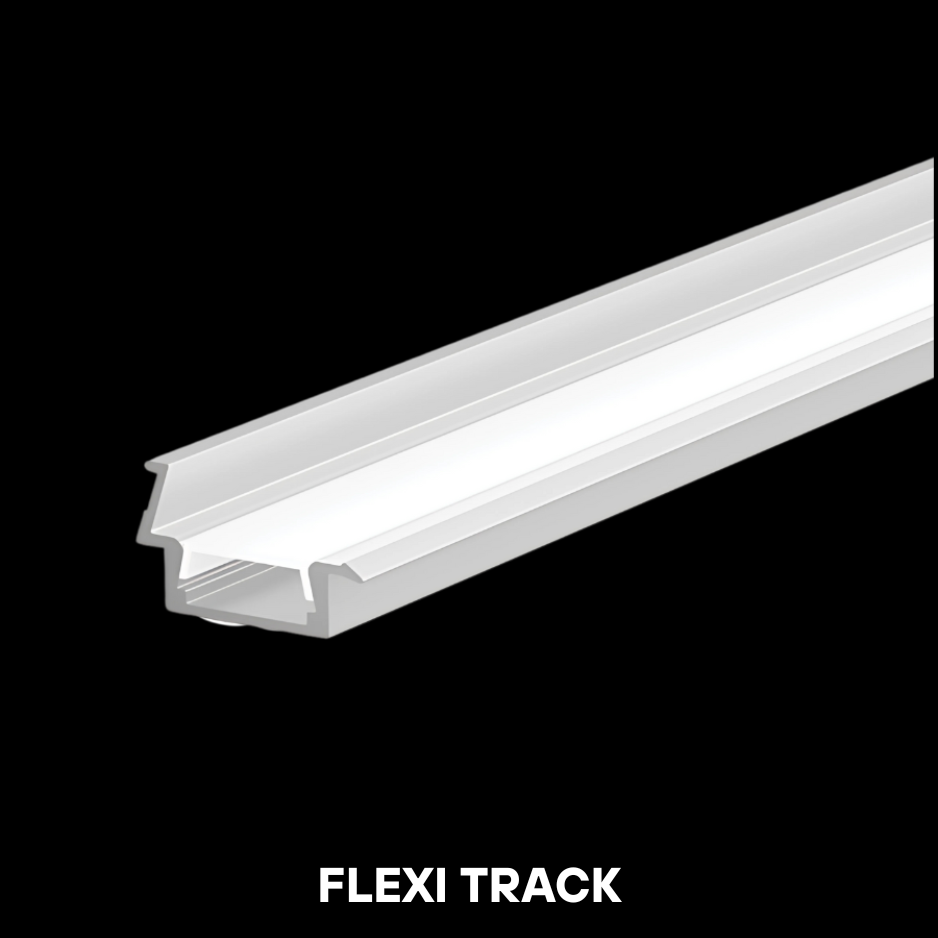

The FLEXI TRACK 18MM is a compact, recessed aluminum LED profile ideal for precision lighting in furniture, cabinetry, display units, and interior architectural grooves. It is designed for easy flush mounting with minimal visibility, offering soft and even light diffusion at a 120° beam angle.

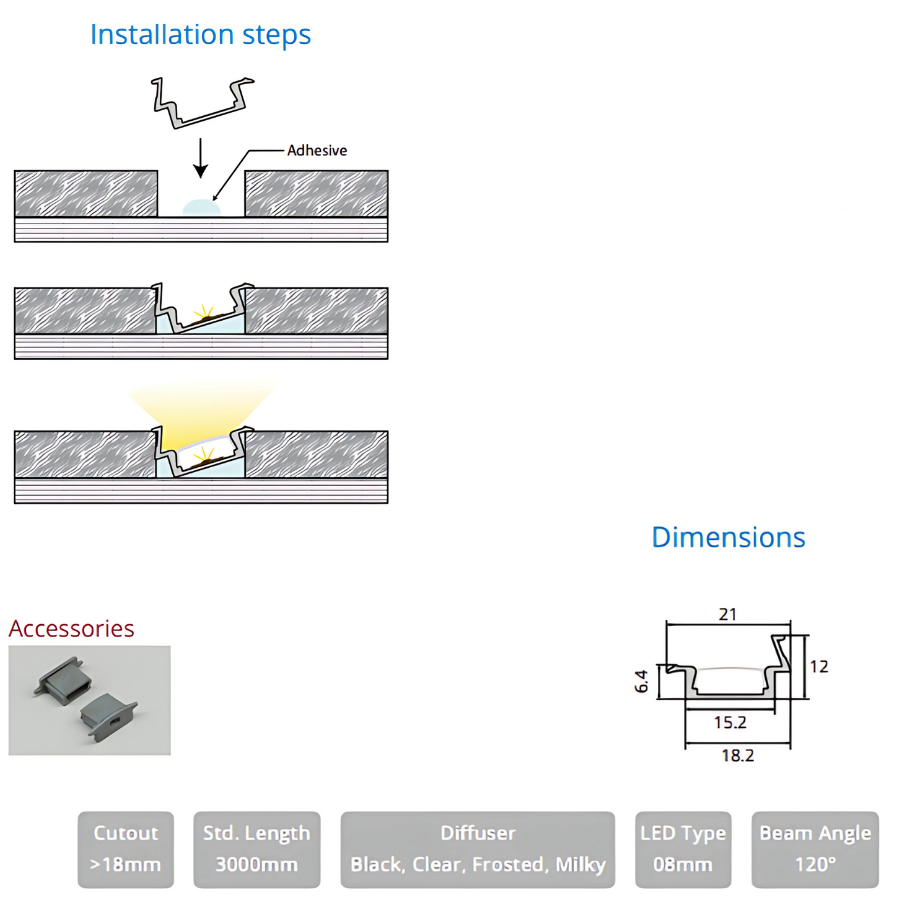

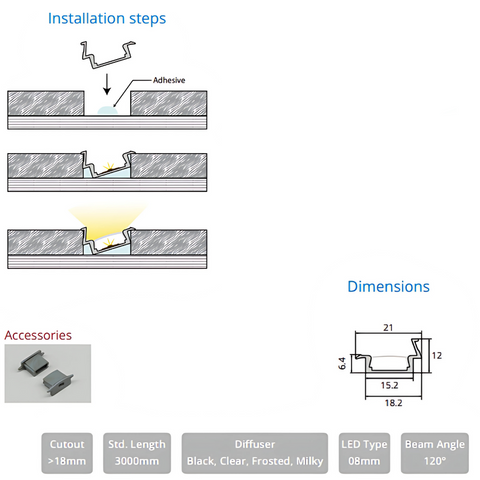

Installation Steps:
-
Cut a groove with a minimum width of 18mm.
-
Apply adhesive to the mounting base.
-
Insert the aluminum channel into the slot.
-
Add LED strip and snap on the desired diffuser.
-
The profile delivers clean, directed light with a sleek finish.
Dimensions:
-
Outer Width: 21 mm
-
Inner Width: 15.2 mm
-
Cutout Width: >18 mm
-
Height: 12 mm
-
Inner Depth: 6.4 mm
Specifications:
-
Cutout Requirement: >18 mm
-
Standard Length: 3000 mm
-
Diffuser Options: Black, Clear, Frosted, Milky
-
LED Type: 08 mm
-
Beam Angle: 120°
-
Accessories: Custom end caps and mounting clips as shown
Applications:
-
Recessed wardrobe/cabinet lighting
-
Shelves and under-shelf lighting
-
Wall panel accents
-
Architectural linear lighting where a minimal footprint is desired
