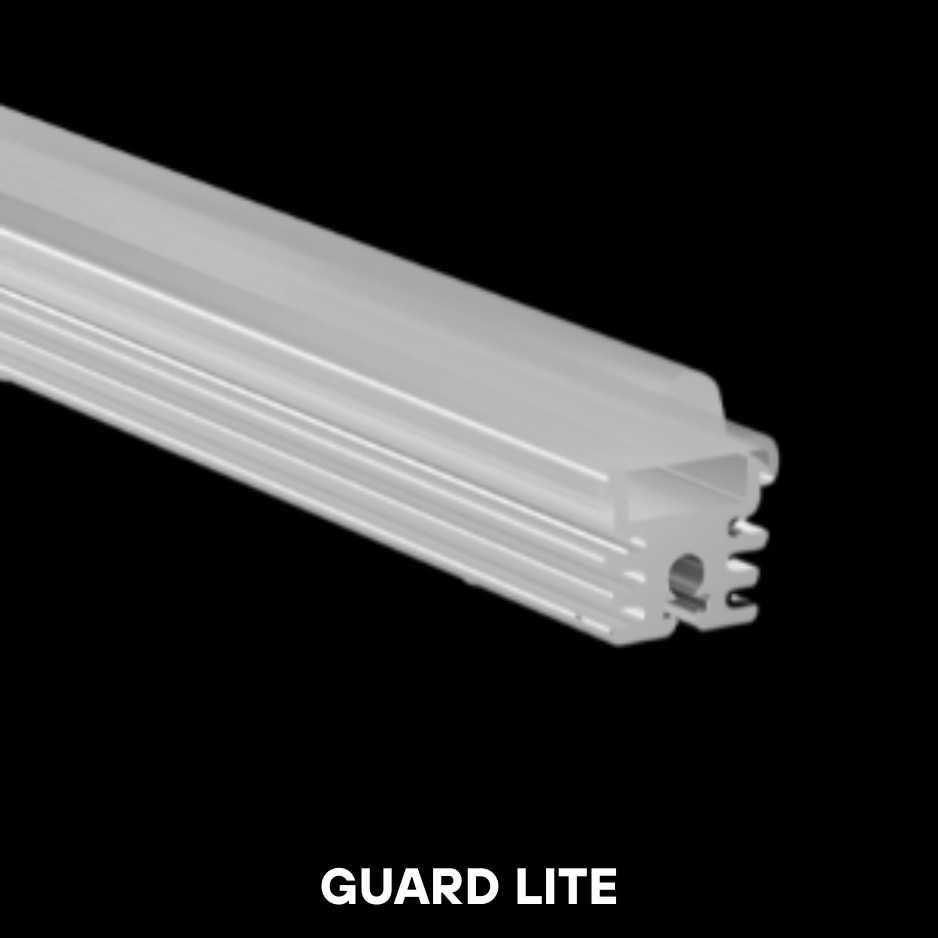

GUARD LITE 3000MM

The GUARD LITE 3000MM is a robust, surface-mounted LED profile system designed for targeted and narrow-beam lighting applications. This profile is ideal for highlighting architectural elements, display showcases, or focused illumination needs. The profile integrates seamlessly into surfaces while providing a clean and professional lighting finish with its precision lens.

Installation Steps:

1. Secure the profile to the surface using the mounting clip provided.

2. Install the 8mm LED strip inside the channel.

3. Snap the optical lens diffuser into place.

4. Final step delivers a concentrated beam output with a 15° focus.

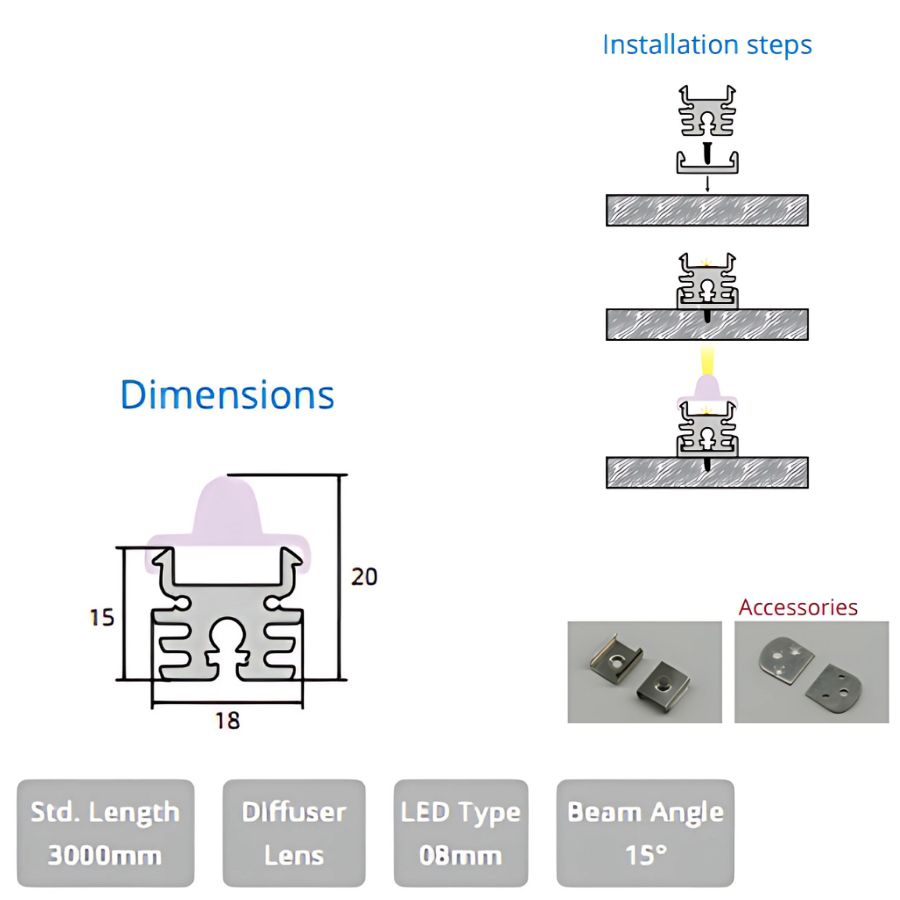

Dimensions:

• Total Height (with lens): 20 mm

• Profile Height (without lens): 15 mm

• Width: 18 mm

Specifications:

• Standard Length: 3000 mm

• Diffuser Type: Optical Lens

• LED Compatibility: 08 mm LED Strip

• Beam Angle: 15° (for focused lighting)

• Accessories Included:

  • Stainless steel mounting clips

  • End caps for clean finish and protection

Applications:

• Retail shelving and product displays

• Accent lighting for narrow corridors or artworks

• Museum exhibits

• Functional lighting in kitchens, wardrobes, or showcases
