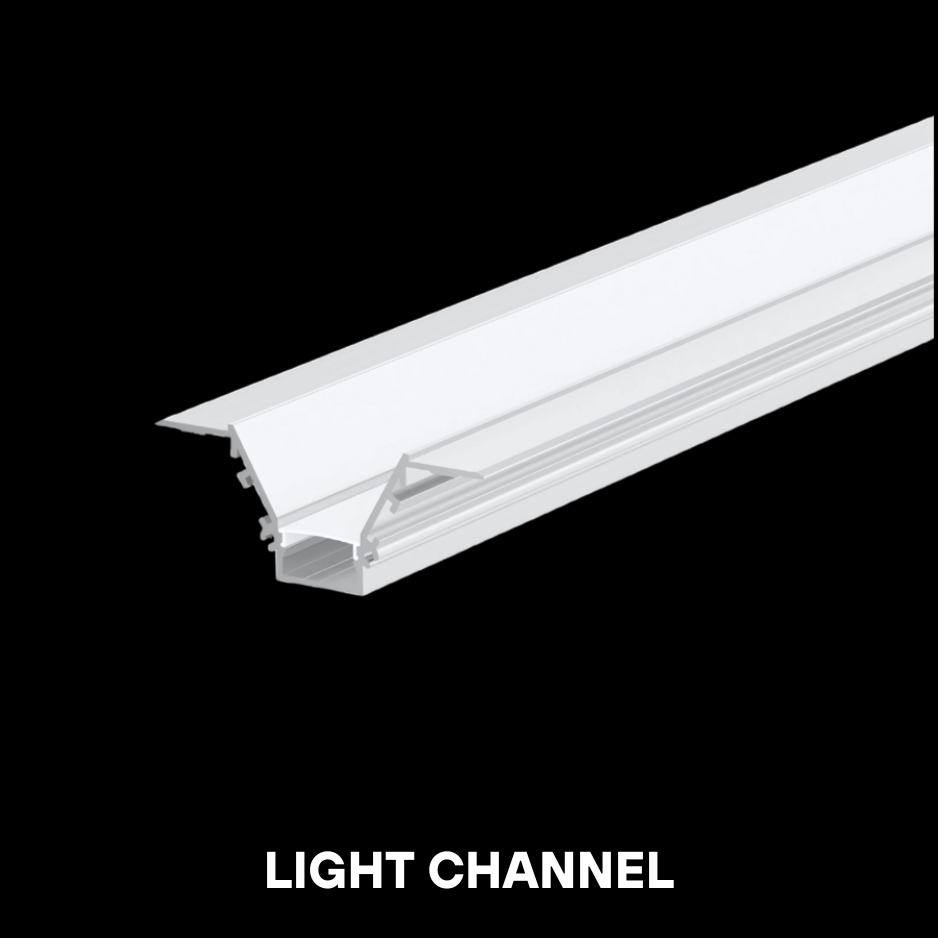

LIGHT CHANNEL 48MM

The LIGHT CHANNEL 48MM is a premium V-shaped recessed LED profile designed for symmetric downlighting in architectural spaces. Its wide base and dual angled wings allow for broader illumination while fitting seamlessly into ceiling or wall recesses. This profile is ideal for creating striking visual effects with even light distribution.

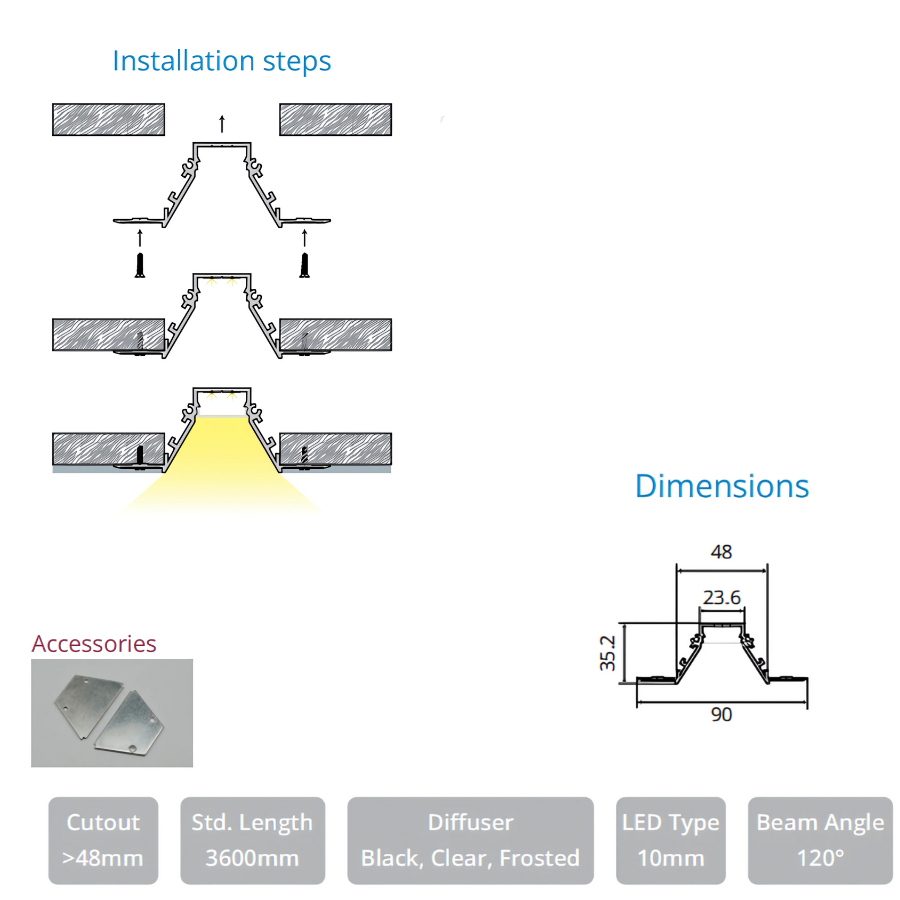

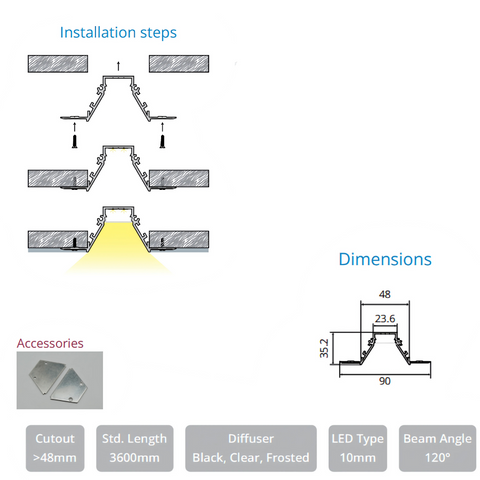

Installation Steps:

1. Prepare a cutout wider than 48mm.

2. Position and fix the V-profile into the prepared slot using screws.

3. Install a 10mm LED strip in the central channel.

4. Snap in the diffuser (available in black, clear, or frosted) to complete the setup.

Dimensions:

• Total Width: 90 mm

• Inner Channel Width: 23.6 mm

• Top Width: 48 mm

• Height: 35.2 mm

Specifications:

• Cutout Requirement: >48 mm

• Standard Length: 3600 mm

• Diffuser Options: Black, Clear, Frosted

• LED Strip Compatibility: 10 mm

• Beam Angle: 120°

Accessories Included:

• Pair of custom-shaped aluminum end caps (as shown in the image)

Applications:

• Large commercial ceiling lighting

• Auditorium and theatre ambient lighting

• Contemporary office corridors

• Architectural cove and groove lighting
