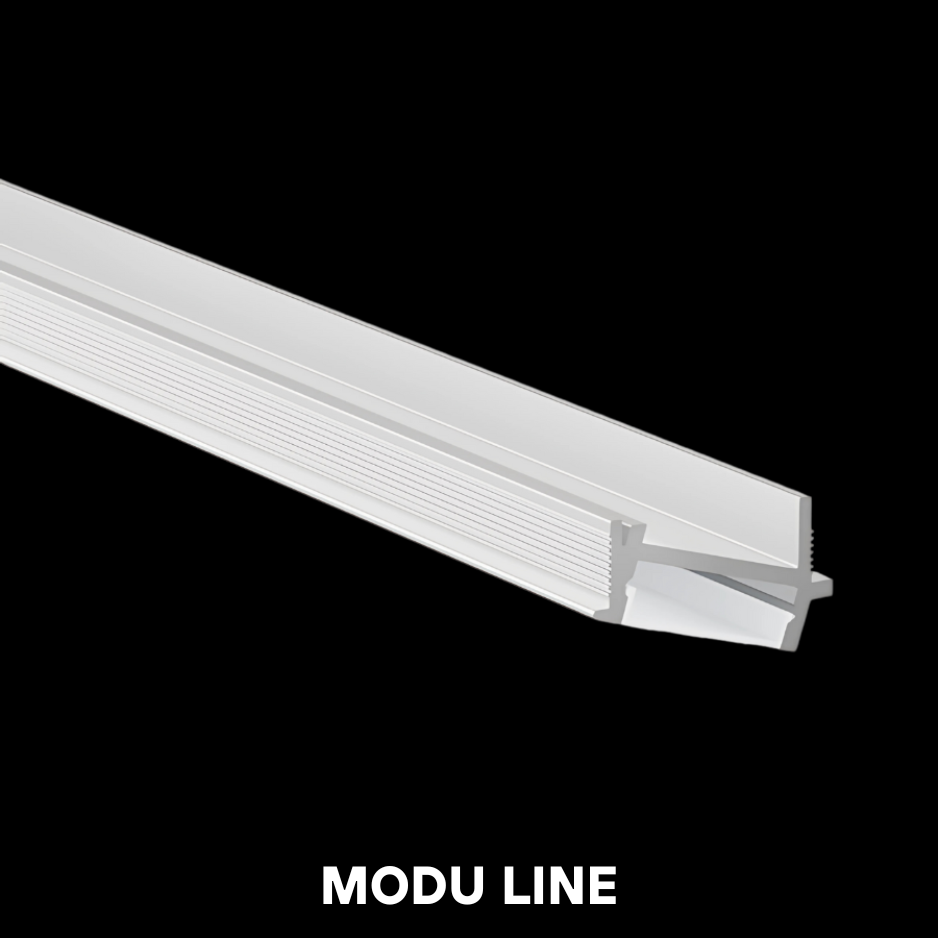

MODU LINE 25MM

The MODU LINE 25MM is a recessed linear LED profile designed for seamless architectural integration into ceilings, shelves, and cabinetry. With its angled light projection, this profile offers optimal illumination for task or accent lighting. The compact structure makes it perfect for areas requiring sleek, unobtrusive fixtures.

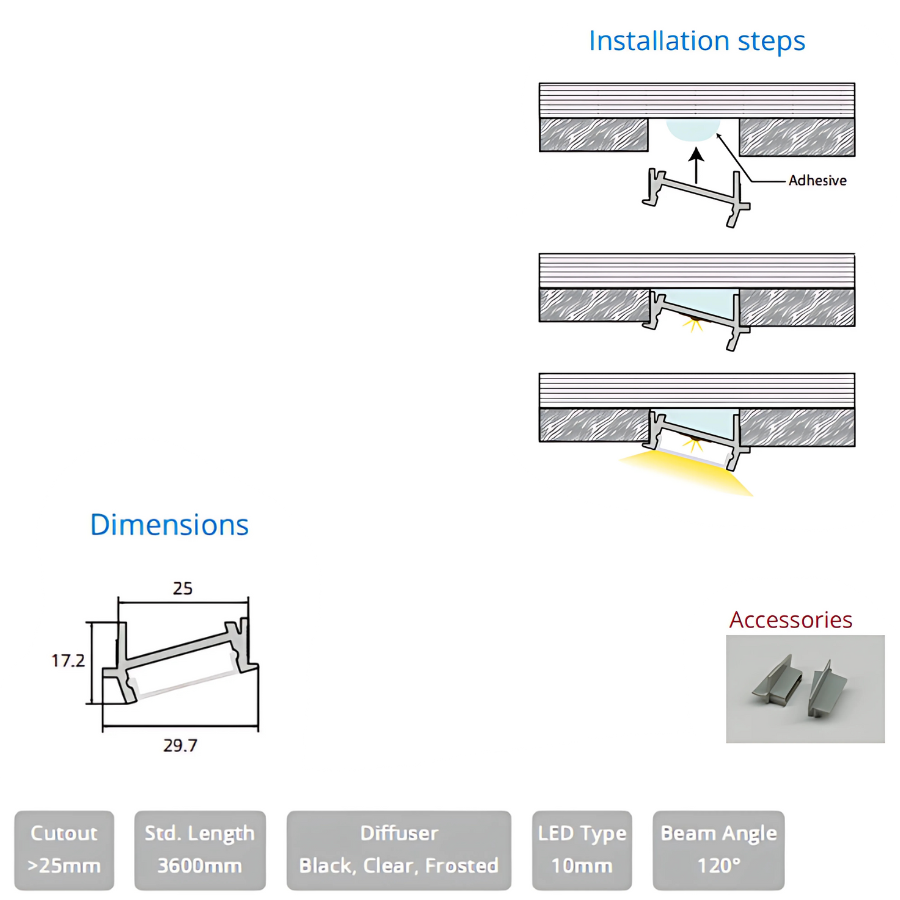

Installation Steps:

1. Prepare a groove with a cutout width >25mm.

2. Apply adhesive to secure the profile inside the groove.

3. Insert the aluminum profile and fix the LED strip.

4. Cover with your choice of diffuser (Black, Clear, or Frosted).

5. The profile emits light at a 120° angle for even diffusion.

Dimensions:

• Width: 29.7 mm

• Height: 17.2 mm

• Top Opening: 25 mm

Specifications:

• Cutout Requirement: >25 mm

• Standard Length: 3600 mm

• Diffuser Options: Black, Clear, Frosted

• LED Type: 10 mm

• Beam Angle: 120°

• Accessories: Aluminum end caps with mounting legs (as shown)

Applications:

• Shelf and under-cabinet lighting

• Niche or ceiling recess lighting

• Display and showcase illumination

• Accent lighting for architectural detailing
