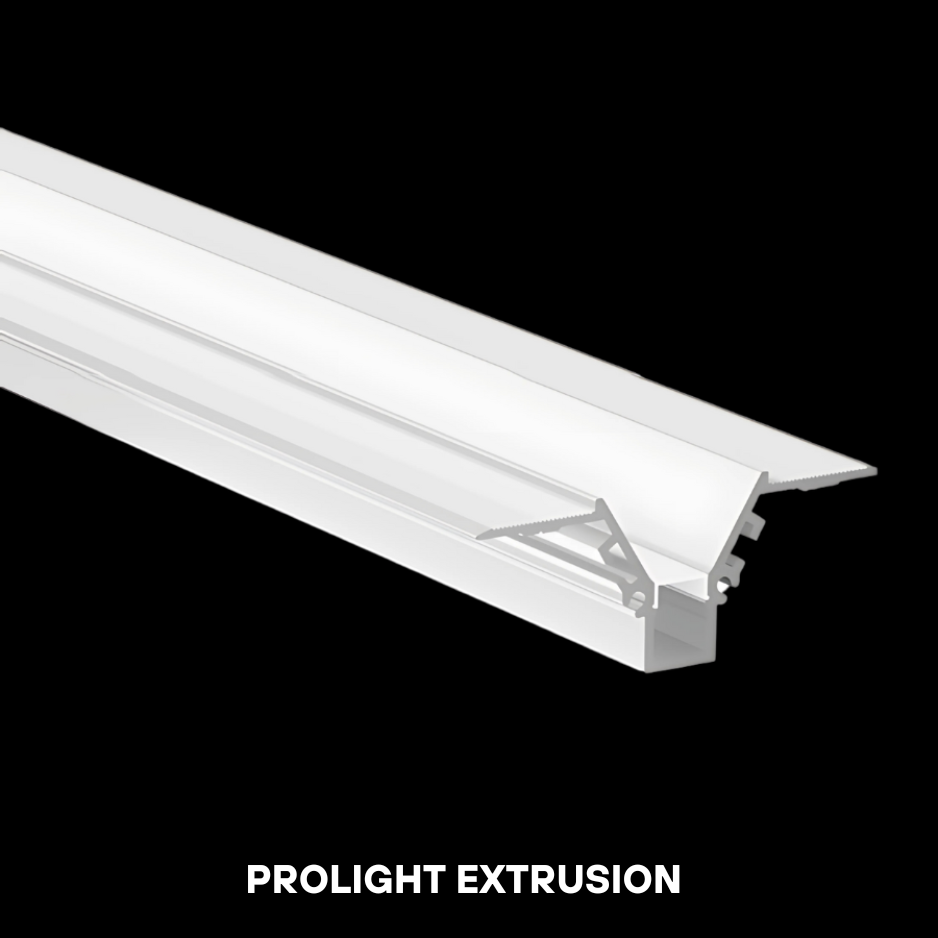

PROLIGHT EXTRUSION 29MM

The PROLIGHT EXTRUSION 29MM is a high-quality V-groove recessed linear LED profile that delivers focused illumination in architectural ceiling or wall cavities. Its angled side wings and internal diffuser placement provide a sharp, clean aesthetic, ideal for spaces demanding precision lighting and sleek integration.

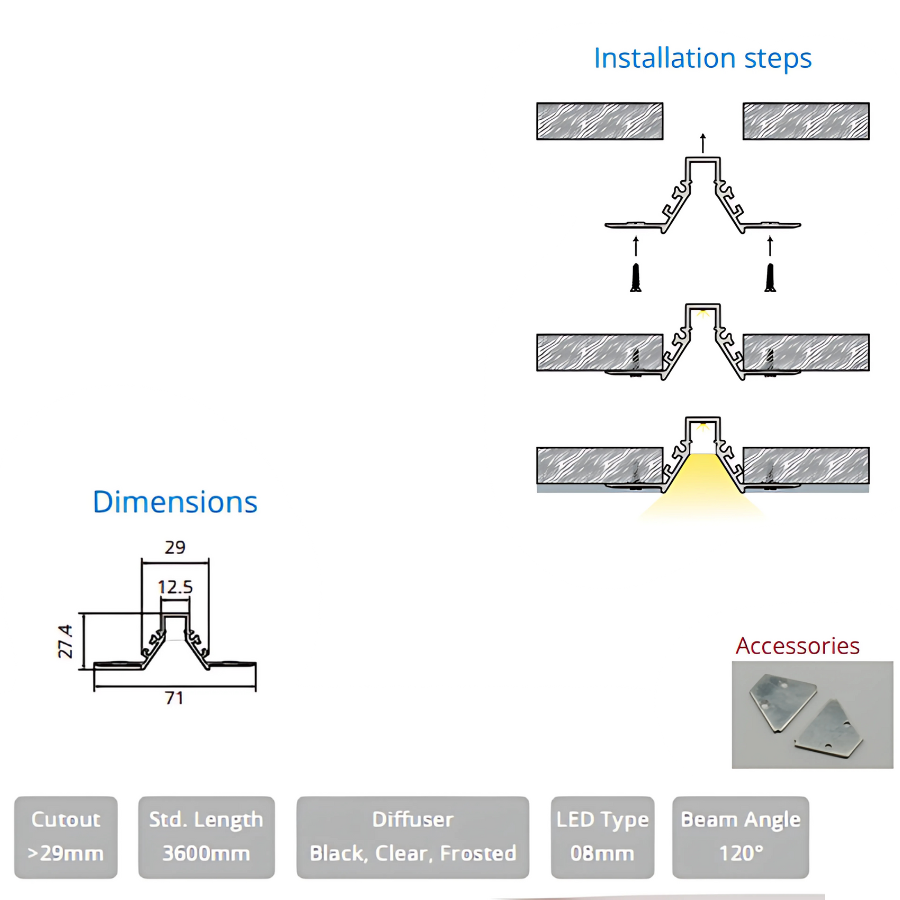

Installation Steps:

1. Prepare a cutout of more than 29mm width.

2. Insert and fix the V-profile securely into the cavity using screws.

3. Install the LED strip into the central channel.

4. Add your choice of diffuser (black, clear, or frosted) for optimal light diffusion and visual appeal.

Dimensions:

• Overall Width: 71 mm

• Internal Channel Width: 12.5 mm

• Height: 27.4 mm

• Top Channel Width: 29 mm

Specifications:

• Cutout Width Required: >29 mm

• Standard Length: 3600 mm

• Diffuser Options: Black, Clear, Frosted

• LED Compatibility: 08 mm width

• Beam Angle: 120°

Accessories Included:

• Metal triangular end caps for secure finishing (shown in the image)

Applications:

• Cove lighting in modern interiors

• Hallways and hotel corridors

• Retail ceiling slot integrations

• Indirect wall wash lighting setups
