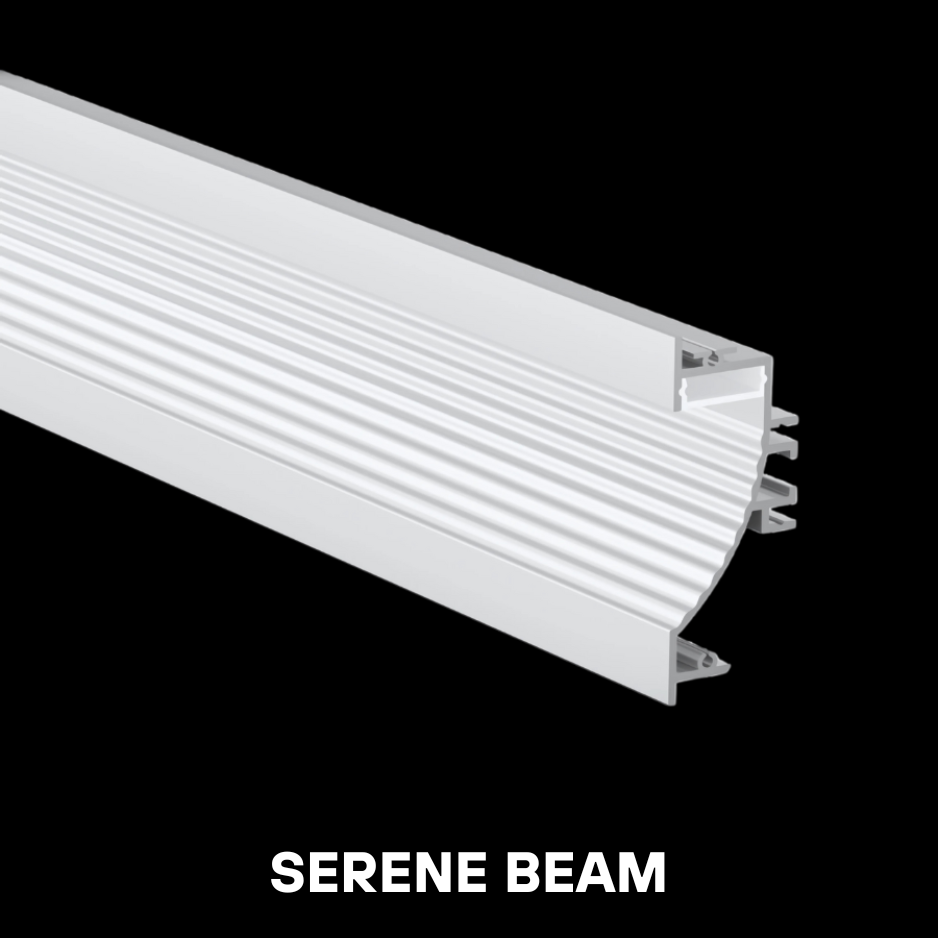

SERENE BEAM 71MM

The SERENE BEAM 71MM is a deep, architectural-grade recessed LED profile with a stylish curved diffuser design. It is ideal for vertical wall installations, providing a soft yet impactful illumination while maintaining a clean, integrated look.

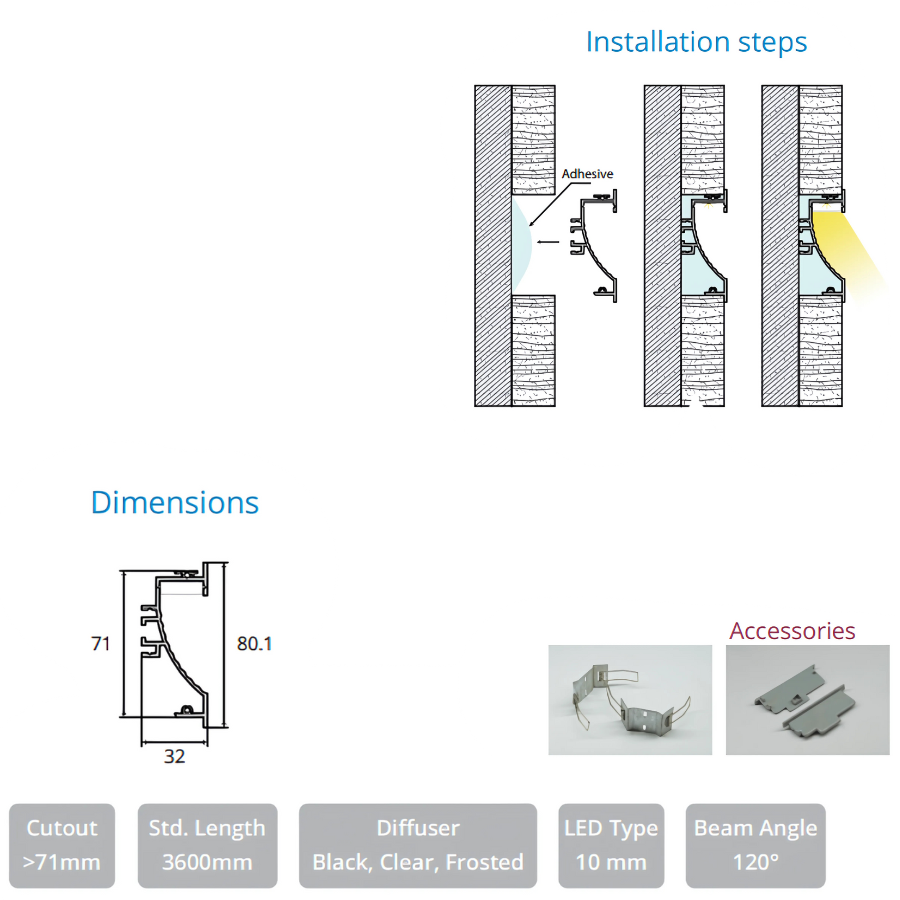

Installation Steps:

1. Create a cutout wider than 71mm in the wall surface.

2. Apply adhesive inside the channel.

3. Insert the curved aluminum profile securely into the groove.

4. Install 10mm LED strips into the profile base.

5. Attach a black, clear, or frosted diffuser to soften and spread the light.

6. Fix accessories (brackets and end caps) as needed.

7. Light spreads outward with a 120° beam angle for maximum ambient effect.

Dimensions:

• Outer Height: 80.1 mm

• Recess Depth: 71 mm

• Width: 32 mm

Specifications:

• Cutout Requirement: >71 mm

• Standard Length: 3600 mm

• Diffuser Options: Black, Clear, Frosted

• Compatible LED Strip: 10 mm

• Beam Angle: 120°

• Accessories: Mounting brackets, end caps

Applications:

• High-end wall grazing and accent lighting

• Decorative lighting in corridors and feature walls

• Contemporary commercial or residential spaces

• Hospitality and retail ambient lighting
