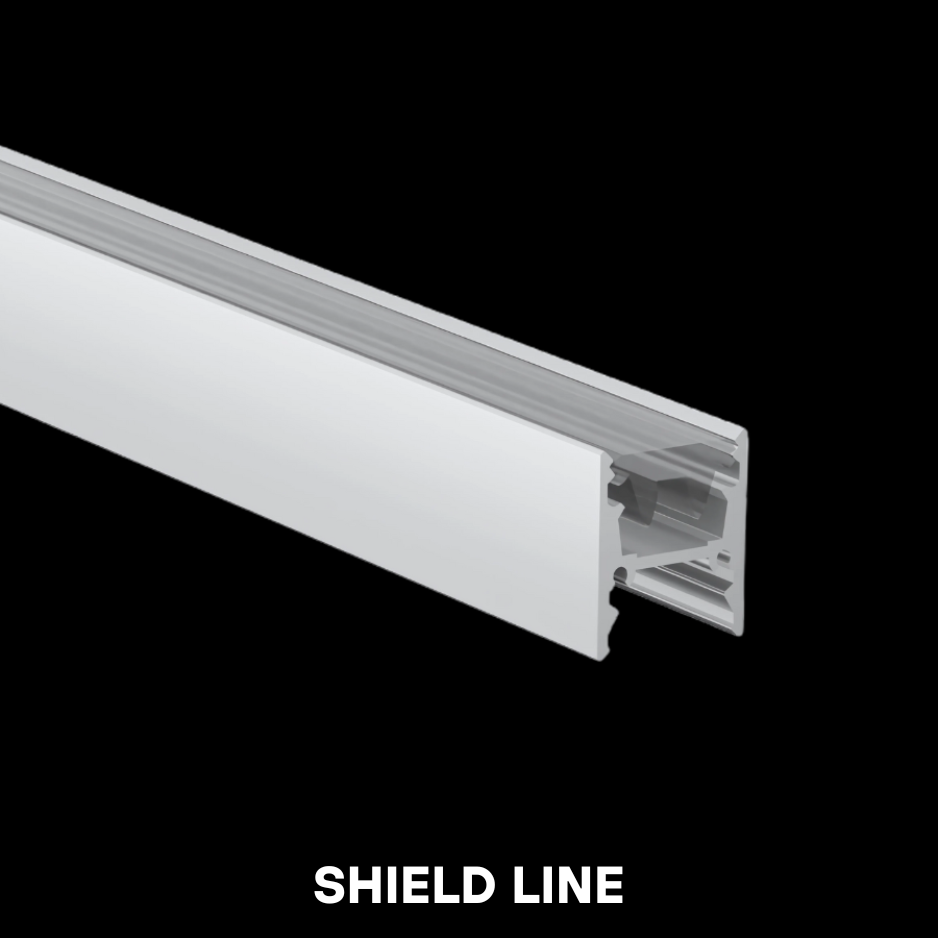

SHIELD LINE 3000MM

The SHIELD LINE 3000MM is a premium recessed aluminum LED profile designed for clean ceiling integrations. Ideal for architectural lighting, it combines a compact design with a 30° optical lens, delivering focused, glare-controlled illumination for modern interiors.

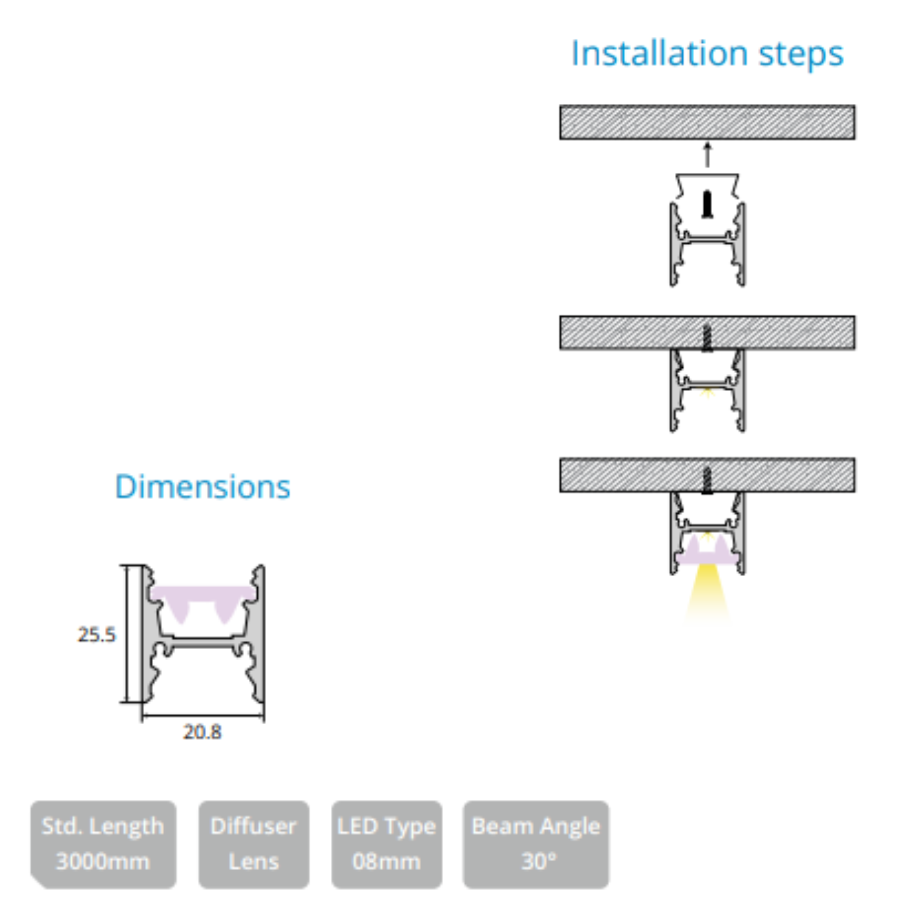

Installation Steps:

1. Insert the profile into the ceiling cutout.

2. Secure the profile using screws from the side or top.

3. Fix the 8mm LED strip inside, and attach the diffuser lens for uniform light output.

Dimensions:

• Height: 25.5 mm

• Width: 20.8 mm

Specifications:

• Standard Length: 3000 mm

• Diffuser Type: Optical Lens

• LED Compatibility: 08 mm LED Strip

• Beam Angle: 30°

• Material: High-quality anodized aluminum

Applications:

• False ceiling recess lighting

• Task lighting in offices or retail

• Minimalist linear accent lighting

• Residential coves and pathways

• Premium architectural environments
