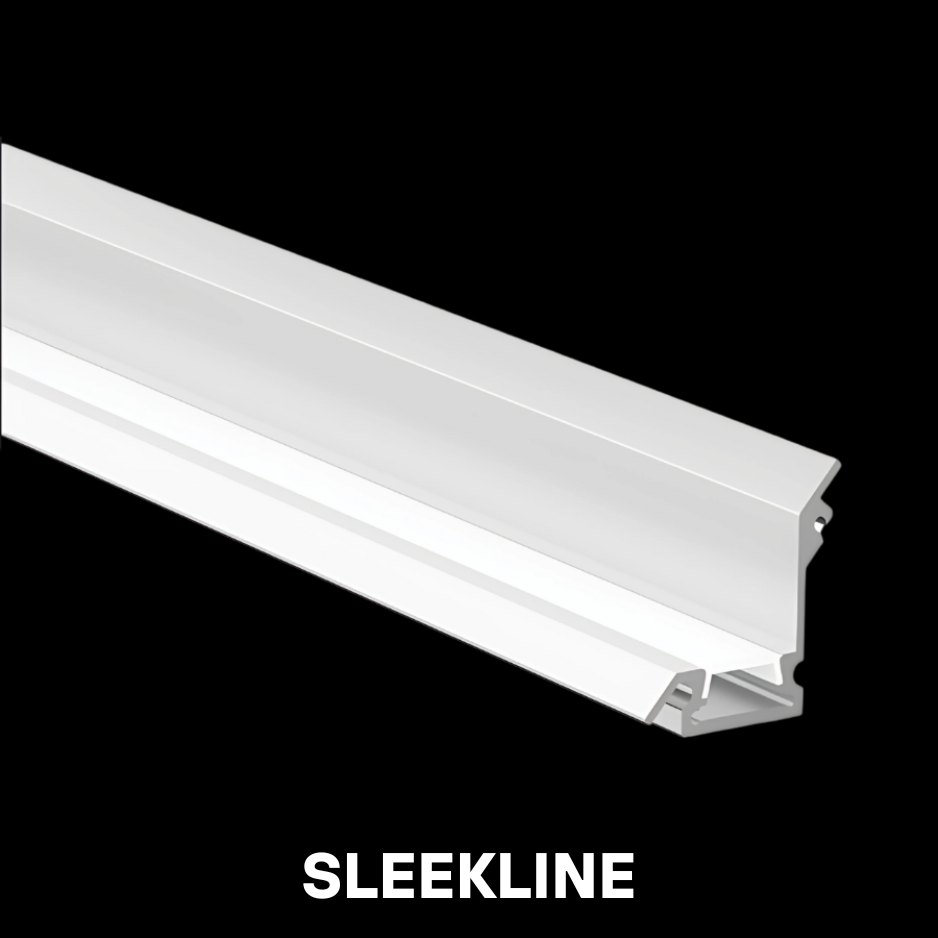

SLEEKLINE 36MM

The SLEEKLINE 36MM is a recessed V-groove aluminum LED profile specifically designed for surface-flush installations. Its angled design offers precise directional lighting, making it ideal for modern architectural applications such as furniture grooves, shelving, wall panels, and cabinetry.

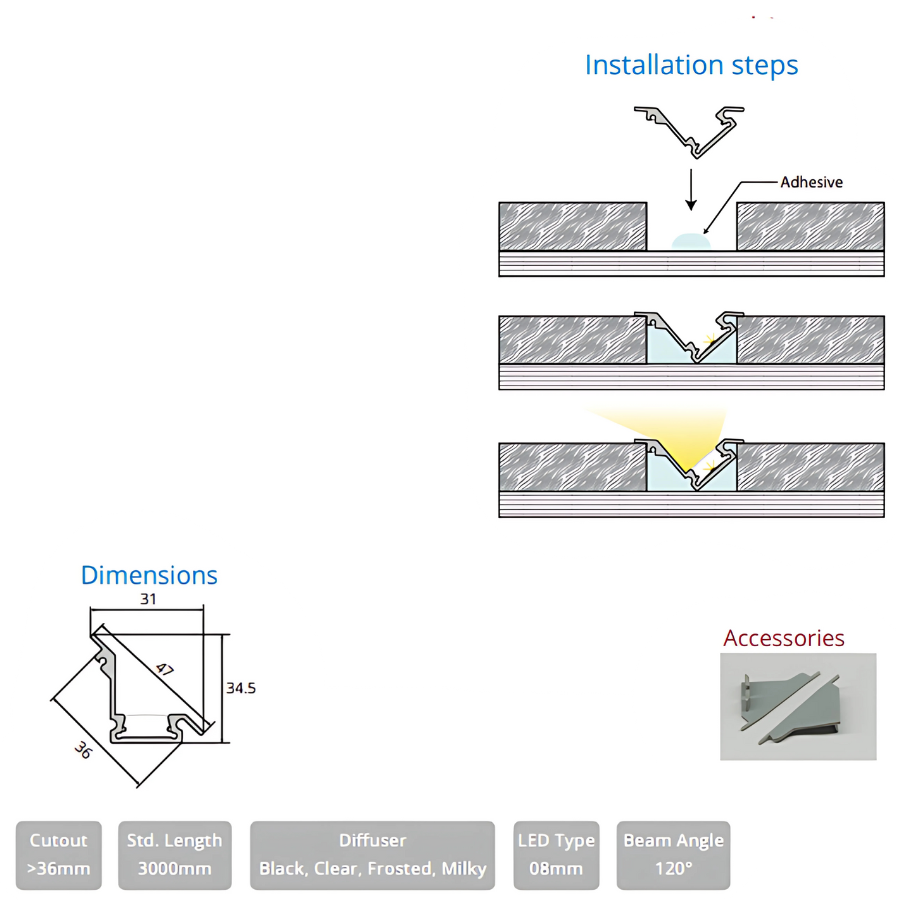

Installation Steps:

1. Cut a 36mm+ wide V-groove in the surface.

2. Apply adhesive to the channel.

3. Insert the LED profile into the groove and press into place.

4. Add diffuser and LED strip (08mm type) for final installation.

5. Emits light in a clean 120° spread.

Dimensions:

• Profile Width: 36 mm

• Height: 34.5 mm

• Mounting Width: 31 mm

• Inner LED Space: 17 mm (approx.)

Specifications:

• Cutout Requirement: >36 mm

• Standard Length: 3000 mm

• Diffuser Options: Black, Clear, Frosted, Milky

• LED Type: 08 mm

• Beam Angle: 120°

• Accessories: Mounting brackets and diffusers as shown

Applications:

• Interior architectural lighting

• Shelf and display edge lighting

• Wall panel and wardrobe lighting

• Decorative indirect cove effects
