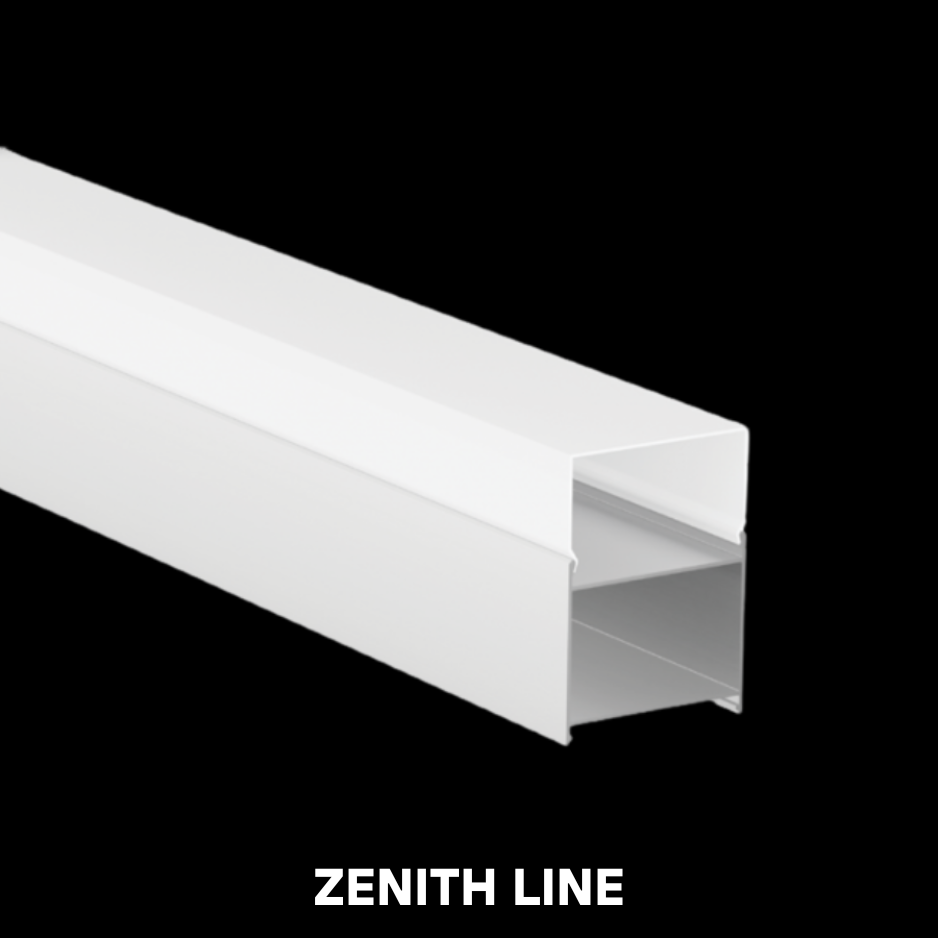

ZENITH LINE 3600MM

The ZENITH LINE 3600MM is a suspended LED profile crafted for modern architectural spaces where both aesthetics and performance matter. With its wide light dispersion and sleek square form, this profile provides even illumination, making it perfect for office, retail, or decorative installations. It accommodates 10mm LED strips and delivers a wide 120° beam angle through its frosted diffuser.

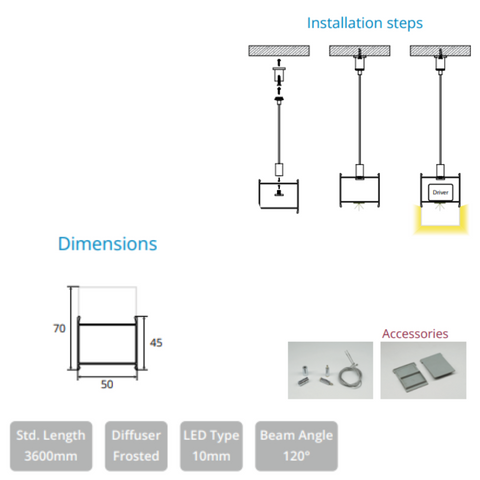

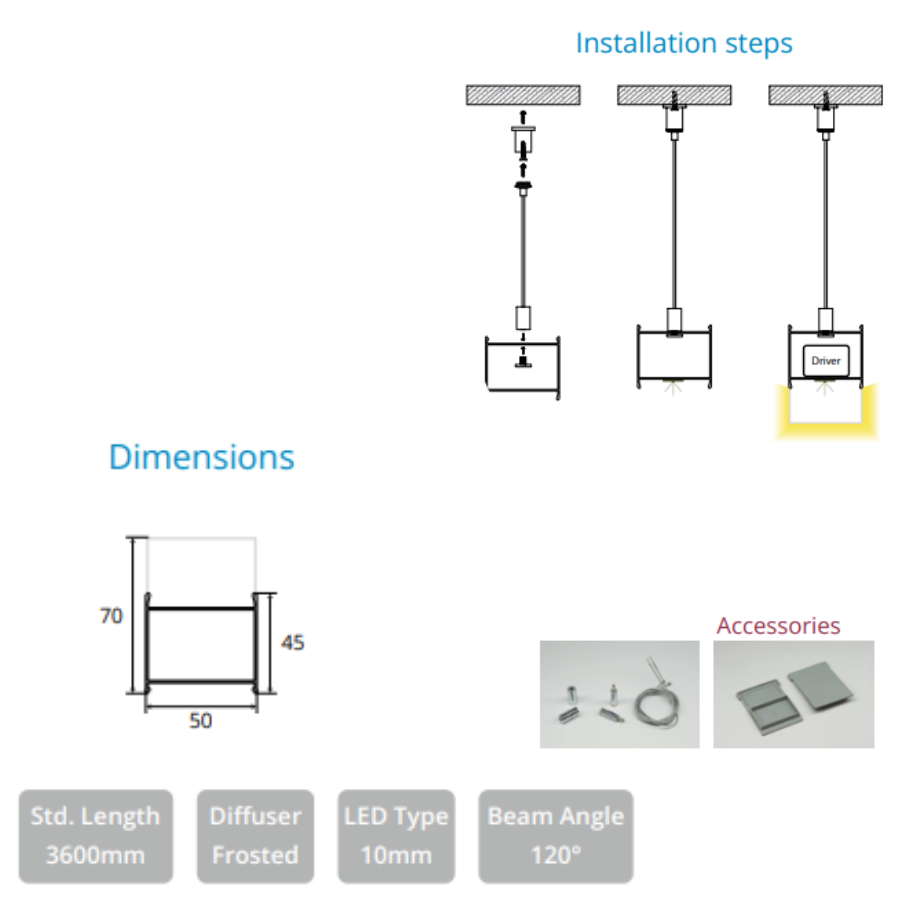

Installation Steps:

1. Secure the ceiling anchor and cable suspension system.

2. Attach the suspension wires to the profile.

3. Connect the LED strip and position the driver in the profile or canopy.

4. Install the frosted diffuser and power on the unit.

Dimensions:

• Height: 70 mm

• Width: 50 mm

• Inner Light Chamber: 45 mm

Specifications:

• Standard Length: 3600 mm

• Diffuser: Frosted for soft and uniform light

• LED Compatibility: 10 mm wide LED strip

• Beam Angle: 120° wide-angle spread

• Material: Extruded anodized aluminum

• Mounting: Suspended (hanging) with cable accessories

Included Accessories:

• Suspension cable set

• End caps

• Mounting brackets

Applications:

• Workspaces and boardrooms

• Retail lighting

• Hospitality ambient lighting

• Modern living spaces

• Exhibition and showroom setups
