D1 Rotary Casambi Switch
Price on Request
Tax excluded. Shipping calculated at checkout
D1 Rotary Casambi Switch

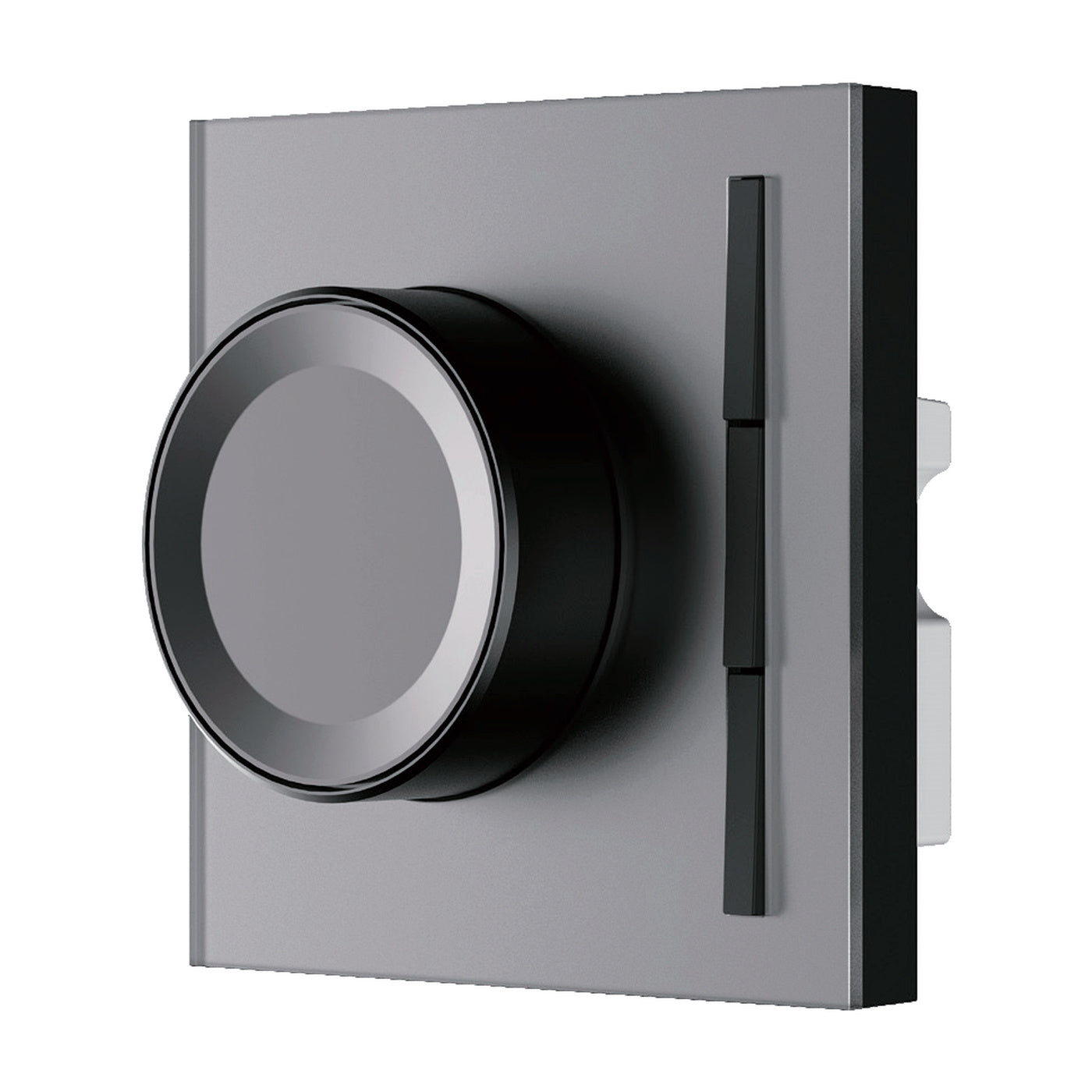

The D1 Rotary Switch is a wall-mounted Casambi control interface with an intuitive rotary knob and configurable push buttons. The knob provides smooth brightness control, while the preset buttons can be configured through the Casambi App for direct control of luminaires, groups, scenes and animations.
Key Features
- Rotary knob for smooth dimming
- Configurable preset buttons through the Casambi App
- Individual luminaire, group and all-luminaires control
- Scene and animation recall
- Bluetooth Casambi network control
- Up to 2 relays for on/off circuit-breaker function
Technical Specifications
| Product Size | 86 × 86 × 25.4 mm (knob 16 mm) |
| Bottom Shell Depth | 28 mm |
| Package Size | 100 × 100 × 75 mm |
| Weight | 0.173 kg |
| Gross Weight | 0.298 kg |
| Installation | 86 mounting box, depth > 50 mm |
| Input Voltage | 110-240VAC, 50/60Hz |
| Network Mode | Bluetooth Casambi |

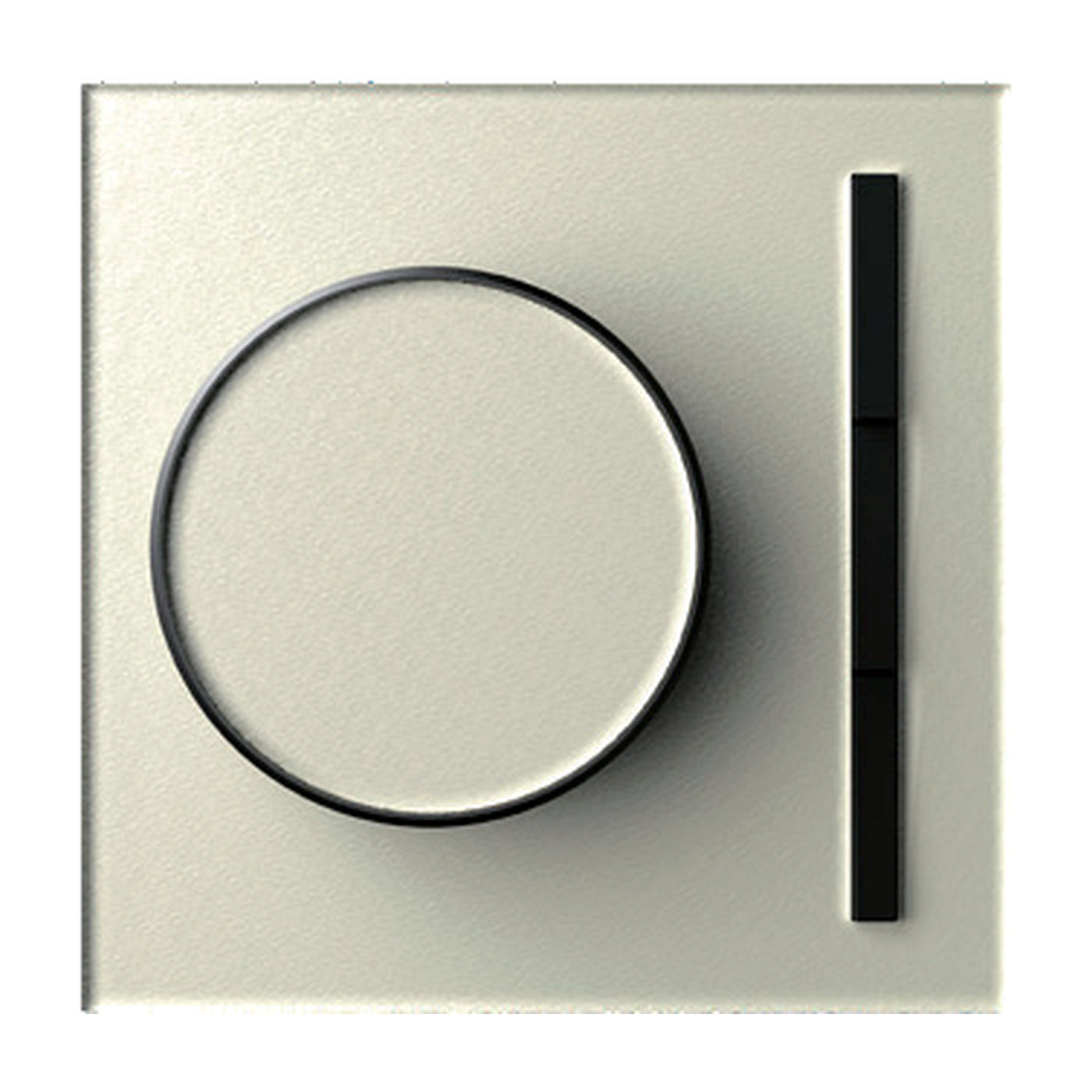

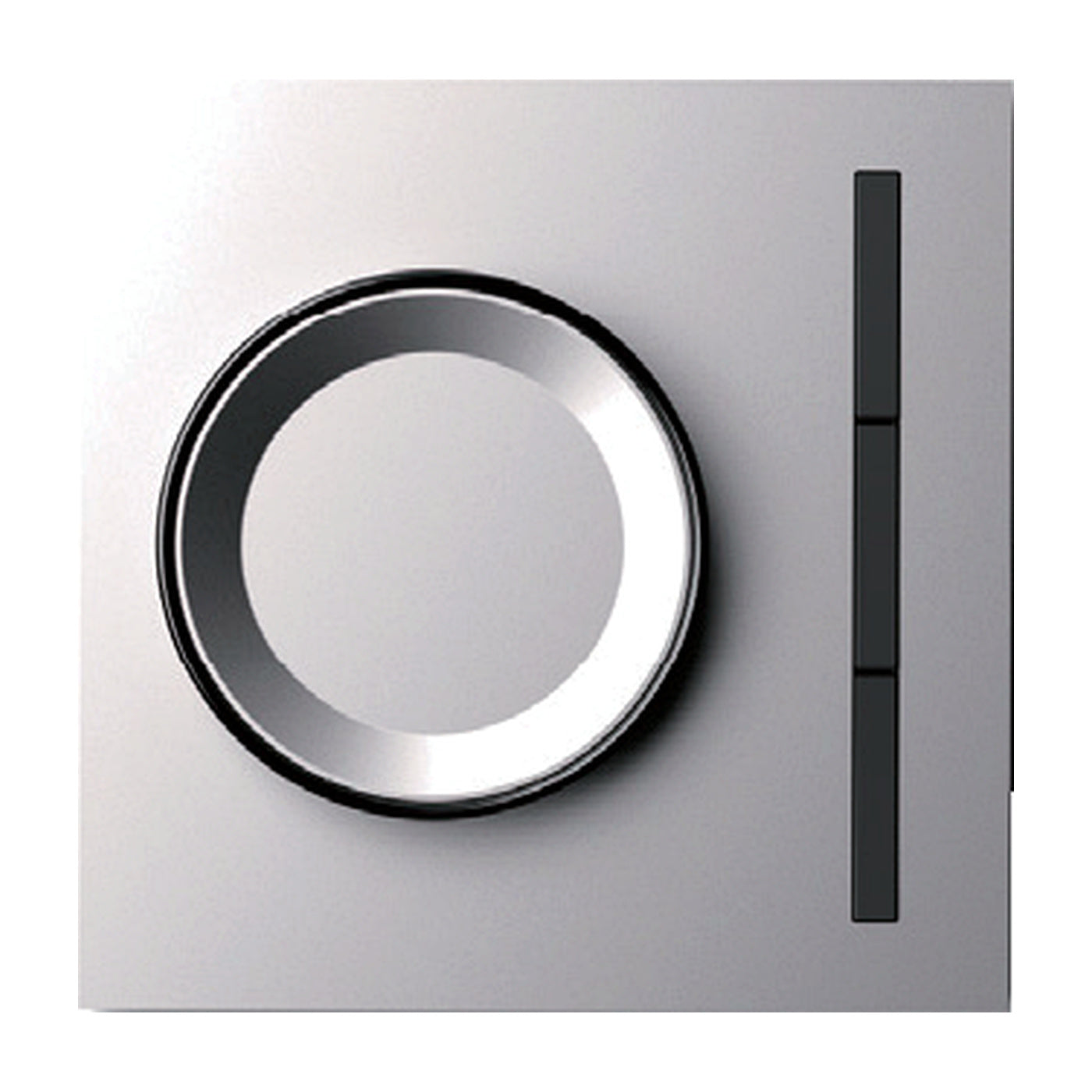

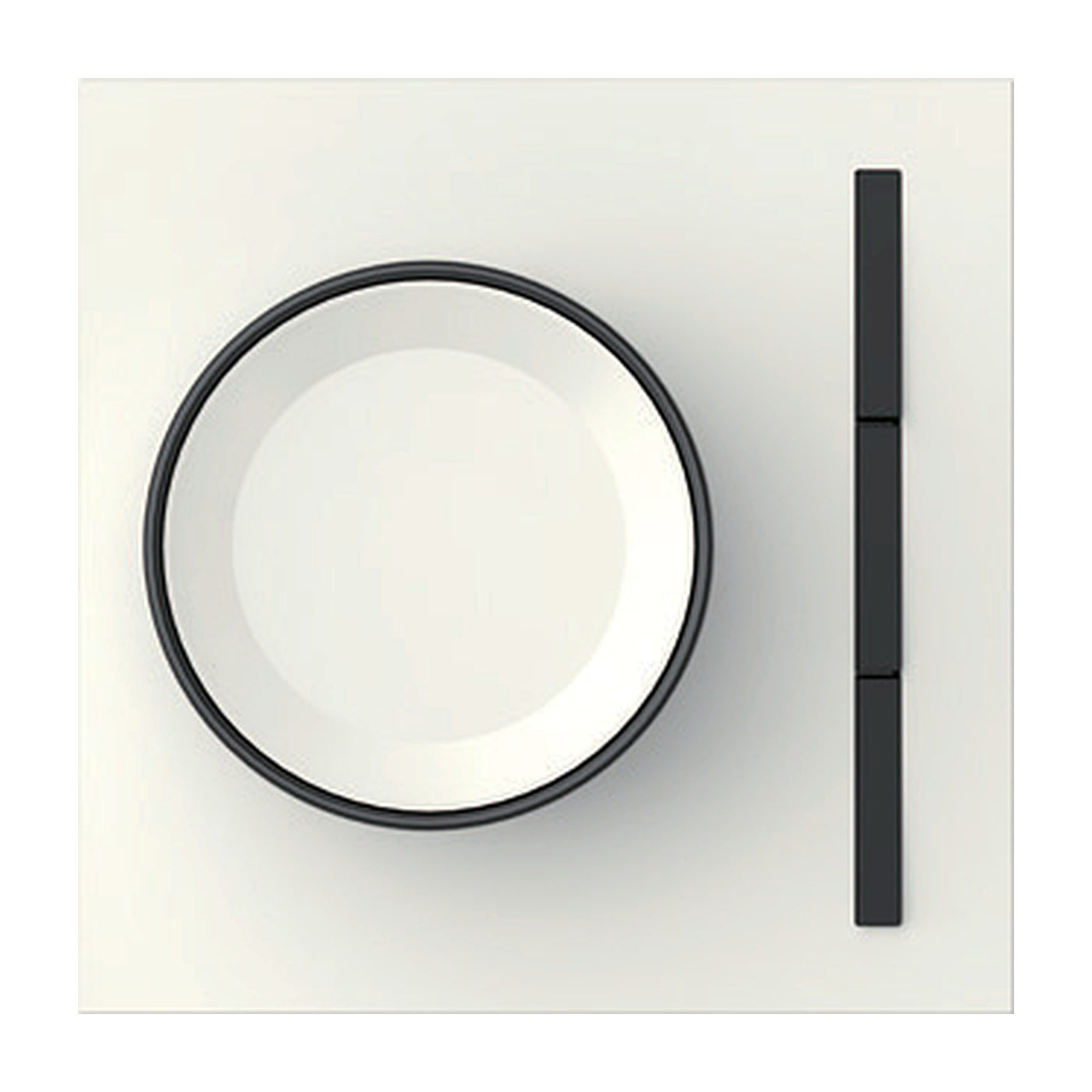

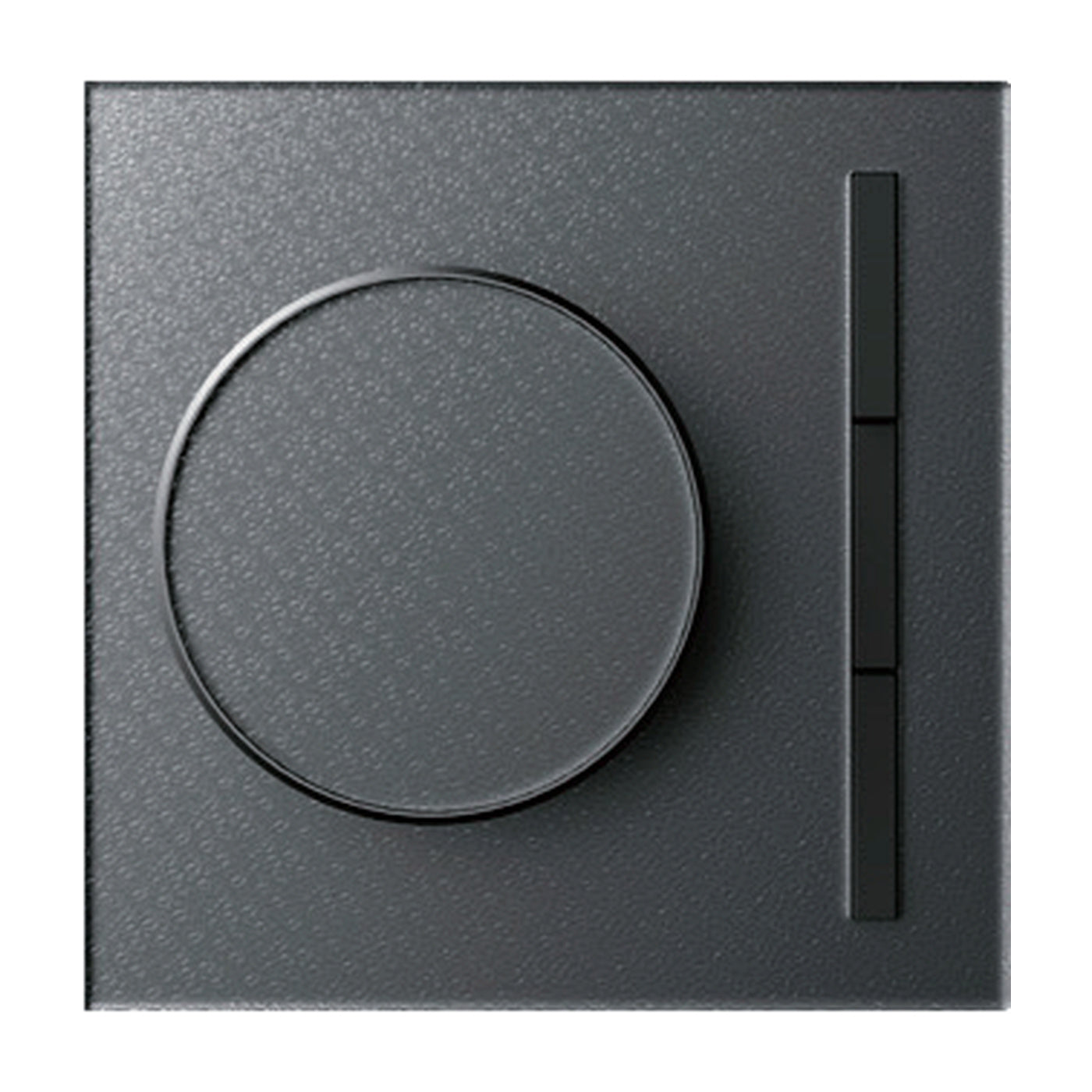

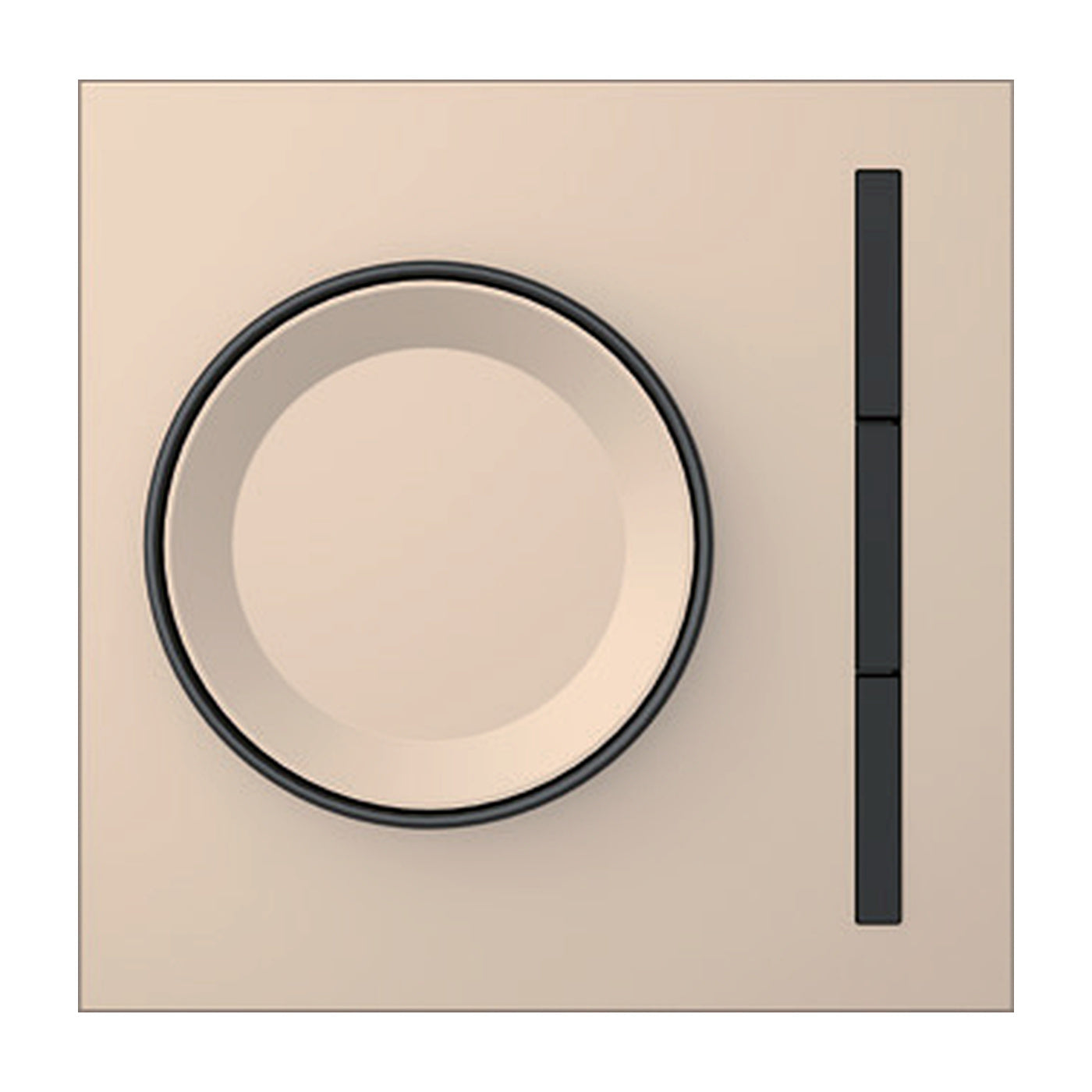

| Finish / Glass | Phantom Gray, Starlight Gold & Mica White: AG Glass Lava White & Lava Gray: Art Glass |
| Fire Rating | 94-V0 |
| Working Temperature | -10°C to +60°C |
| Working Humidity | ≤95% RH, non-condensing |
Price: Price on Request
