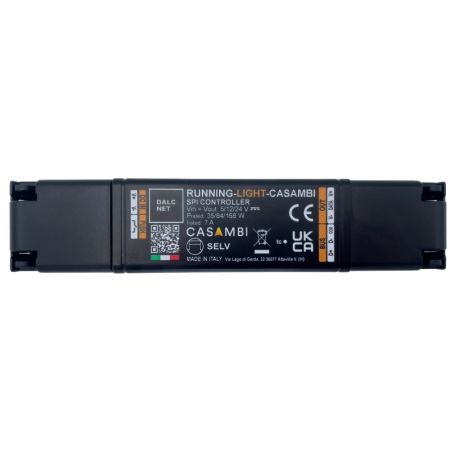

DALCNET RUNNING-LIGHT-CASAMBI SPI Pixel LED Controller

DALCNET RUNNING-LIGHT-CASAMBI

The RUNNING-LIGHT-CASAMBI is a Casambi-enabled SPI controller for pixel-to-pixel control of digital addressable LED strips. It supports RGB, RGBW and Tunable White digital LED strips and can be controlled wirelessly through the Casambi app or locally using a normally-open pushbutton.

Key Features

• Pixel-to-pixel SPI control for digital LED strips
• Casambi Bluetooth Low Energy wireless control
• Supports RGB, RGBW and Tunable White digital LED strips
• 5–24 VDC constant-voltage input
• Maximum output current: 7 A
• Up to 2000 addressable LEDs
• Up to 8 configurable dynamic effects through the Casambi app
• Adjustable colour, speed, direction, pixel length, background and transition parameters
• Local control via normally-open dry-contact pushbutton
• RS485 BUS extender output for optional PIXEL-REPEATER
• Effect duplication to a second LED strip up to 250 m away with optional PIXEL-REPEATER
• Over-voltage, under-voltage, reverse-polarity and input-fuse protection
• 5-year manufacturer warranty

Technical Specifications

Casambi Integration

Configuration is carried out in the Casambi mobile app, where the LED IC type, colour type, pixel count and animation parameters can be set. The manufacturer lists MULTI EFFECT RGB profile ID 42743 as the default RGB fixture profile.

Price: Price on Request
