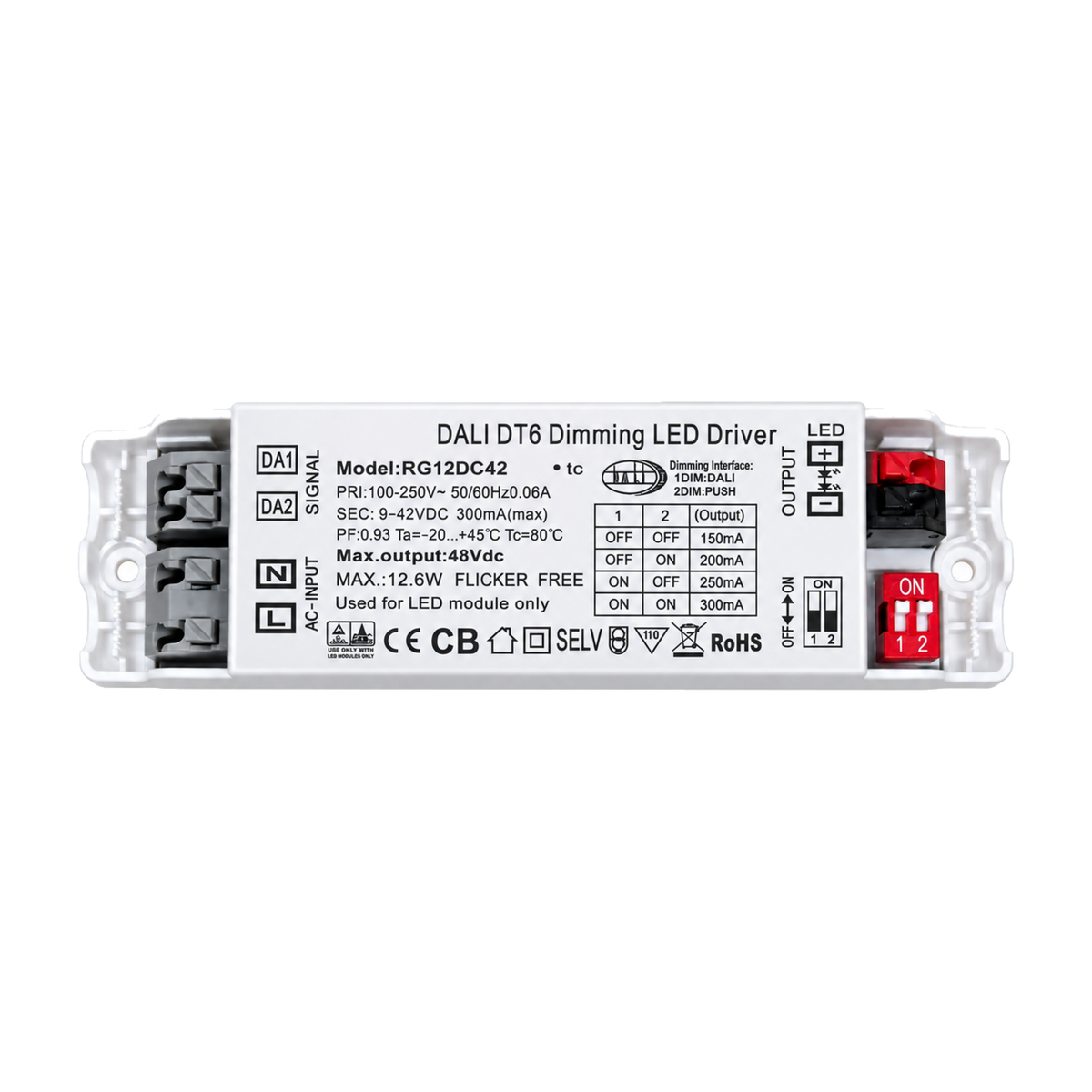

DALI DT6 12.6W Constant Current LED Driver – 150–300mA | RG12DC42
Tax excluded. Shipping calculated at checkout
DALI DT6 12.6W Constant Current LED Driver – 150–300mA
A flicker-free constant-current LED driver with DALI DT6 dimming, PUSH dimming and selectable output current for LED module applications.
Technical Specifications
| Model | RG12DC42 |
| Input Voltage | 100–250VAC, 50/60Hz |
| Input Current | 0.06A |
| Output Voltage | 9–42VDC |
| Maximum Output Current | 300mA |
| Selectable Output Current | 150 / 200 / 250 / 300mA |
| Maximum Output Power | 12.6W |
| Maximum Output Voltage | 48VDC |
| Power Factor | 0.93 |
| Dimming Interface | DALI + PUSH |
| DALI Type | DT6 |
| Output Current Selection | DIP switch |
| Flicker | Flicker Free |
| Ambient Temperature (Ta) | -20°C to +45°C |
| Case Temperature (Tc) | 80°C |
| Application | LED modules |
DIP Switch Current Settings
| 1 | 2 | Output |
| OFF | OFF | 150mA |
| OFF | ON | 200mA |
| ON | OFF | 250mA |
| ON | ON | 300mA |
