DISC-SQUARE 12W–18W Diffused Recessed Downlight

DISC-SQUARE · 12W–18W

DISC-SQUARE is a square recessed LED downlight with a diffused light aperture, a 110° beam and CRI 80+. Choose 12W or 18W, a white or black body, and a supported True-driver, RF, Alexa/Tuya smart or True DALI configuration.

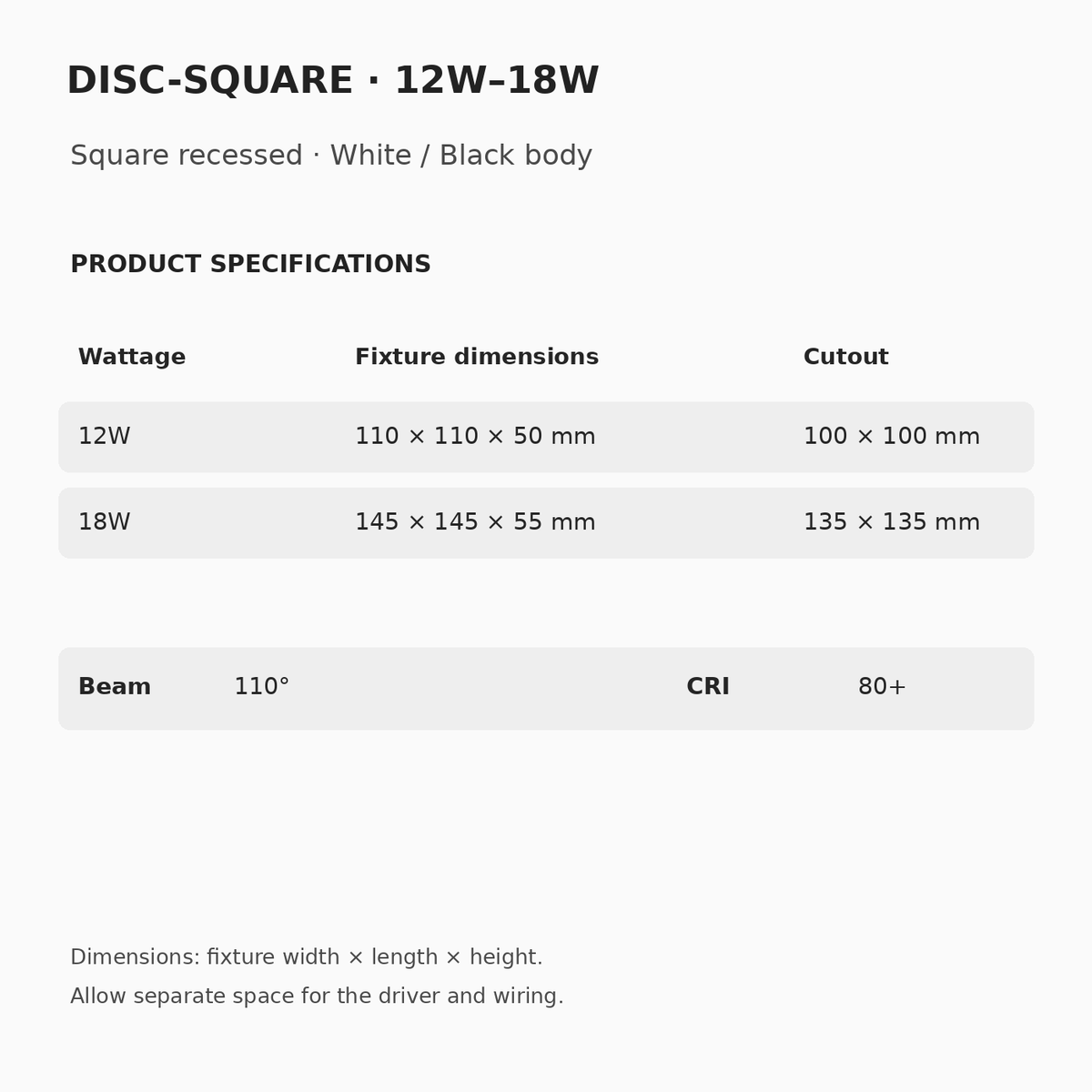

Product specifications

Beam options: 110°. CRI: 80+. These specifications apply to every listed wattage.

The listed fixture width × length × height is 110 × 110 × 50 mm for 12W and 145 × 145 × 55 mm for 18W. Matching square ceiling cutouts are 100 × 100 mm and 135 × 135 mm respectively. Confirm the selected size and mounting template before cutting. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

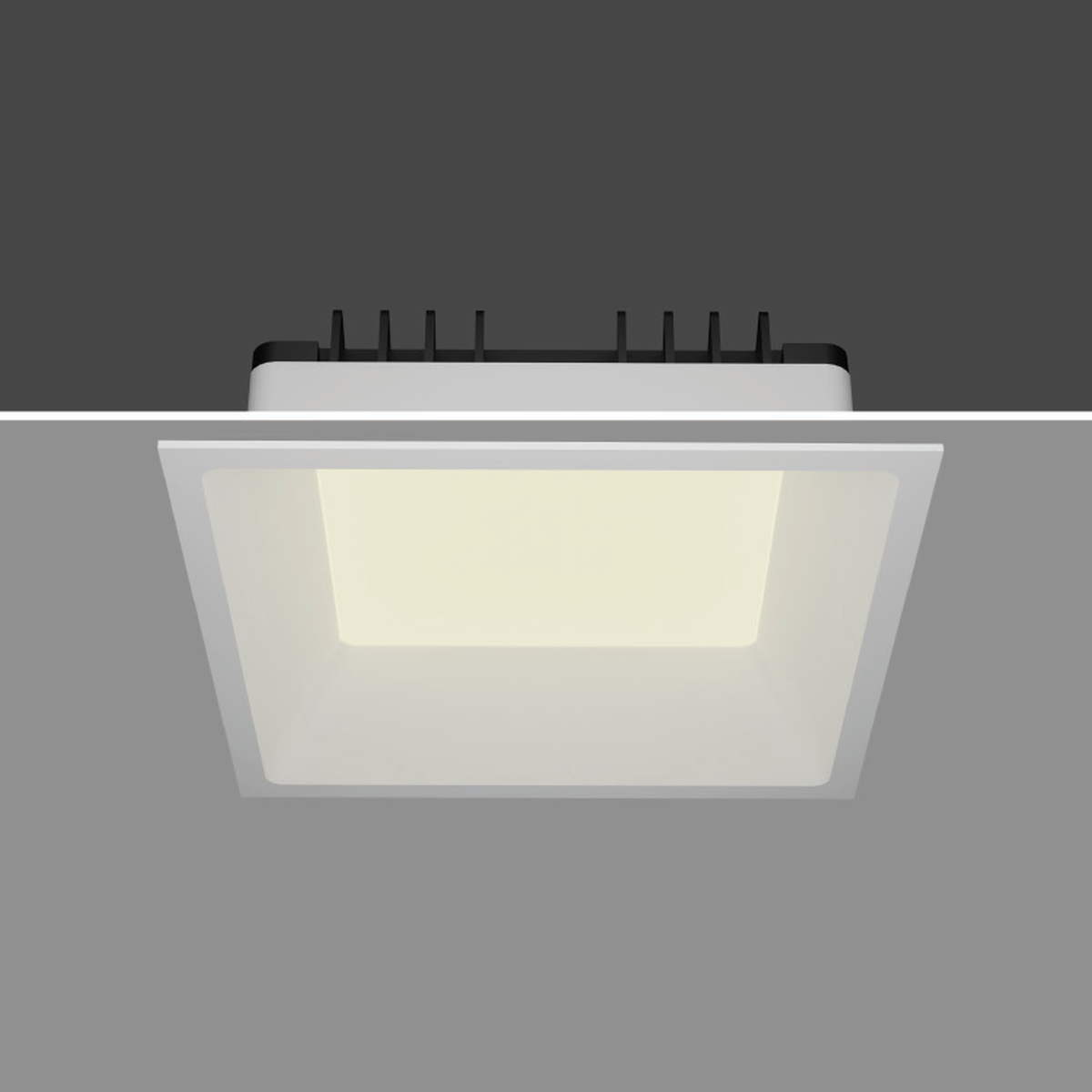

The original white-body photograph is a family reference and does not identify the pictured wattage. It is not assigned to wattage or finish variants. A black-body photograph is unavailable.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 12W, 18W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 12W, 18W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 12W, 18W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 12W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 12W, 18W.

DALI configurations require a compatible DALI control system. True DT6 is offered only for 12W; True DT8 is offered for 12W and 18W. Confirm controller and accessory requirements before ordering.

Configuration prices excluding GST

12W

18W

Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
