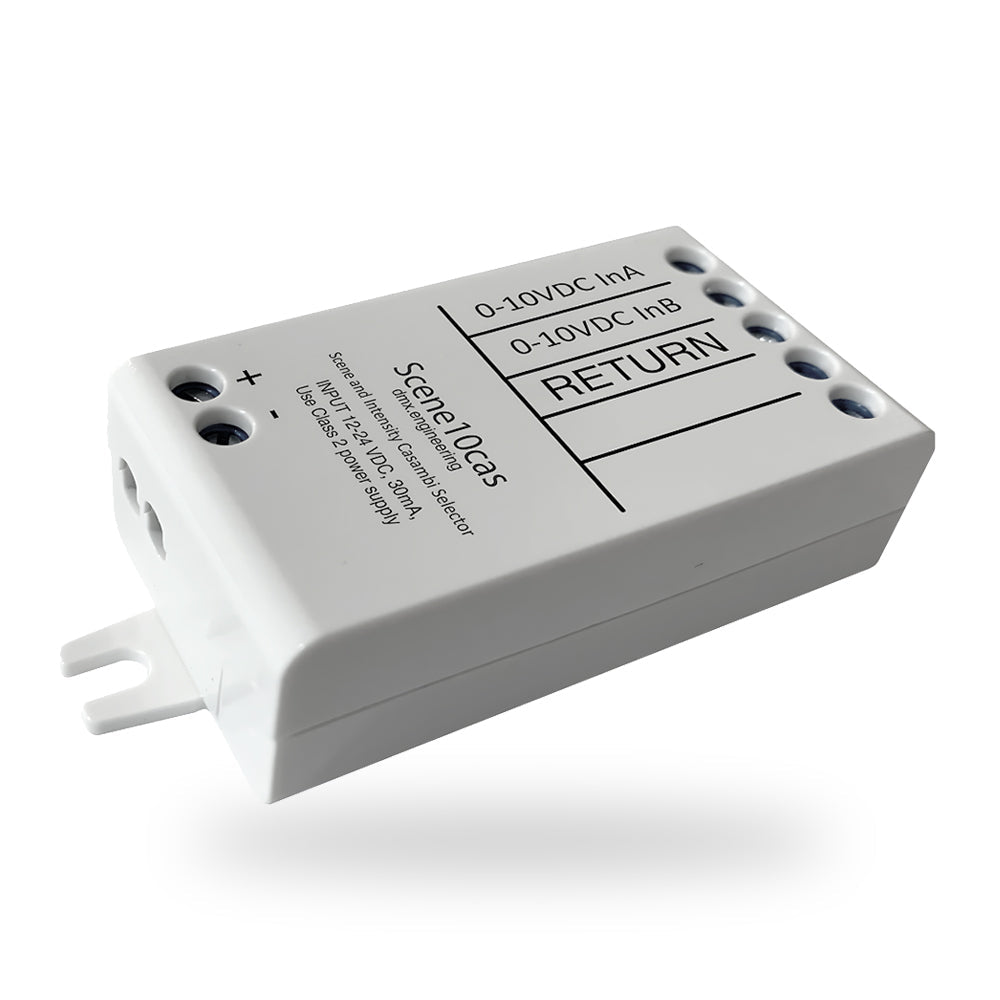

DMX Engineering Scene10cas 0-10V to Casambi Scene Selector
Price on Request
Tax excluded. Shipping calculated at checkout
DMX Engineering Scene10cas
Scene10cas is a Casambi gateway designed to connect a standard two-channel 0–10VDC analog dimming controller to a Casambi lighting-control network for remote scene selection and scene intensity control.
Key Features
- 0–10VDC analog input to Casambi scene-control gateway
- Two-channel 0–10VDC input
- Channel 1 selects predefined Casambi scenes using voltage segments
- Channel 2 provides 0–100% intensity control for the selected scene
- Supports up to 10 predefined Casambi scenes
- User-programmable top and bottom trim and hysteresis for noisy or limited-range analog signals
- Configured through the Casambi app
- 12–24 VDC Class 2 supply
Technical Specifications
| Brand | DMX Engineering |
| Model / SKU | Scene10cas |
| Product Type | 0–10VDC to Casambi Scene Selector / Gateway |
| Supply Voltage | 12–24 VDC, Class 2 |
| No-load Input Current | 30 mA |
| Analog Input | 2-wire 0–10VDC, 2 channels |
| Input Source Current | 1 mA; control input must sink current |
| Scene Capacity | Up to 10 predefined Casambi scenes |
| Channel 1 | Scene selection |
| Channel 2 | 0–100% selected-scene intensity |
| Signal Adjustment | User-programmable top/bottom trim and hysteresis |
| Wireless | Casambi Bluetooth mesh |
| Radio Frequency | 2.401–2.483 GHz |
| Wire Range | 0.5–1.5 mm² / 14–22 AWG |
| Operating Temperature | -25°C to +45°C |
| Storage Temperature | -25°C to +75°C |
| Relative Humidity | 0–80%, non-condensing |
| Dimensions | 72.6 × 30.0 × 18.0 mm |
| Weight | 23 g |
Casambi Integration
Scene10cas converts the first analog channel into scene-selection voltage windows and uses the second analog channel for intensity. Scene count, trim and hysteresis are configured as Casambi parameters for reliable integration with 0–10V master controls.
