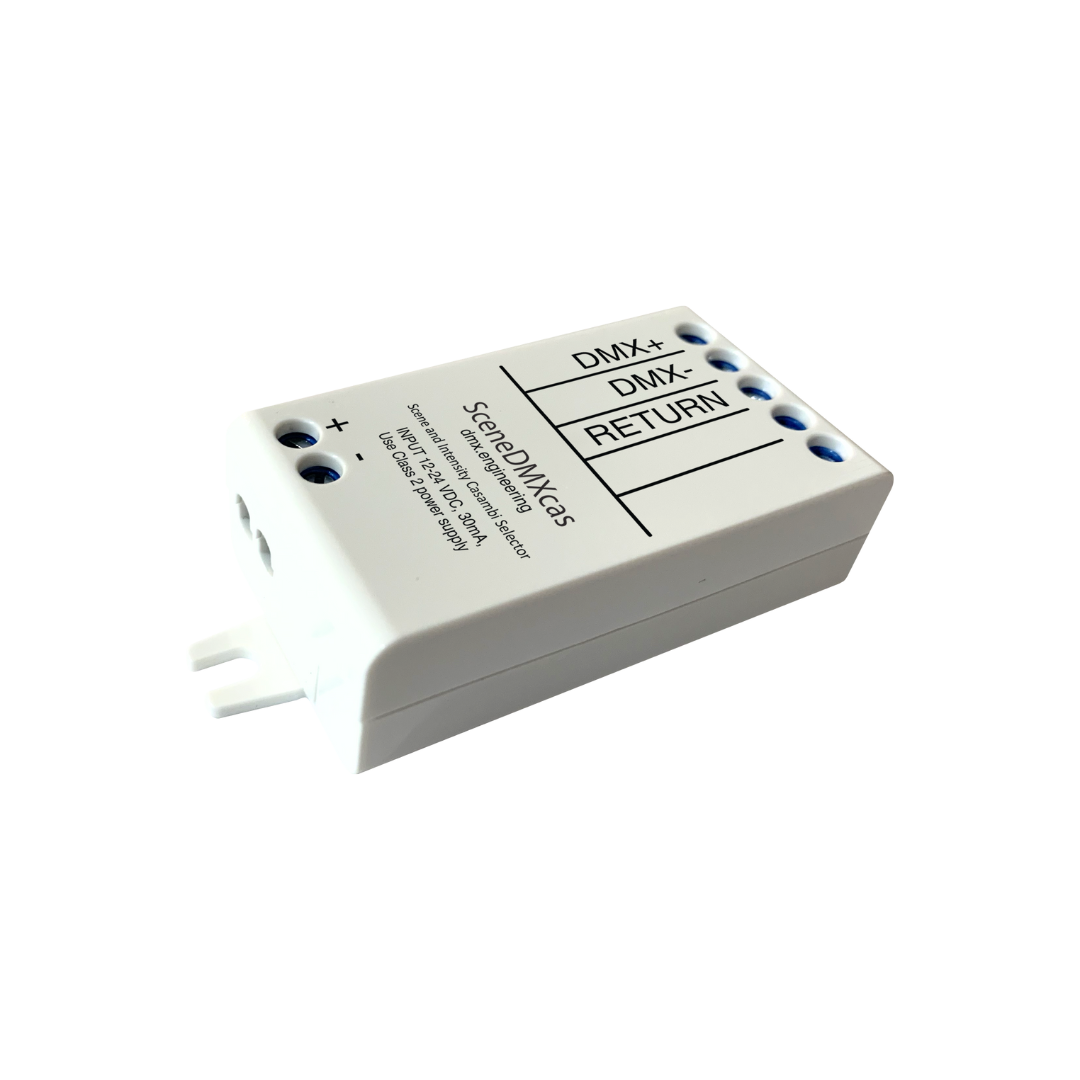

DMX Engineering SceneDMXcas DMX to Casambi Scene Selector
Price on Request
Tax excluded. Shipping calculated at checkout
DMX Engineering SceneDMXcas
SceneDMXcas is a Casambi gateway designed to connect a standard DMX digital master controller to a Casambi lighting-control network for remote scene selection and scene intensity control.
Key Features
- DMX to Casambi scene-control gateway
- Decodes 2 DMX channels
- First DMX channel selects up to 20 predefined Casambi scenes
- Second DMX channel provides 0–100% intensity control for the selected scene
- User-selectable DMX start address
- Configured through the Casambi app
- 12–24 VDC Class 2 supply
- Designed for indoor Casambi lighting-control integration
Technical Specifications
| Brand | DMX Engineering |
| Model / SKU | SceneDMXcas |
| Product Type | DMX to Casambi Scene Selector / Gateway |
| Supply Voltage | 12–24 VDC, Class 2 |
| No-load Input Current | 30 mA |
| DMX Control | 2 DMX channels |
| Scene Capacity | Up to 20 predefined Casambi scenes |
| Scene Intensity | 0–100% |
| DMX Start Address | User selectable |
| Wireless | Casambi Bluetooth mesh |
| Radio Frequency | 2.401–2.483 GHz |
| Wire Range | 0.5–1.5 mm² / 14–22 AWG |
| Operating Temperature | -25°C to +45°C |
| Storage Temperature | -25°C to +75°C |
| Relative Humidity | 0–80%, non-condensing |
| Dimensions | 72.6 × 30.0 × 18.0 mm |
| Weight | 23 g |
Installation Note
For reliable Casambi radio performance, avoid installing the device inside a metal enclosure. If an enclosure is required, use a suitable non-metallic enclosure and follow applicable electrical installation requirements.
