DRAPE-T 9W Recessed Downlight
Tax excluded. Shipping calculated at checkout
DRAPE-T · 9W
DRAPE-T is a 9W round recessed LED downlight with CRI 80+ and a white or black body finish. Choose fixed white, RF tunable white, Alexa/Tuya smart, DALI DT6 or DALI DT8 control.

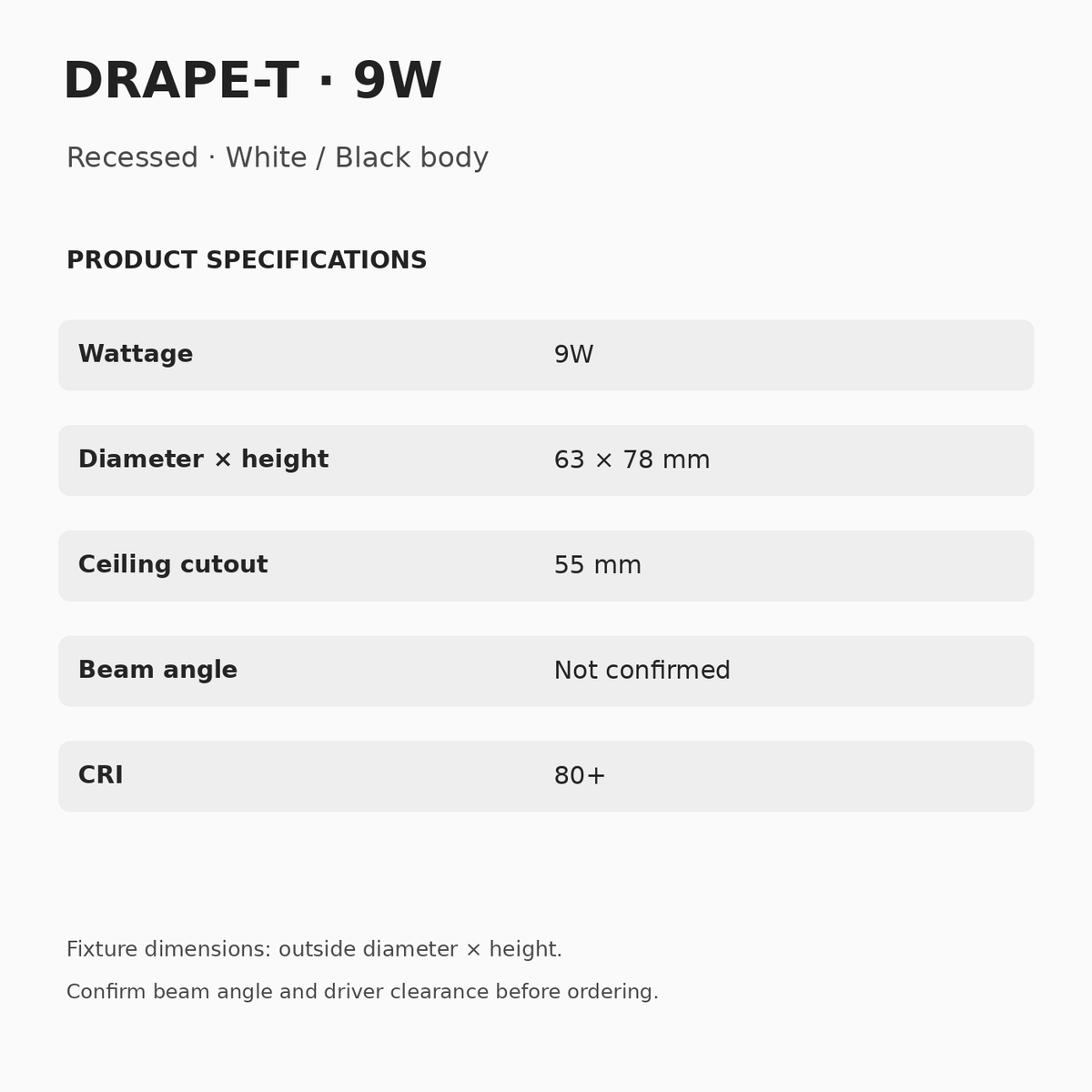

Product specifications
| Wattage | 9W |
|---|---|
| Fixture dimensions | 63 × 78 mm |
| Ceiling cutout | 55 mm |
| Beam angle | Not confirmed |
| CRI | 80+ |
| Body finish | White / Black |
Recessed mounting. Fixture dimensions are 63 mm outside diameter × 78 mm height, with a separate 55 mm ceiling cutout. Beam angle is not confirmed for this listing. Confirm it before ordering. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

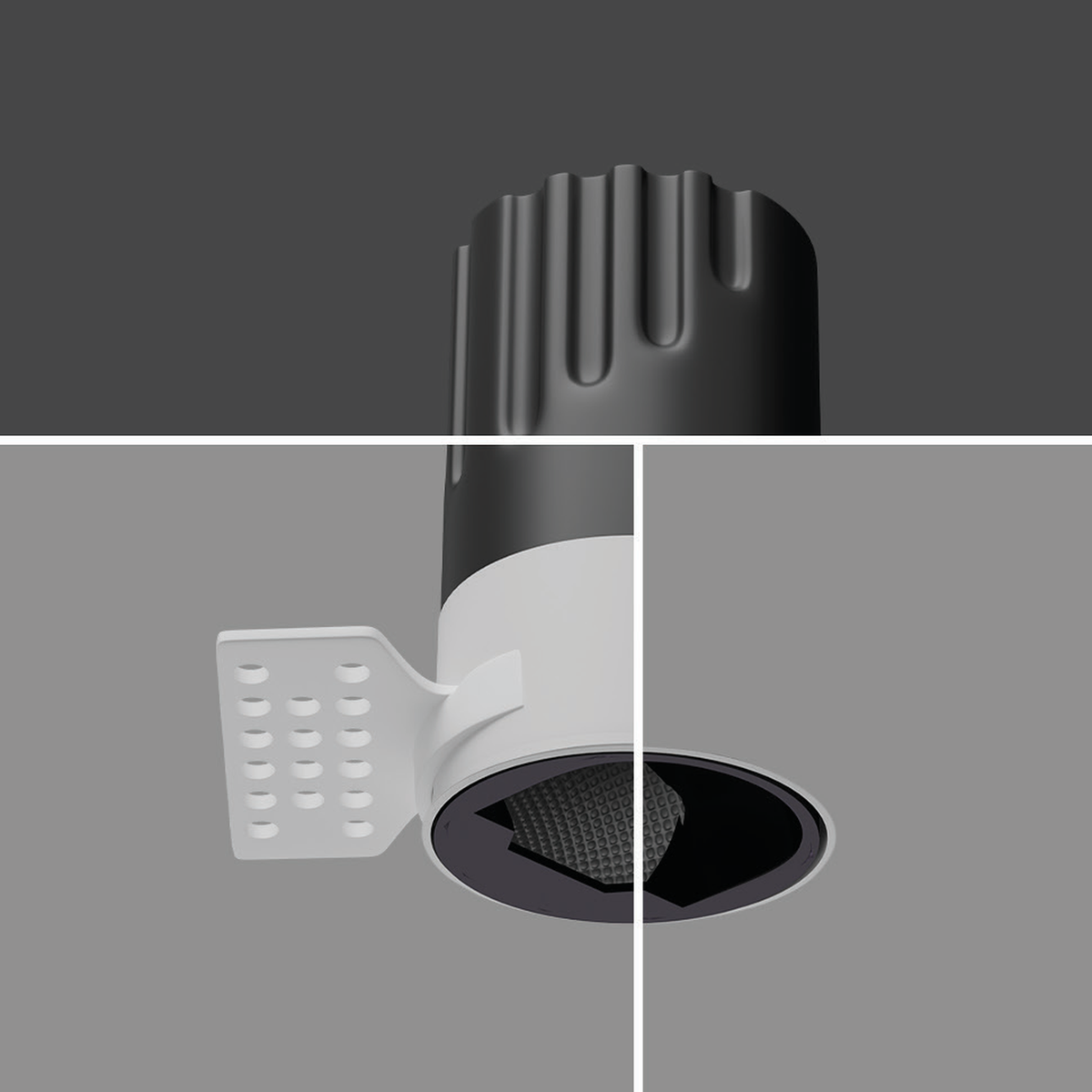

The product image is the white-body DRAPE-T installation reference. A black-body reference image is not available, so the gallery image does not show the selected black finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 9W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 9W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 9W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 9W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 9W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,405.50 |
| CCT-RF remote | ₹5,832.20 |
| Alexa/Tuya smart | ₹6,037.90 |
| DALI / True DT6 | ₹6,644.00 |
| DALI Tunable / True DT8 | ₹8,247.80 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
