DUPPLE-SF 7W, 12W & 18W Surface Downlight
Tax excluded. Shipping calculated at checkout
DUPPLE-SF · 7W, 12W & 18W
DUPPLE-SF is a cylindrical surface-mounted LED downlight in 7W, 12W and 18W, with CRI 80+ and 15°, 24°, 36° or 55° beam options. Choose a white or black body and a supported light-colour and control configuration. RF and smart choices are available for 12W and 18W.

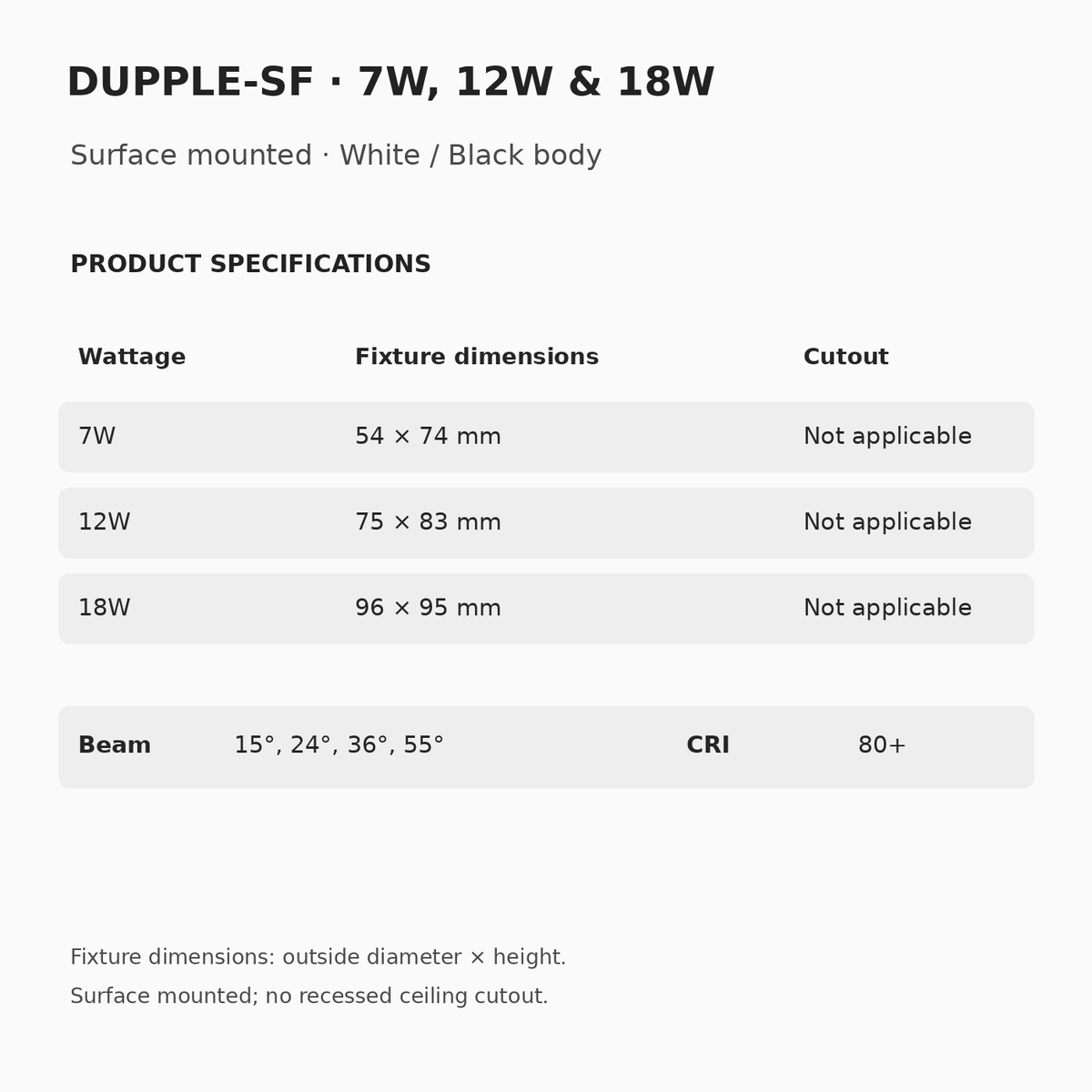

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 7W | 54 × 74 mm | Not applicable |
| 12W | 75 × 83 mm | Not applicable |
| 18W | 96 × 95 mm | Not applicable |
Beam options: 15°, 24°, 36°, 55°. CRI: 80+. These specifications apply to every listed wattage.
Surface mounting; no recessed ceiling cutout applies. Fixture dimensions are outside diameter × height. Confirm a suitable mounting surface and wiring route. Confirm driver accommodation and installation clearance with your installer.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

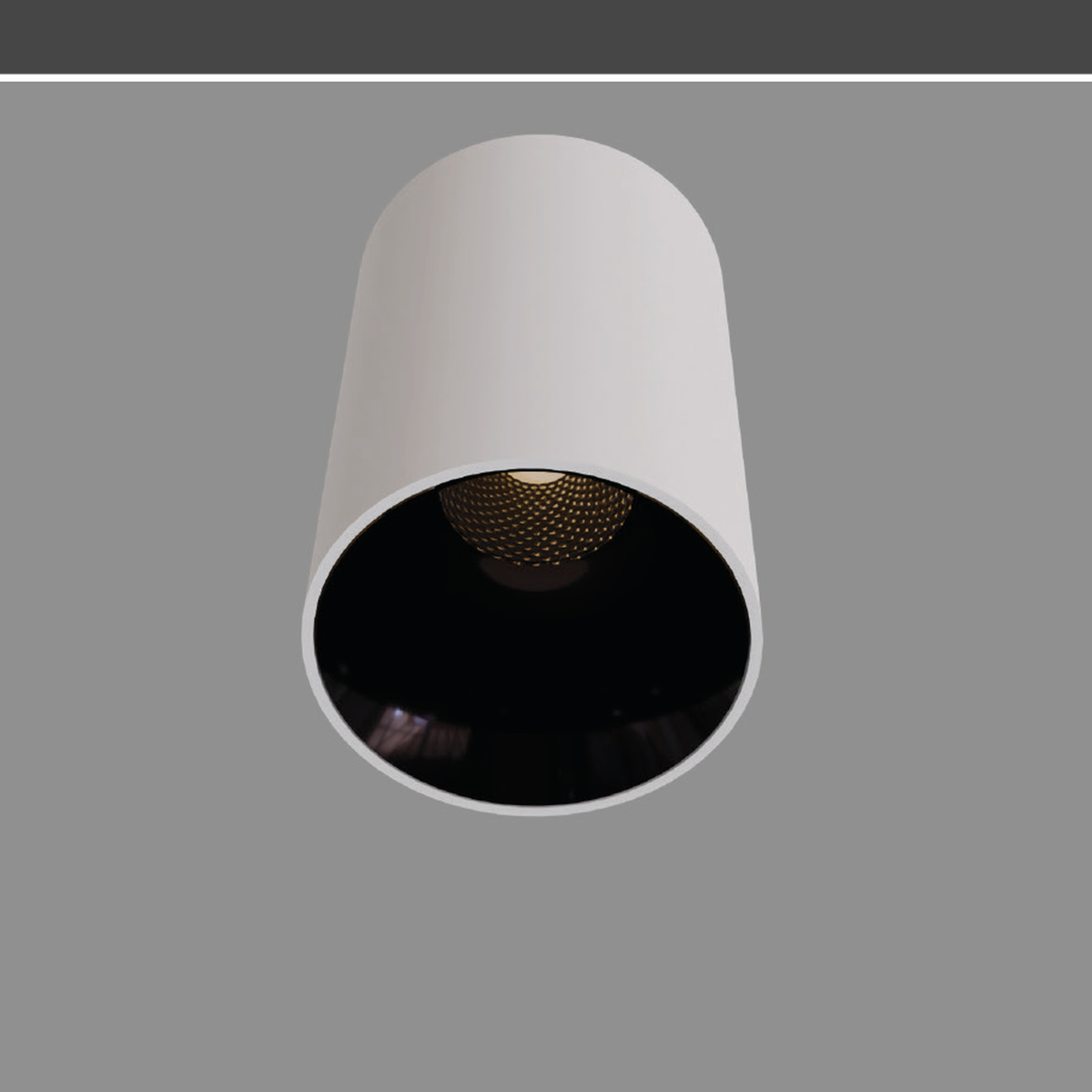

The product image is a white-body DUPPLE-SF reference; the exact wattage shown is not identified. A black-body reference image is not available, so the gallery image does not show the selected black finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 7W, 12W, 18W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 12W, 18W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 12W, 18W.
RF and smart configurations require suitable compatible controls. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
7W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,463.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,831.50 |
| CCT-RF remote | ₹3,628.90 |
| Alexa/Tuya smart | ₹3,628.90 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
18W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,860.00 |
| CCT-RF remote | ₹5,755.20 |
| Alexa/Tuya smart | ₹5,755.20 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. A honeycomb mesh accessory is available by enquiry; confirm compatibility, price and inclusion before ordering. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s fitting dimensions, mounting surface and wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
