EDGE LINE 50MTR

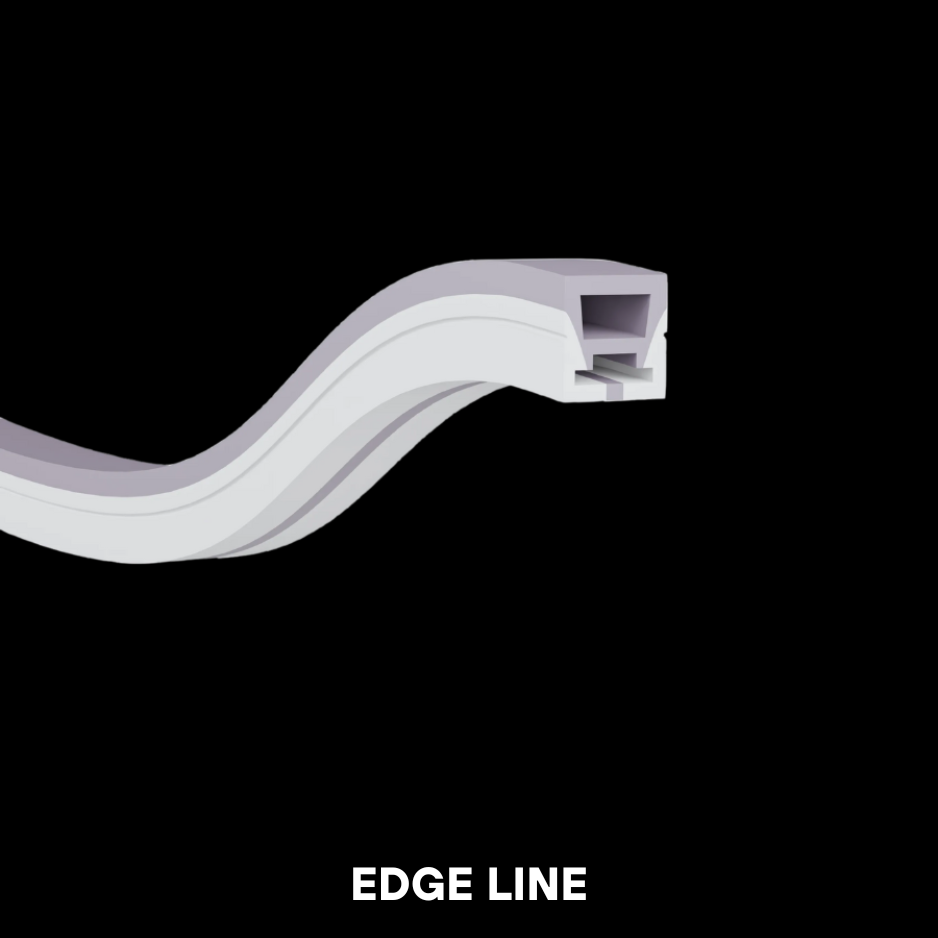

The EDGE LINE 50MTR aluminum profile is a premium-grade square profile ideal for architectural and linear LED lighting applications. With a precise 16mm x 16mm design, this model ensures both clean aesthetics and functional brilliance, enhancing lighting distribution while protecting LED strips.

Key Features:

• Compact Square Design:
  With both width and height at 16mm, this profile is designed for symmetry and uniform diffusion, making it perfect for recessed or surface mounting.

• Optimized for 10mm LED Strips:
  Accommodates 10mm wide LED strips, ensuring compatibility with a wide range of standard LED products.

• Wide Beam Angle:
  Offers a 120° beam spread, ideal for ambient or task lighting, minimizing hotspots and maximizing illumination.

• Long-Run Capability:
  Supplied in standard 50-meter rolls, this profile is suited for continuous installations without segmentation.

Technical Specifications:

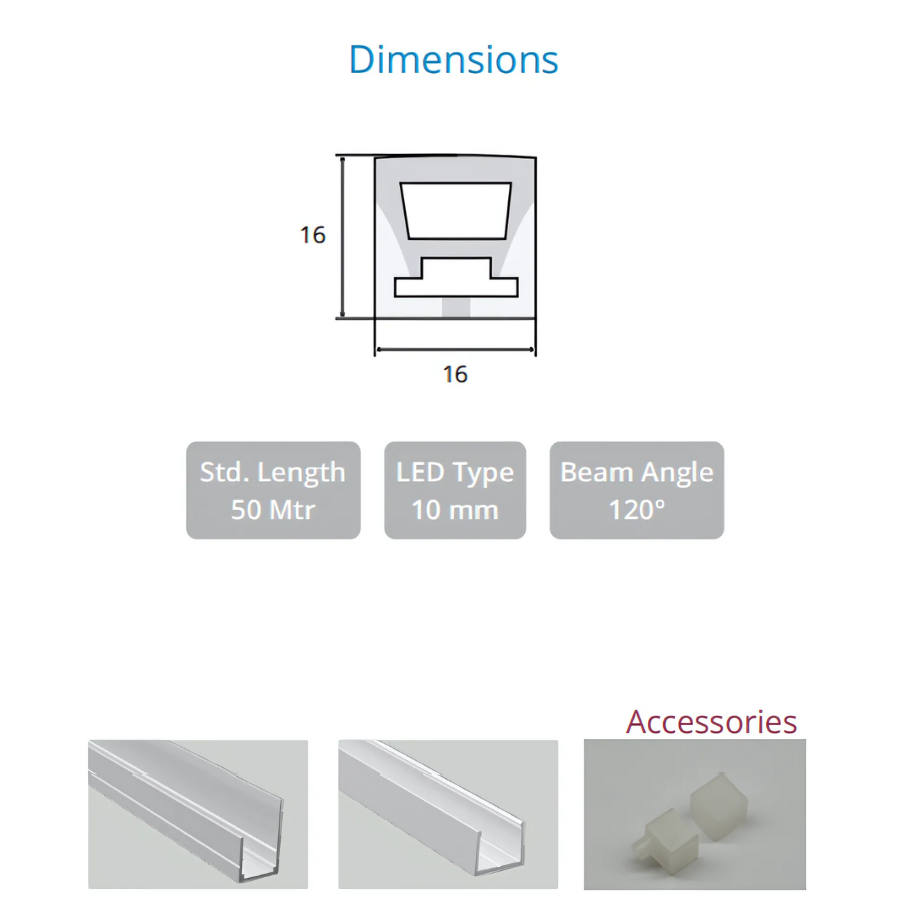

• Outer Dimensions: 16mm (W) × 16mm (H)

• LED Strip Compatibility: Up to 10mm width

• Beam Angle: 120°

• Standard Roll Length: 50 meters

• Material: High-quality anodized aluminum for excellent thermal management and durability

Accessories Included:

• End Caps – Shown in the image with and without cable entry

• Mounting Profiles – Two styles of diffuser/cover options visible (frosted/clear or flat/arched)

Applications:

• Cove lighting

• Wardrobe & under-cabinet lighting

• Architectural linear lighting

• Shelf and showcase lighting

• Retail and commercial environments
