ELLIPSE Recessed Downlight – 7W & 12W
Tax excluded. Shipping calculated at checkout
ELLIPSE
ELLIPSE is a round recessed architectural downlight. Choose 7W, 12W with the required body finish, beam angle and light/control configuration.

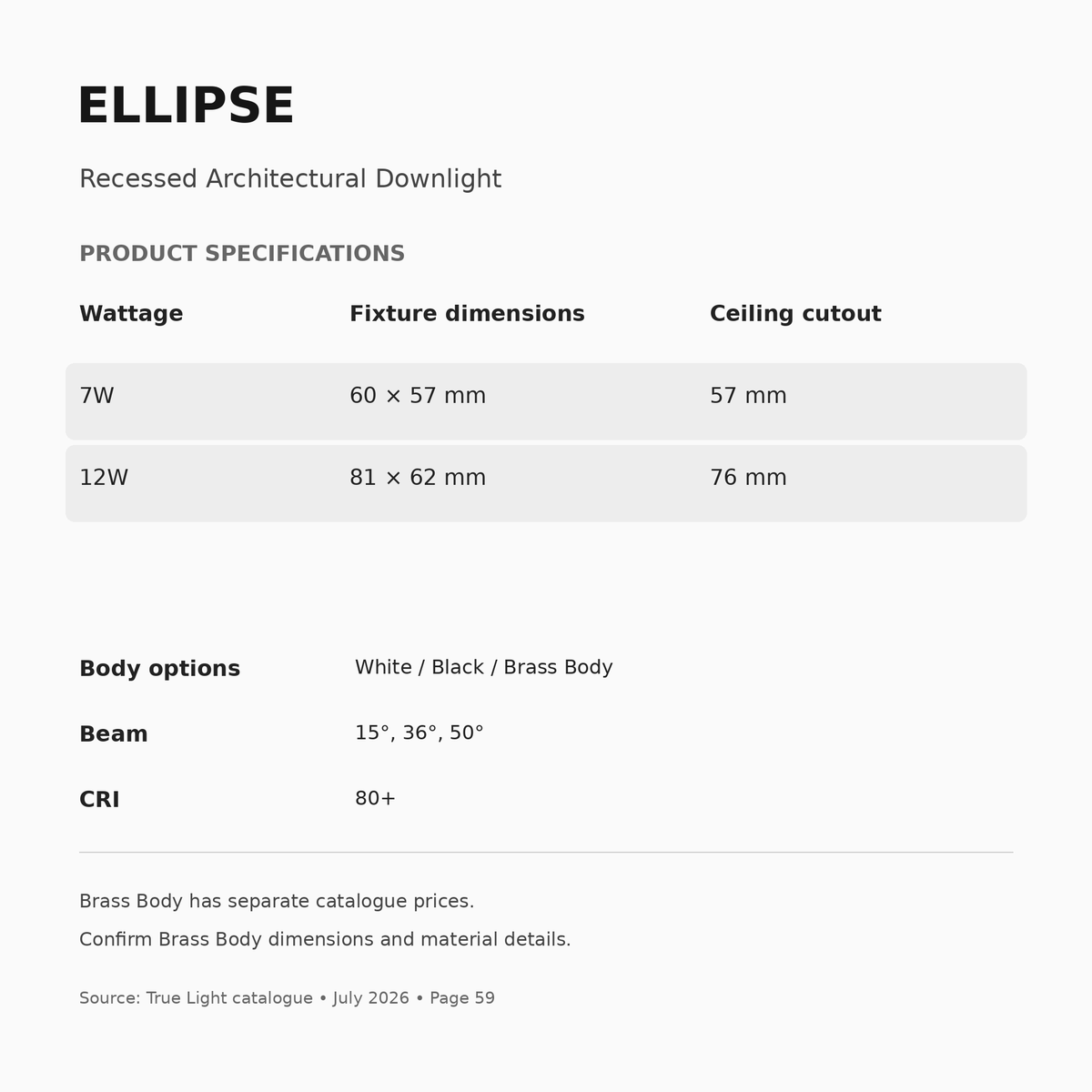

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam | CRI |
|---|---|---|---|---|
| 7W | 60 × 57 mm | 57 mm | 15°, 36°, 50° | 80+ |
| 12W | 81 × 62 mm | 76 mm | 15°, 36°, 50° | 80+ |
The catalogue provides one dimensional table for ELLIPSE. Confirm that the listed dimensions also apply to the Brass Body configuration before installation.
Body and reflector finish

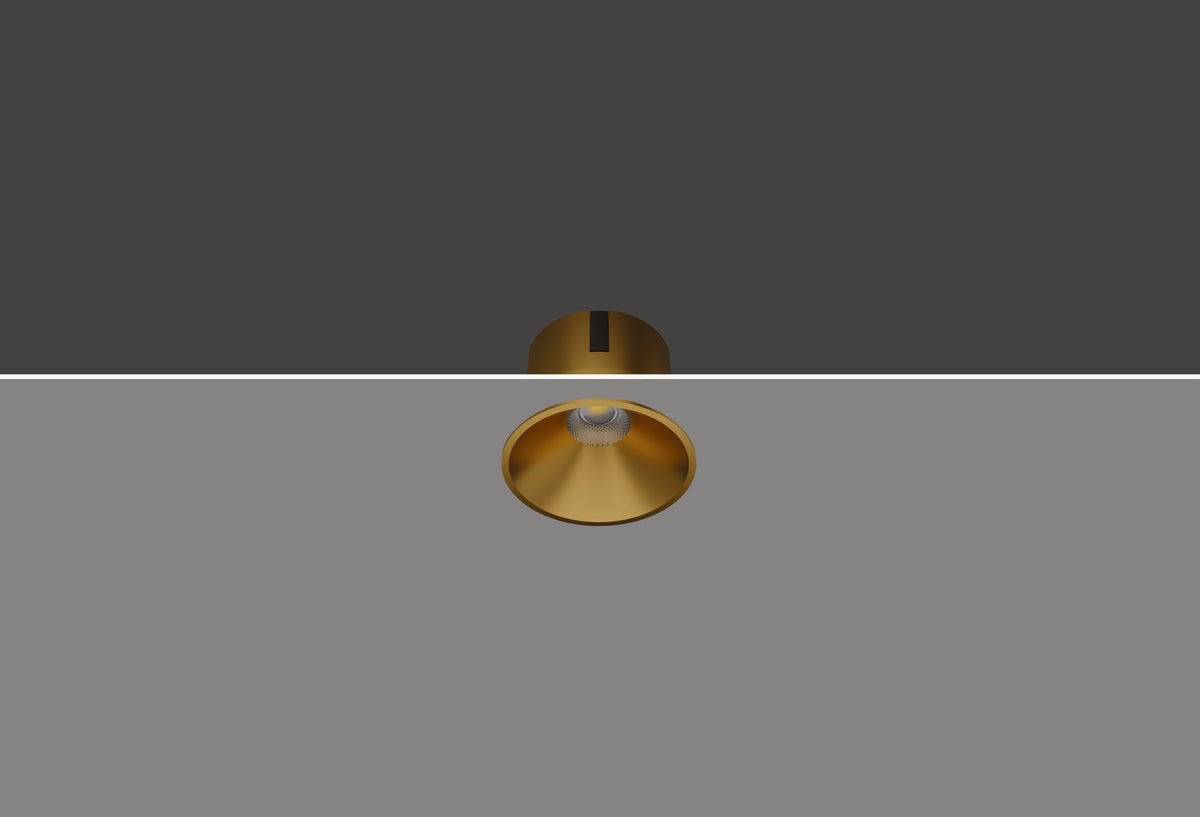

Choose White, Black or Brass Body. White and Black share the same prices; Brass Body uses the separate catalogue price rows. Brass Body is the catalogue designation; confirm material and finish details before ordering. The photograph shows a representative brass-coloured version. Separate reflector finishes require confirmation and are not specified by the body-finish selector.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage / Body | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 7W / White / Black | ₹2194.50 | ₹3661.90 | ₹3867.60 | ₹4473.70 | ₹5926.80 |
| 12W / White / Black | ₹2623.50 | ₹4050.20 | ₹4255.90 | ₹4862.00 | ₹6465.80 |
| 7W / Brass Body | ₹2711.50 | ₹4178.90 | ₹4384.60 | ₹4990.70 | ₹6443.80 |
| 12W / Brass Body | ₹3223.00 | ₹4649.70 | ₹4855.40 | ₹5461.50 | ₹7065.30 |
Prices apply to all listed beam angles: 15°, 36°, 50°.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
