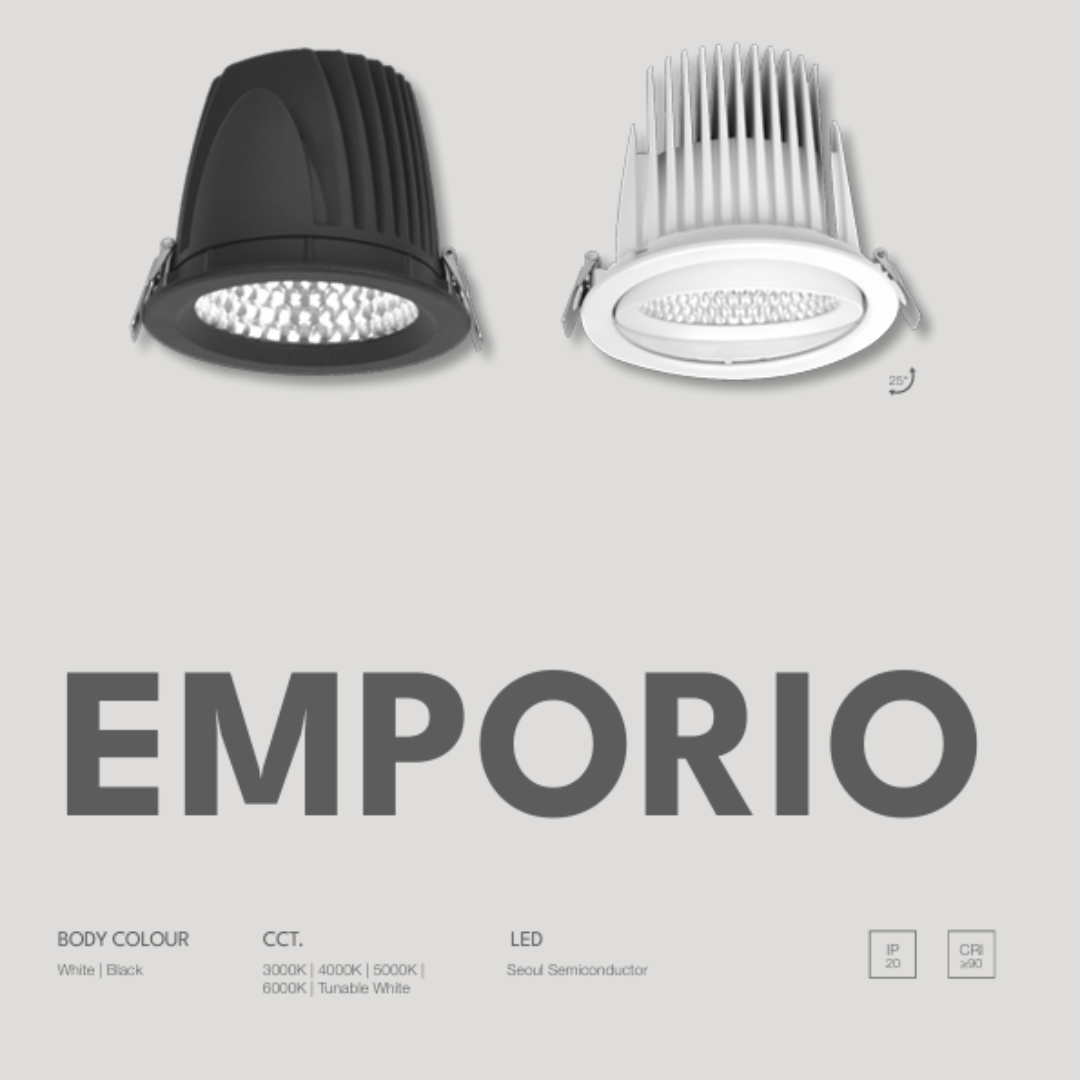

EMPORIO-A 10W–40W Recessed LED Downlight

EMPORIO-A is a recessed LED downlight range for interior ceilings, with an aluminium body and white or black finish options. Available wattages are 10W, 15W, 20W, 35W and 40W.

Light and construction

• LED: Seoul Semiconductor.
• Colour rendering: CRI ≥90.
• Protection: IP20.
• Rated luminous flux: 10W: 1007 lm; 15W: 1676 lm; 20W: 2235 lm; 35W: 3719 lm; 40W: 4019 lm.

Colour temperature and control

Standard fixed-CCT selections are 3000K, 4000K and 5000K. DALI selections use the white movable fitting in 10W, 15W and 20W:

• DALI DT6: fixed 3000K, 4000K, 5000K or 6000K.
• DALI DT8: Tunable White.
• DALI beam selection: 15°, 24° or 38°, as stated in the selected variant.

Beam options in the range are 15°, 24° and 38° for 10W–20W, and 24° and 38° for 35W–40W. Where a variant does not state a beam angle, confirm the required beam before ordering.

White movable fitting: installation sizes

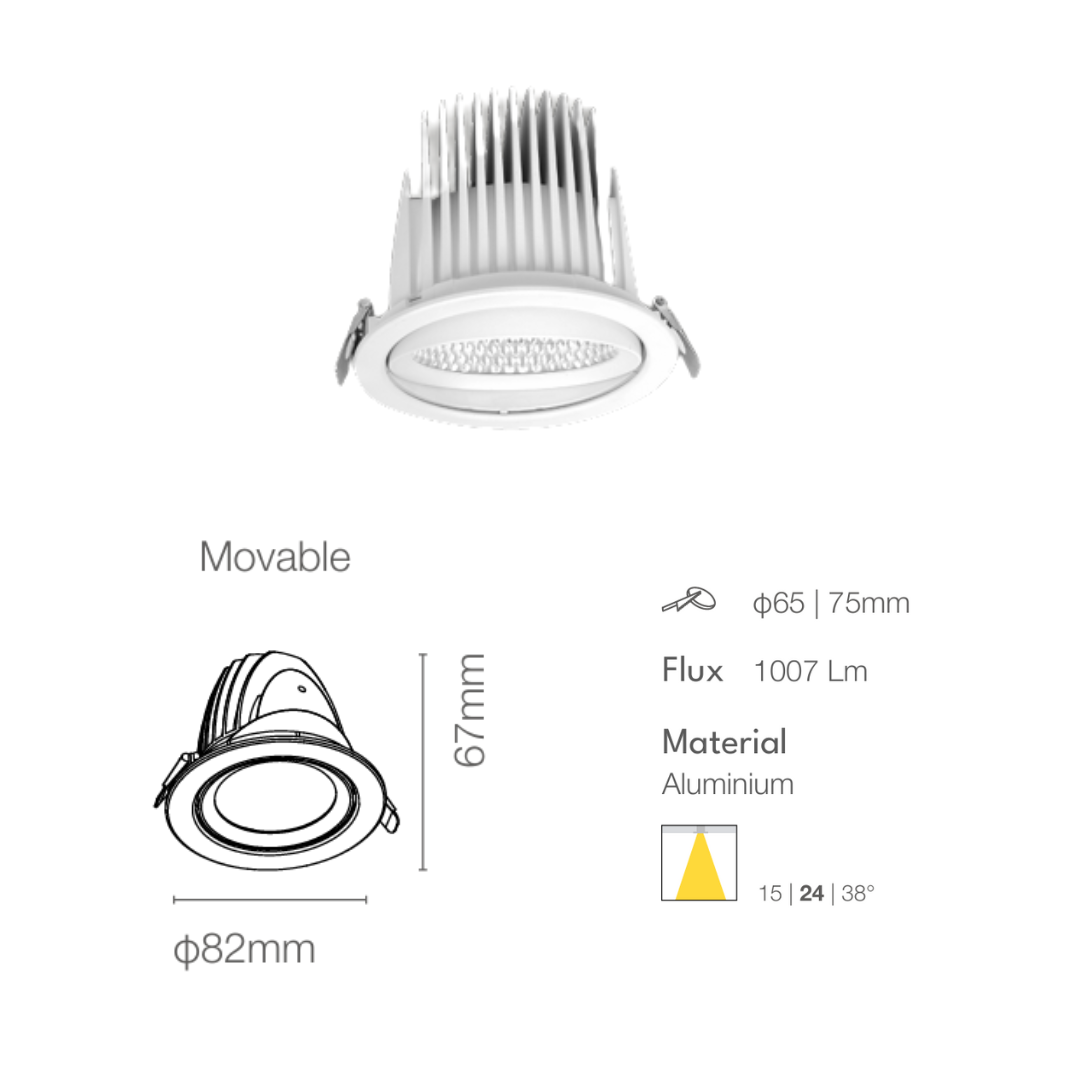

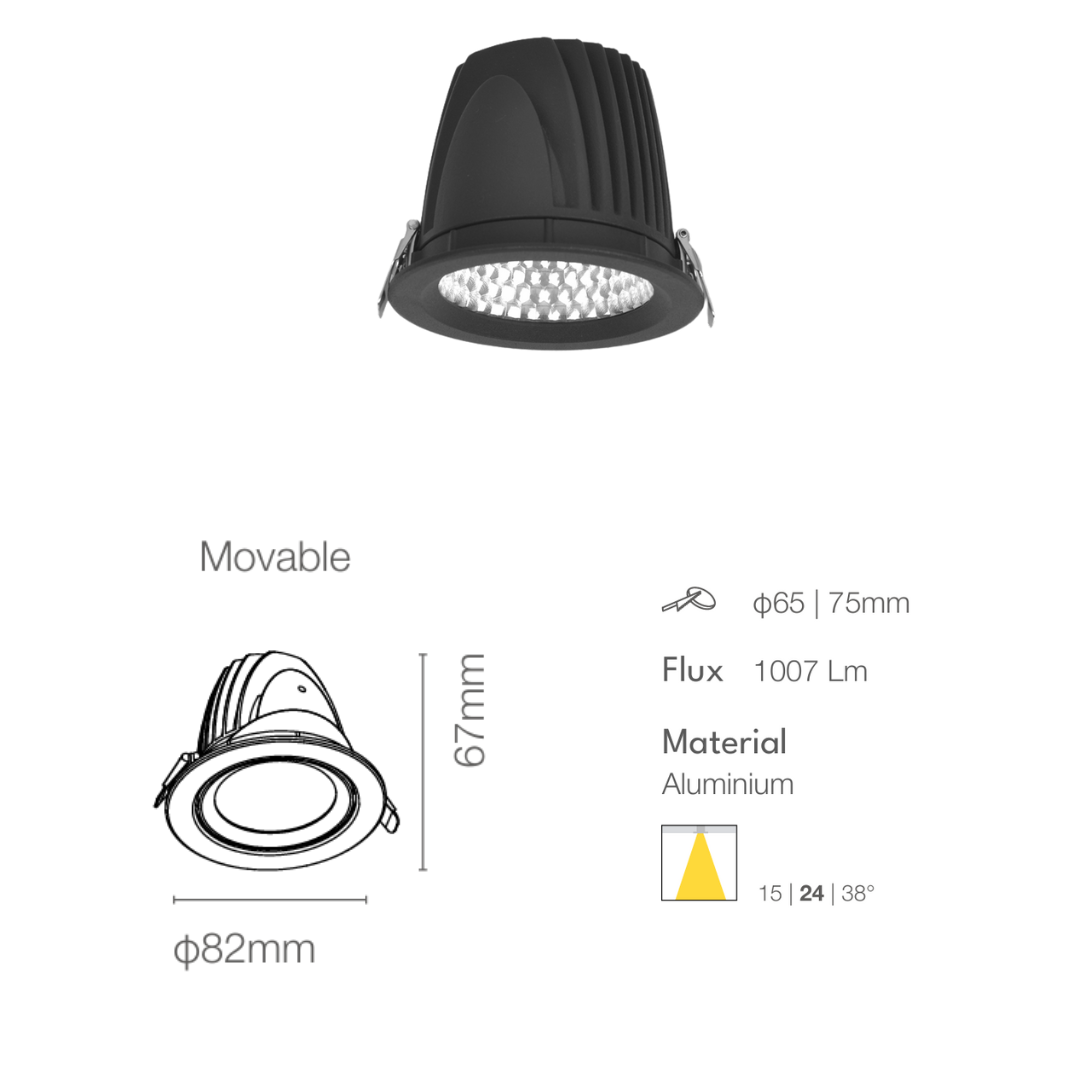

• 10W: Ø82 × 67 mm body; Ø75 mm ceiling cutout.

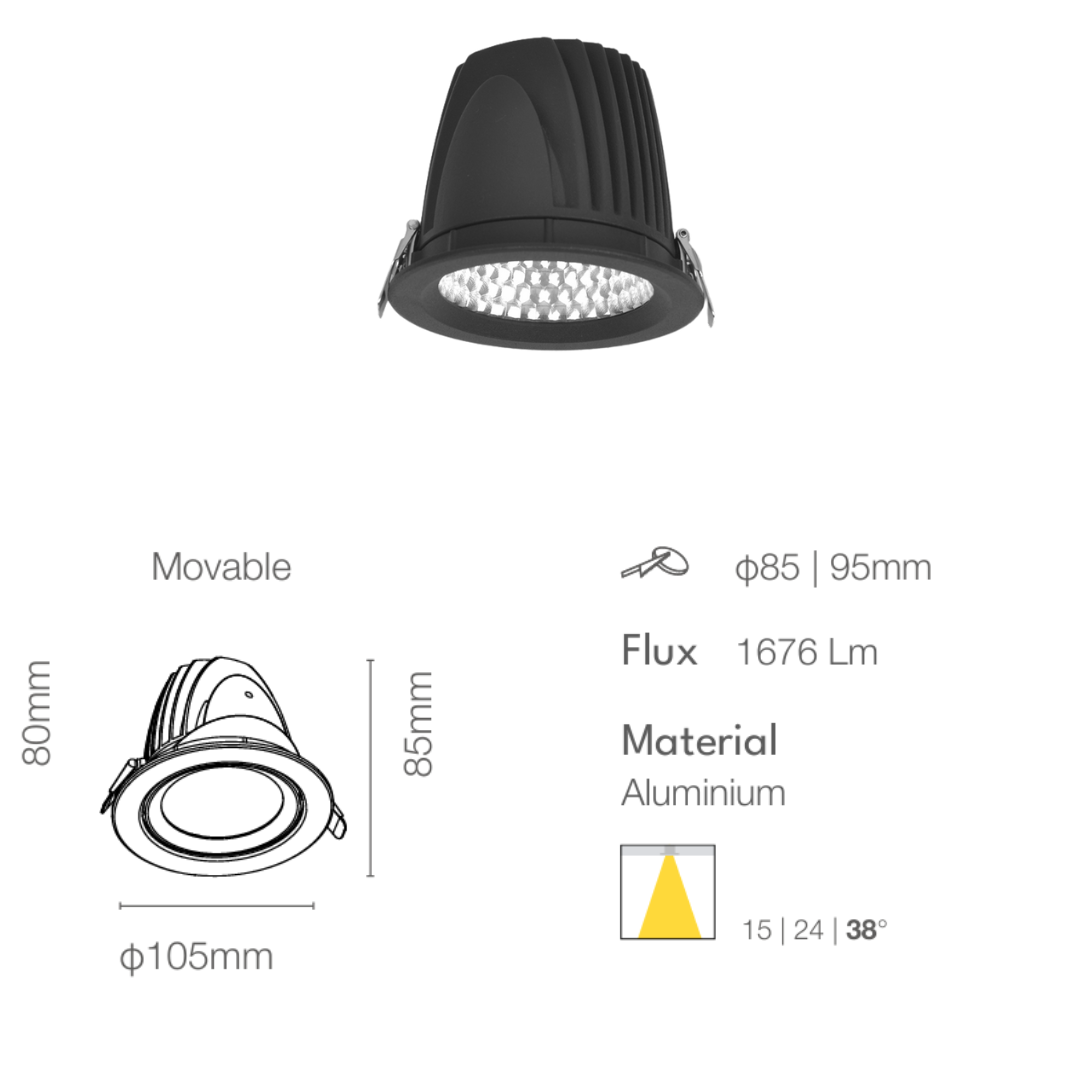

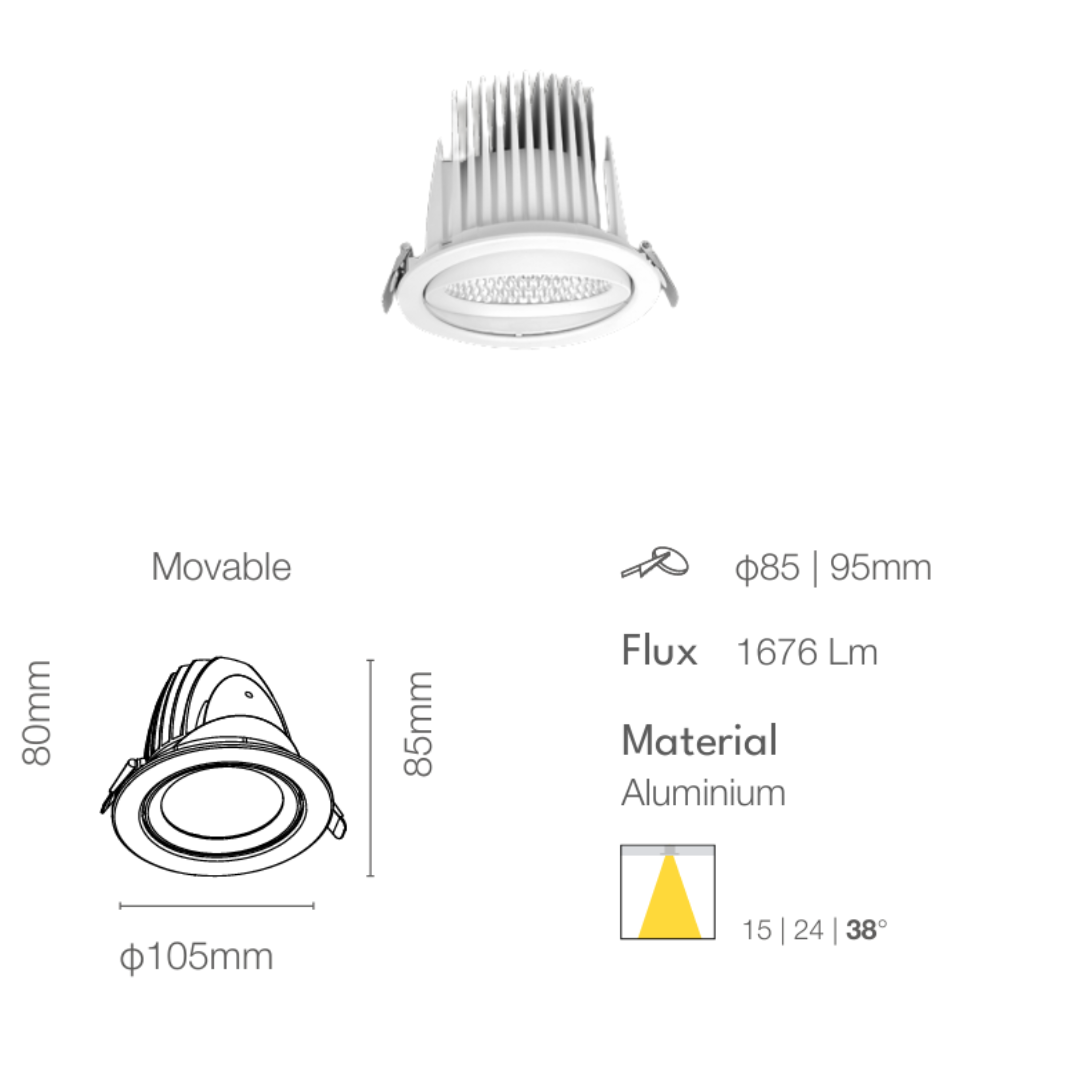

• 15W: Ø105 × 85 mm body; Ø95 mm ceiling cutout.

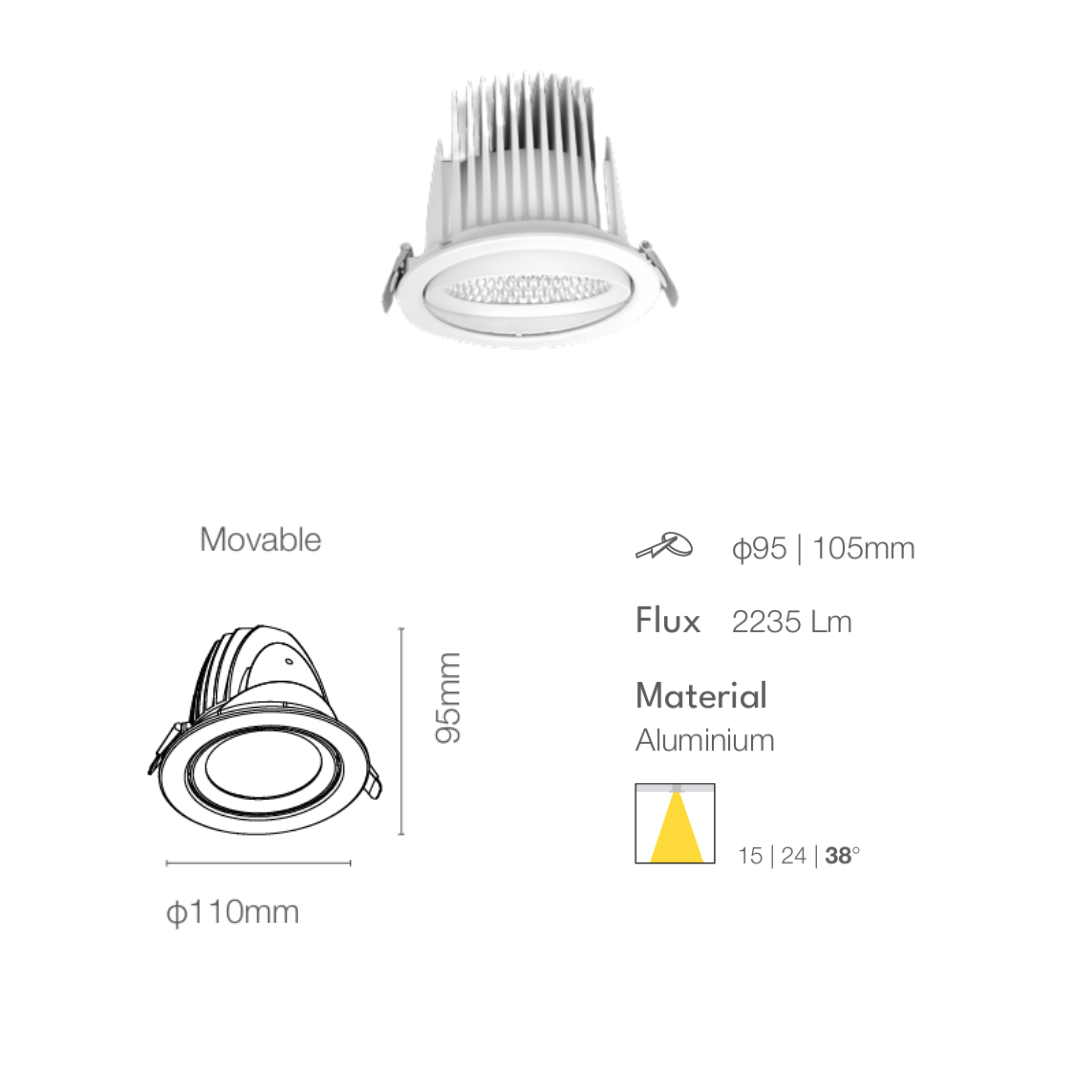

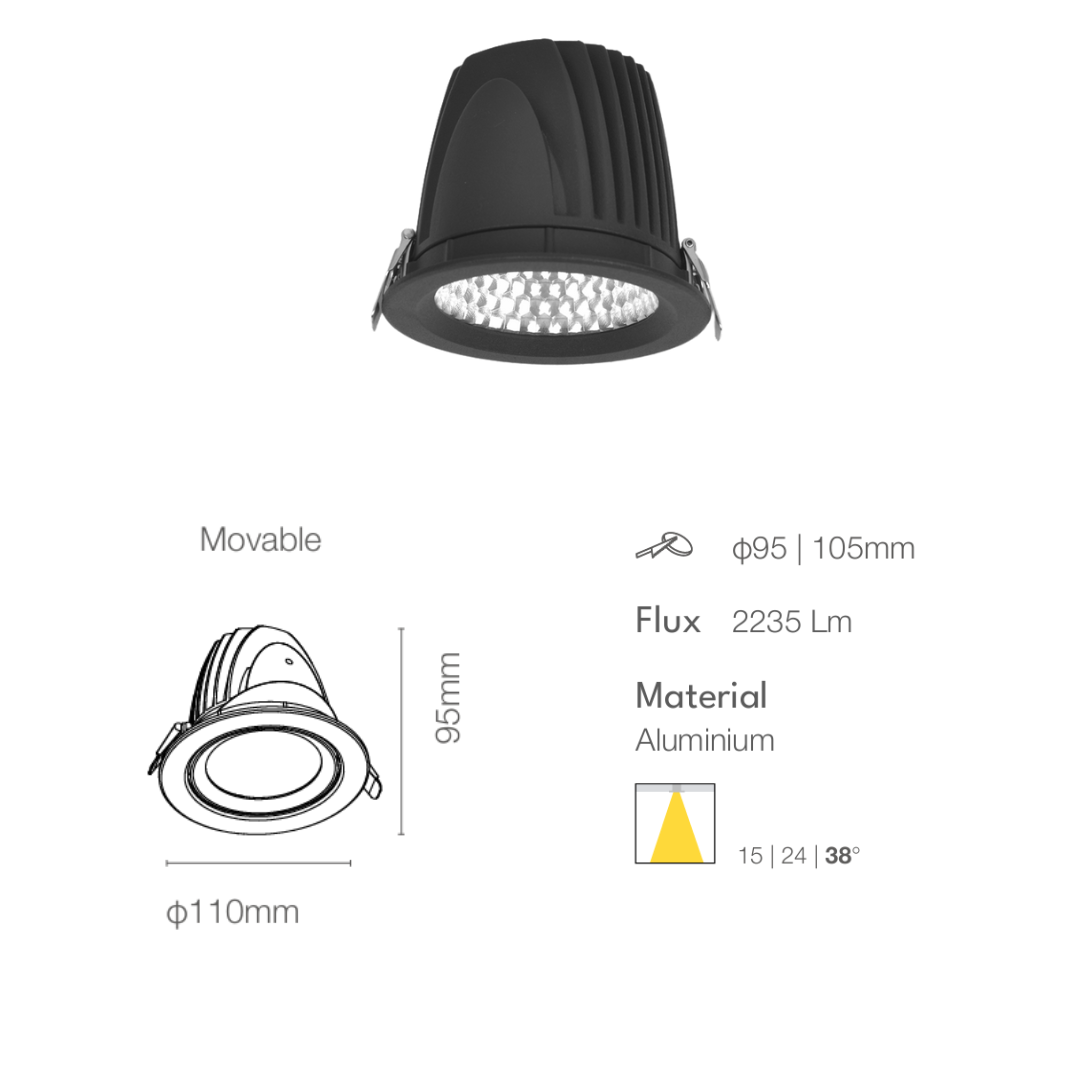

• 20W: Ø110 × 95 mm body; Ø105 mm ceiling cutout.

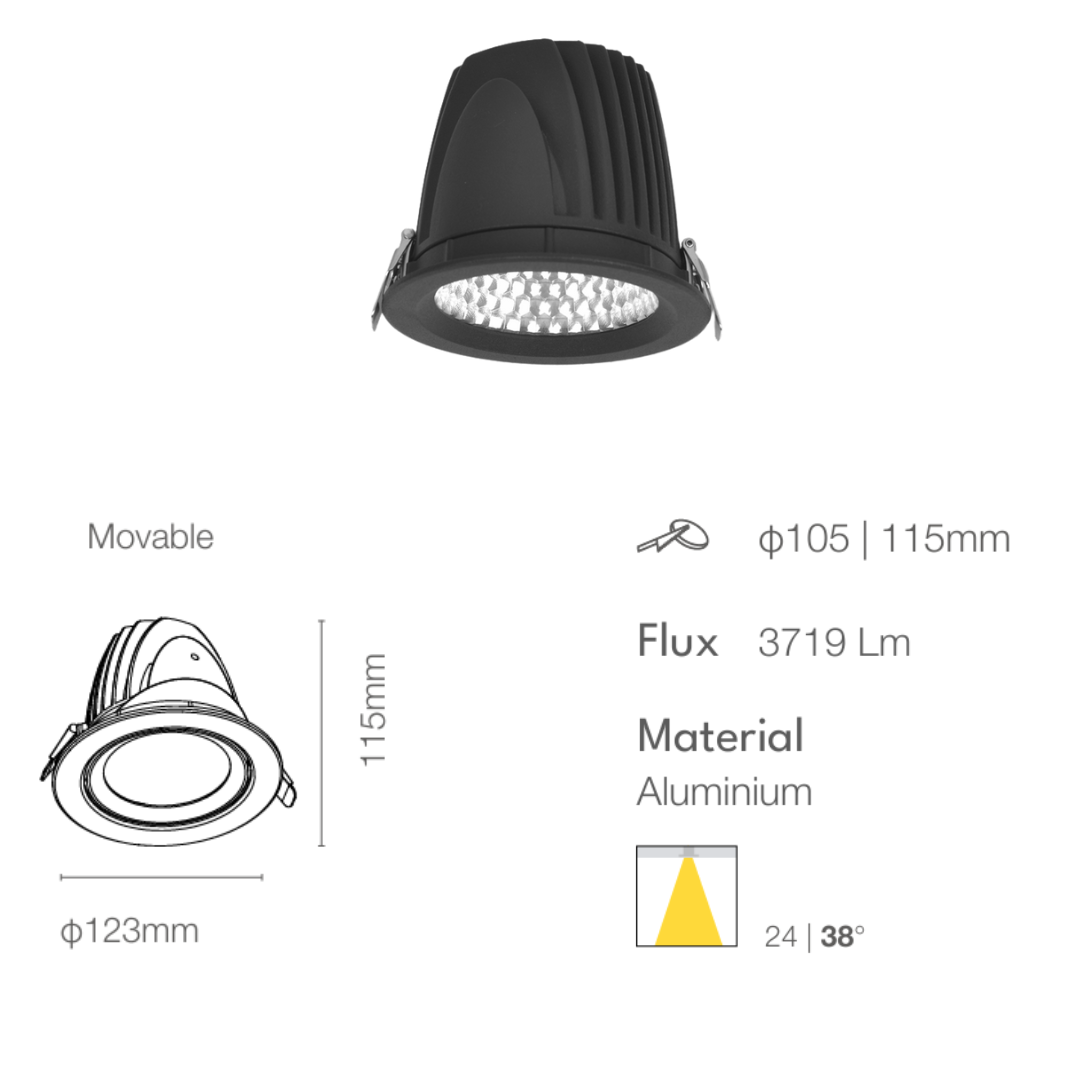

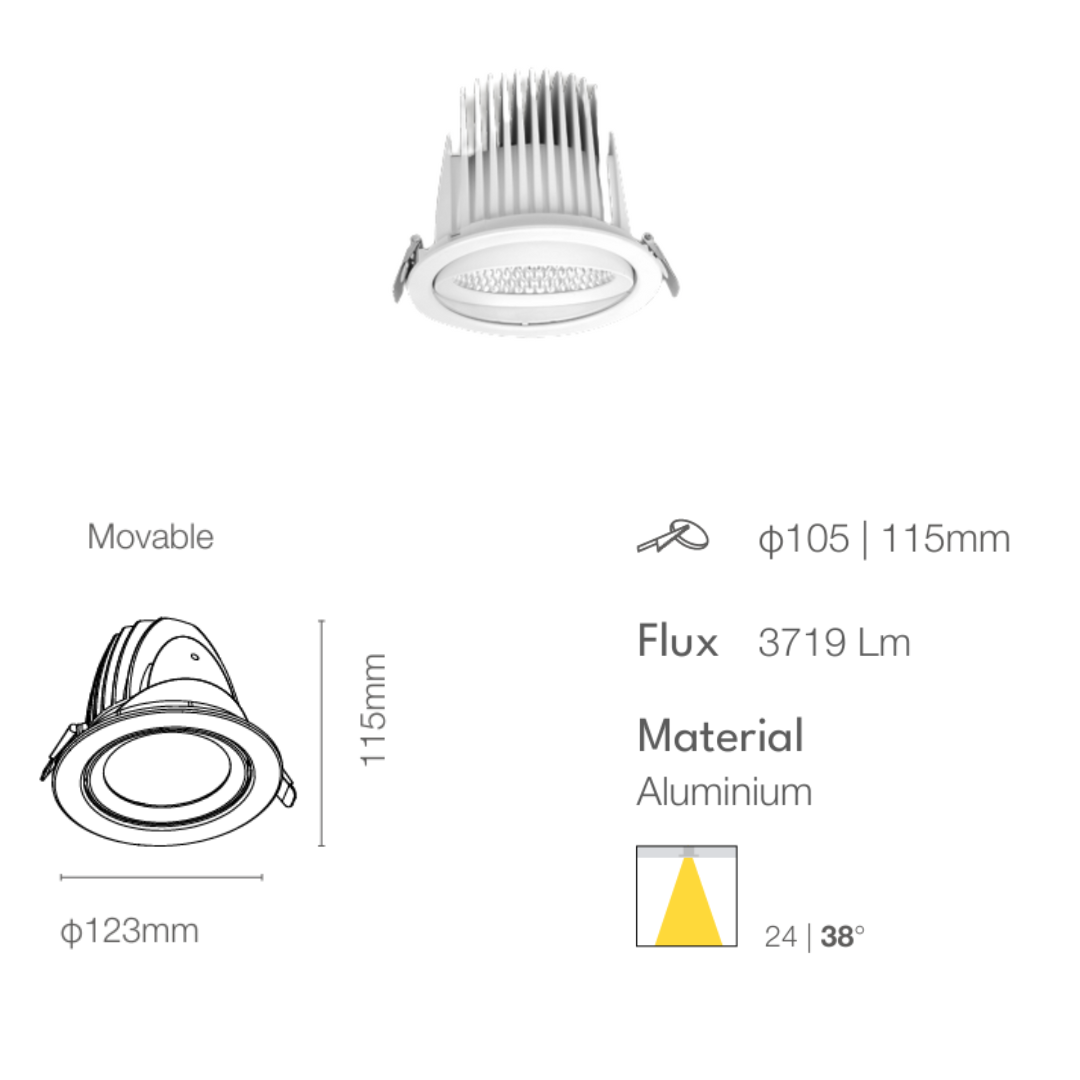

• 35W: Ø123 × 115 mm body; Ø115 mm ceiling cutout.

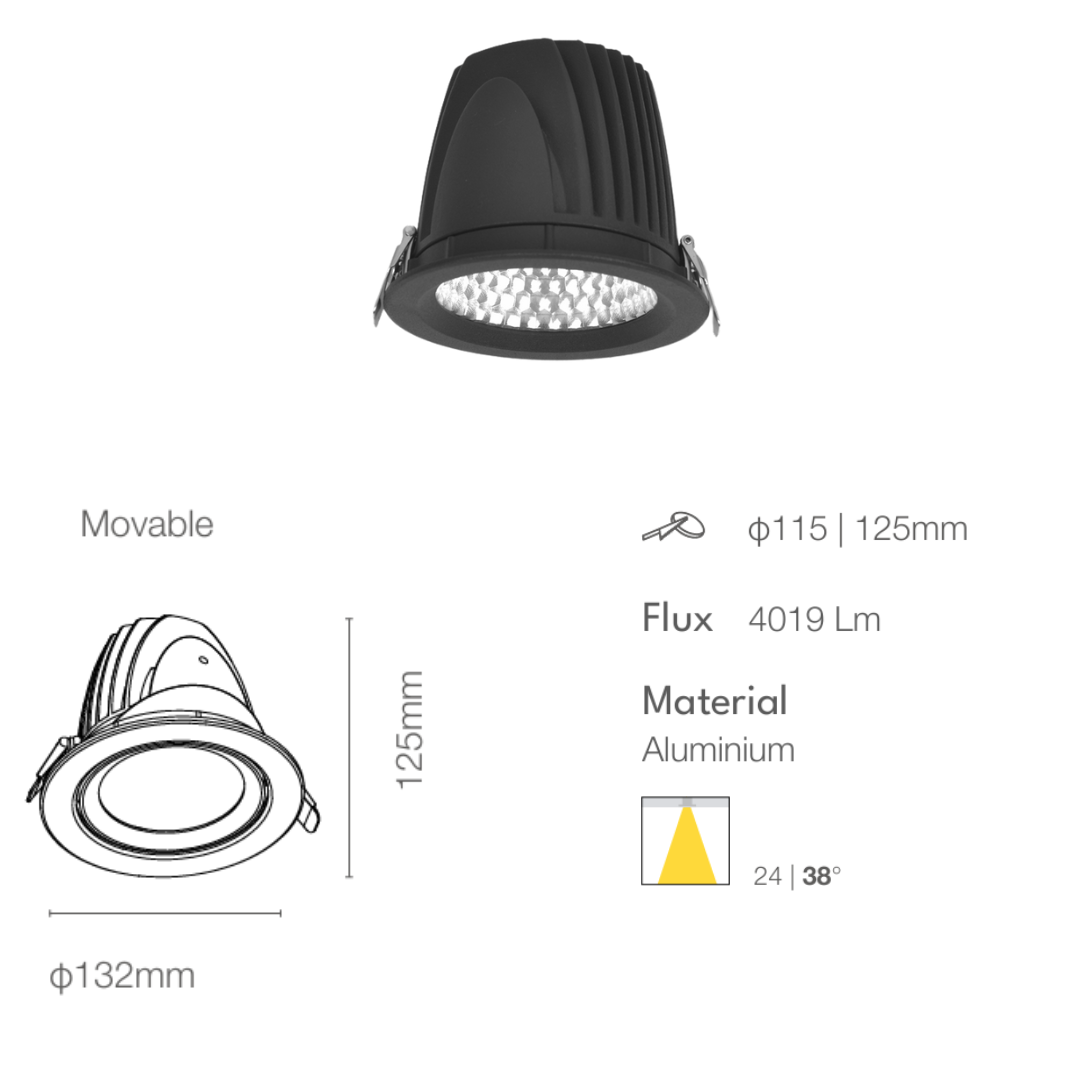

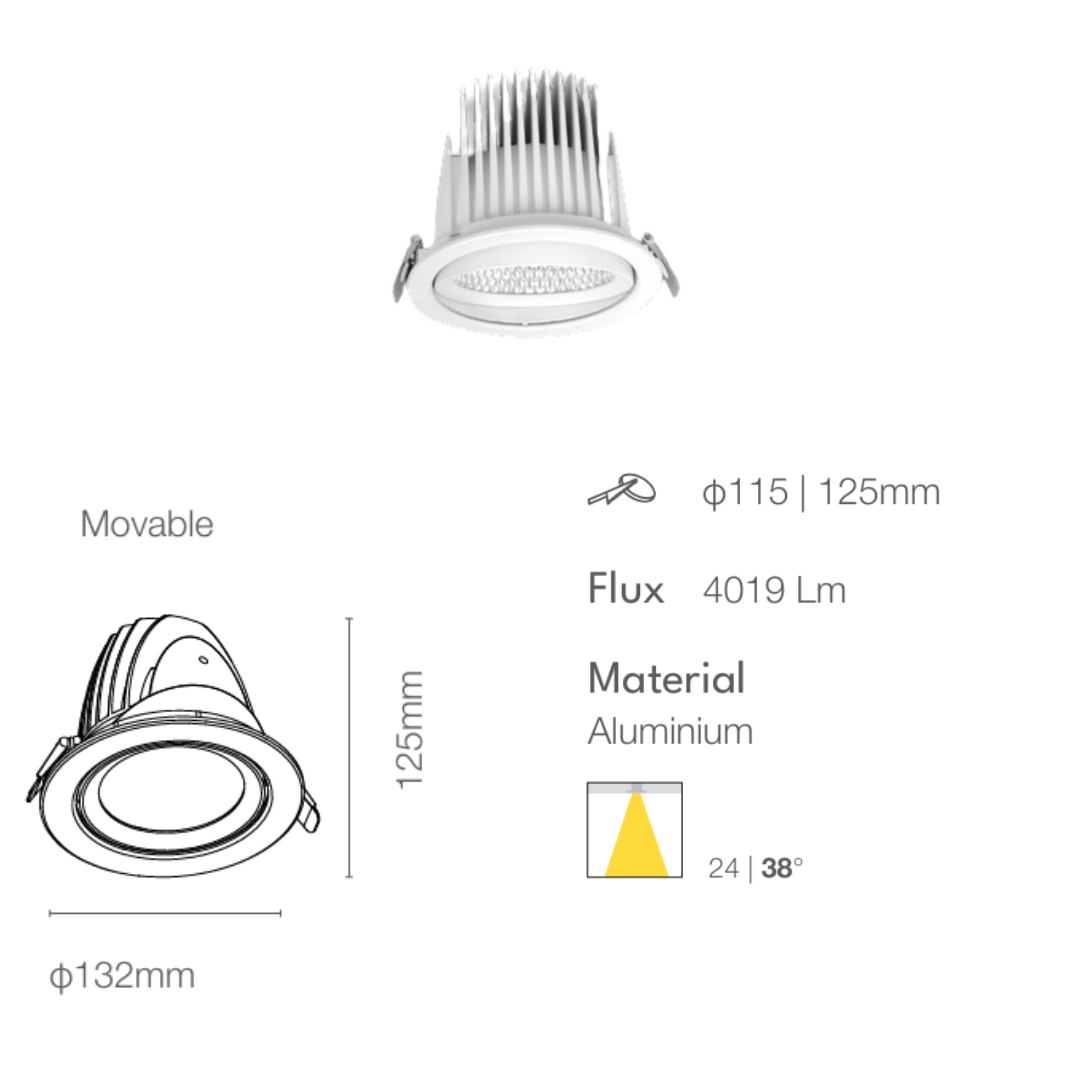

• 40W: Ø132 mm body diameter; Ø125 mm ceiling cutout. Confirm the installation height before ordering.

These installation sizes apply to the white movable standard and DALI configurations. For black and other tunable or smart selections, confirm the exact fitting, controller and installation dimensions before ordering.
