ENCIRCLE Double White Recessed Spotlight – 24W & 40W
Tax excluded. Shipping calculated at checkout
ENCIRCLE Double
ENCIRCLE Double is a twin-module recessed architectural LED spotlight. This white-body listing combines 24W and 40W with 15°, 24° and 36° beam options, CRI 80+, and fixed-white, RF, smart or DALI control configurations.
24W uses two 12W light modules; 40W uses two 20W light modules. Wattage selections and filter values show the total fixture wattage.

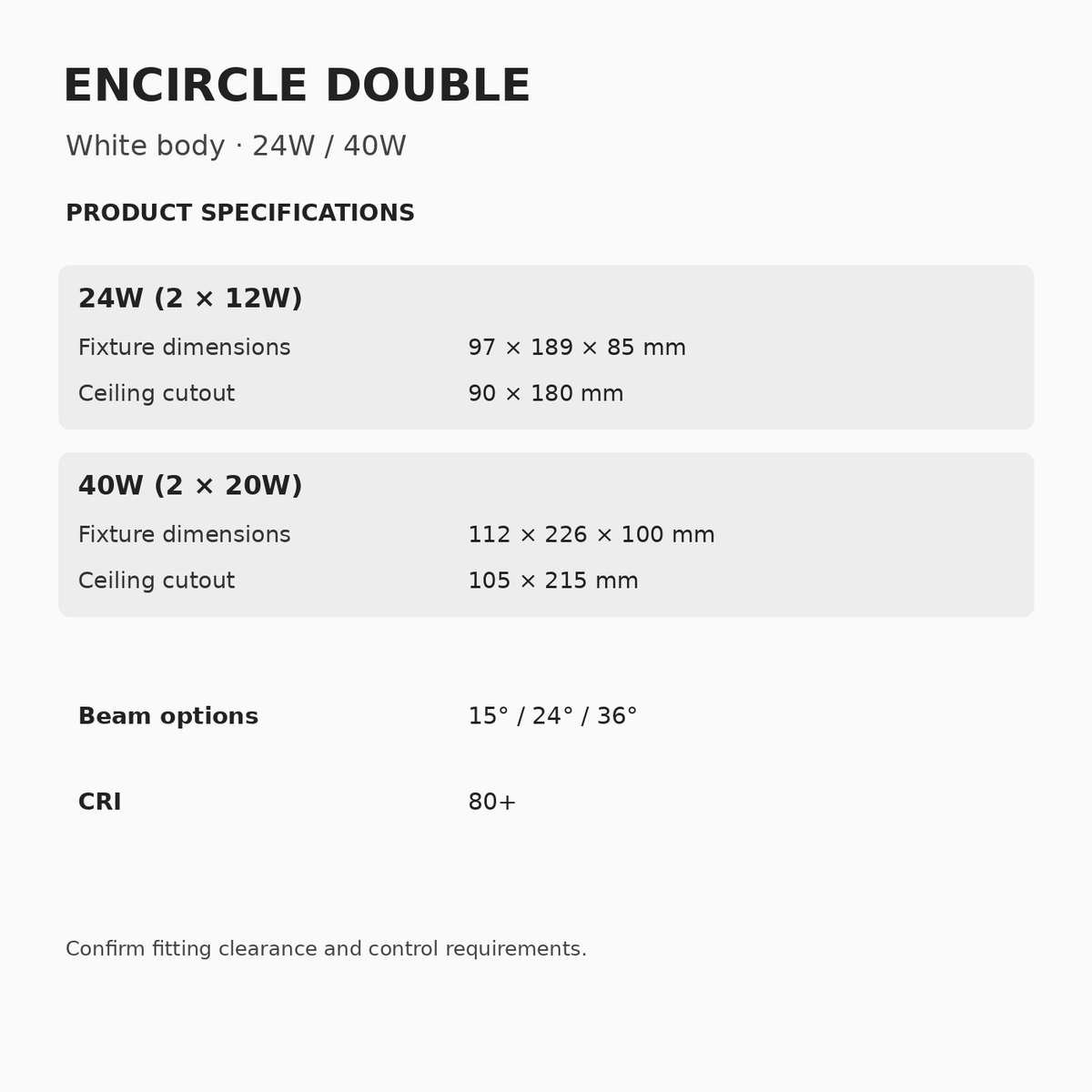

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout |
|---|---|---|
| 24W | 97 × 189 × 85 mm | 90 × 180 mm |
| 40W | 112 × 226 × 100 mm | 105 × 215 mm |
Beam options: 15°, 24°, 36°. CRI: 80+.
Body and reflector finish
Body finish: White. The Finish selector specifies body colour. Reflector finishes are illustrated separately; confirm your preferred reflector, compatible body combination and any additional charge before ordering.
The original product photograph shows a black-body reference. Check the selected body finish when ordering.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 24W | ₹7628.50 | ₹10481.90 | ₹10893.30 | ₹12105.50 | ₹15313.10 |
| 40W | ₹11247.50 | ₹15882.90 | ₹16296.50 | ₹16443.90 | ₹20645.90 |
Prices apply to all listed beam angles.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
