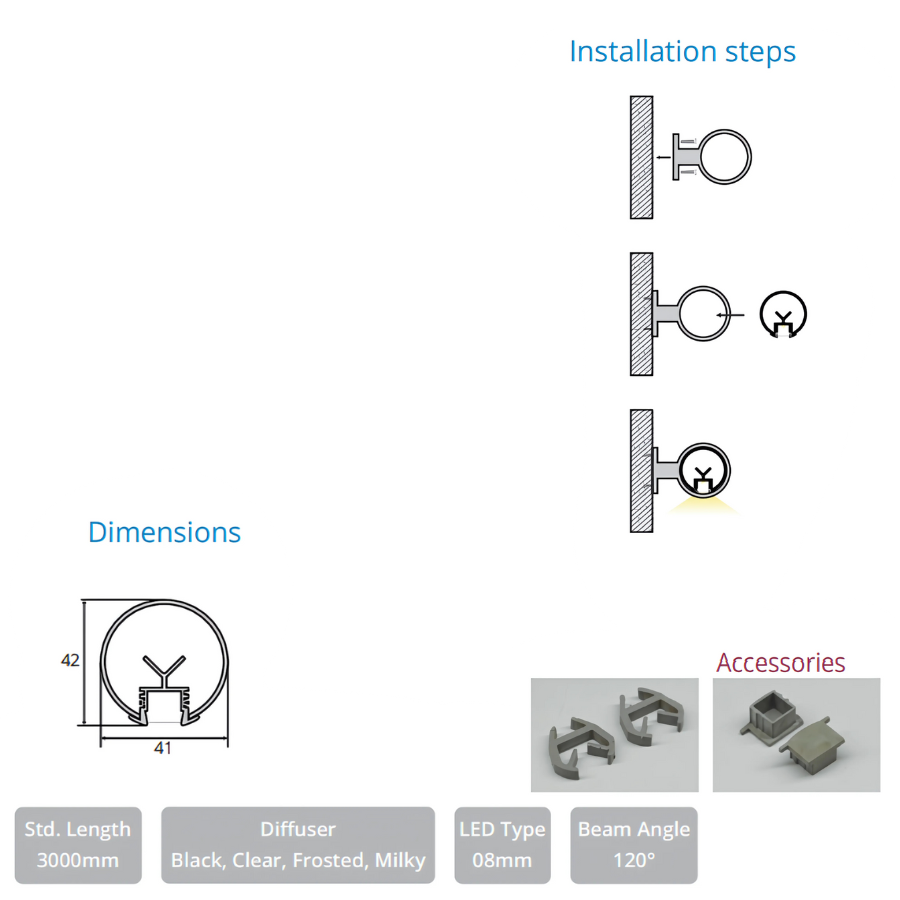

Installation Steps: The top section illustrates a surface-mounted installation. The profile is fixed to a wall or ceiling, and then the light source (likely an LED strip) is inserted, followed by a cover/diffuser. This suggests it's designed for visible placement rather than concealment.
Dimensions: A cross-sectional diagram shows the profile's dimensions: 42mm in height and 41mm in width, forming a near-circular or D-shaped profile when a light source is inserted. This gives it a more substantial and decorative presence compared to recessed profiles.
Beam Angle: The specified "Beam Angle 120°" indicates a wide, general illumination, suitable for broad lighting coverage.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Options: Available diffusers include "Black, Clear, Frosted, Milky," offering various levels of light diffusion and aesthetic finishes. The "Milky" option suggests a very even, diffused light output.
LED Type: Designed for "LED Type 08mm" (likely referring to the width or type of LED strip it accommodates).
Accessories: Images show two types of accessories:
Curved clips, likely for mounting the profile securely.
End caps, which would provide a clean, finished look to the ends of the profile.
Overall Impression:

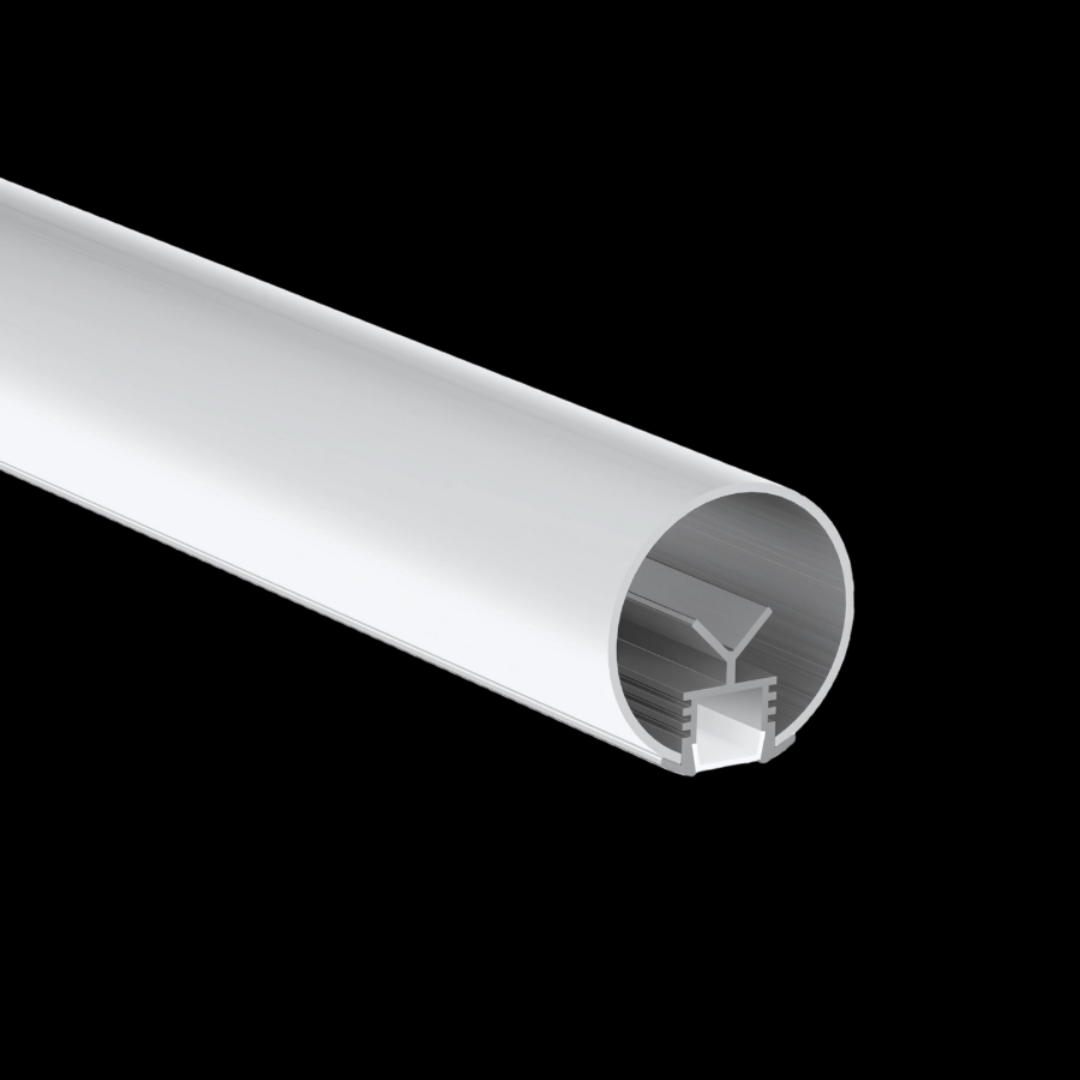

This product is a versatile and aesthetically prominent linear lighting profile, offering wide-angle illumination. Its rounded design and surface-mount capability make it suitable for applications where the fixture itself is part of the visual design, such as decorative lighting in retail, commercial, or residential spaces, or for general ambient lighting where a continuous light line is desired.
