FUNNEL Round Recessed LED Downlight – 7W to 30W
Tax excluded. Shipping calculated at checkout
True Light FUNNEL Round Recessed LED Downlight
FUNNEL is a round recessed LED downlight available in six wattages from 7W to 30W. Choose the fixture size, white or black body and lighting control for your ceiling layout.
Choose your finish
Choose a white or black body.
Lighting and control options
- Fixed white: 3000K, 4000K, 6000K with a True driver. 3000K is warm white, 4000K neutral white and 6000K cool white.
- 2700K–6500K / 6500K-2700K: tunable white with the CCT-RF remote-controlled configuration.
- SMART LIGHT: Alexa/Tuya-enabled smart configuration.
- DALI: True DALI DT6 driver for dimming through a compatible DALI system. Confirm your required fixed colour temperature before ordering.
- DALI TUNABLE: True DALI DT8 driver for tunable-white control through a compatible DALI system.
DALI configurations require a compatible external control system. Contact us to confirm controller requirements and compatibility.
Specifications
| Wattage | Fixture dimensions | Ceiling cutout | Catalogue beam angles |
|---|---|---|---|
| 7W | 70 × 65 mm | 60 mm | 36° |

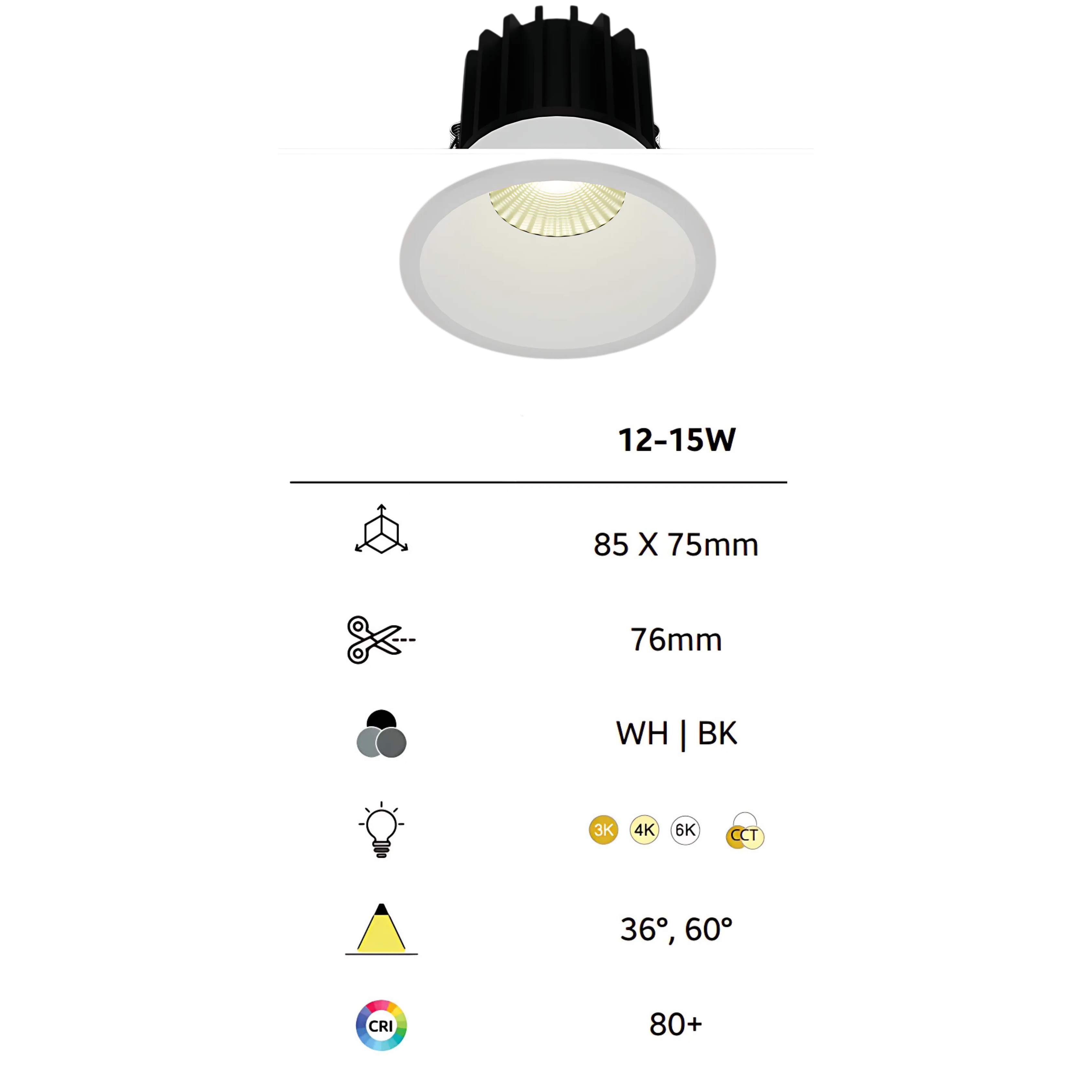

| 12W / 15W | 85 × 75 mm | 76 mm | 36° / 60° |

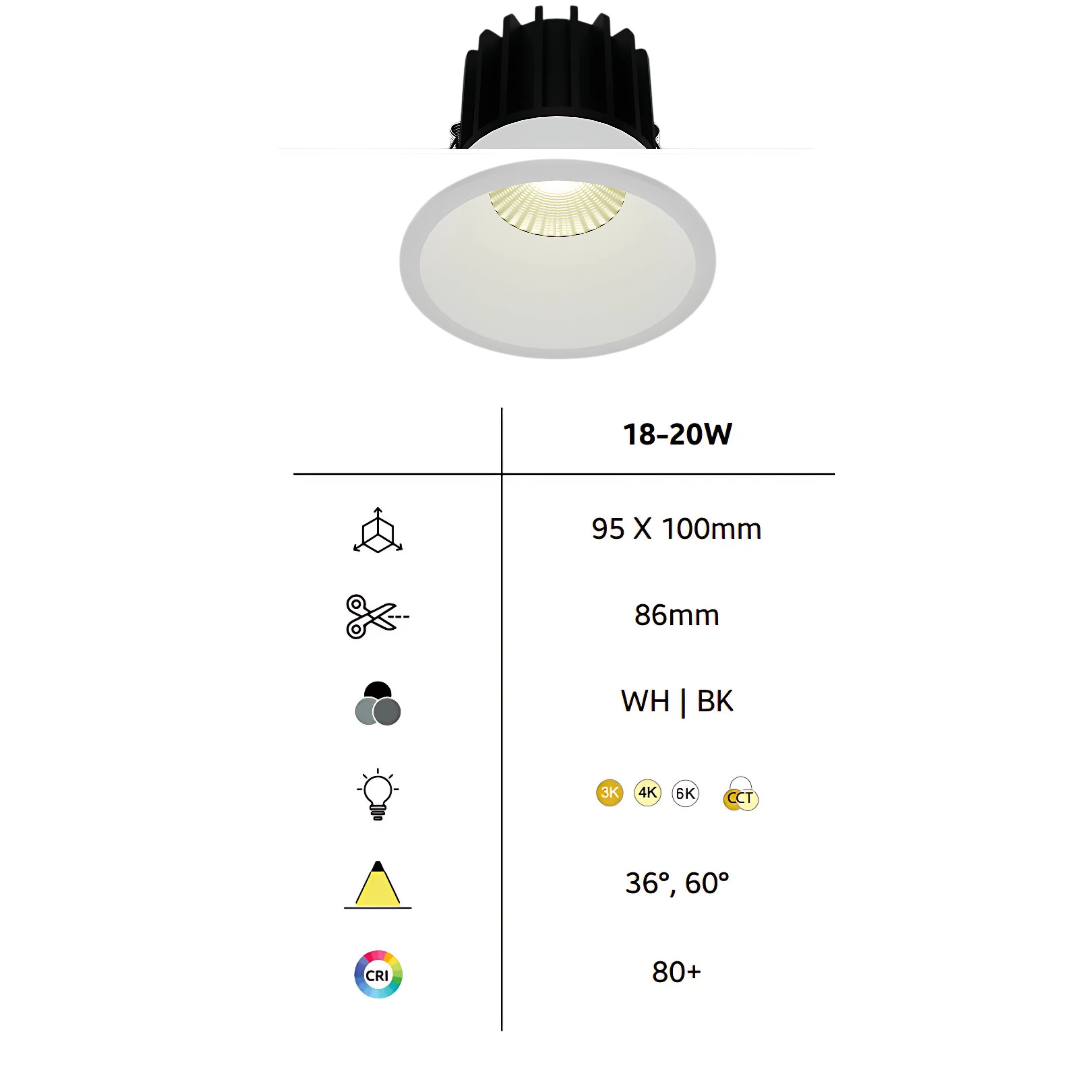

| 18W / 20W | 95 × 100 mm | 86 mm | 36° / 60° |

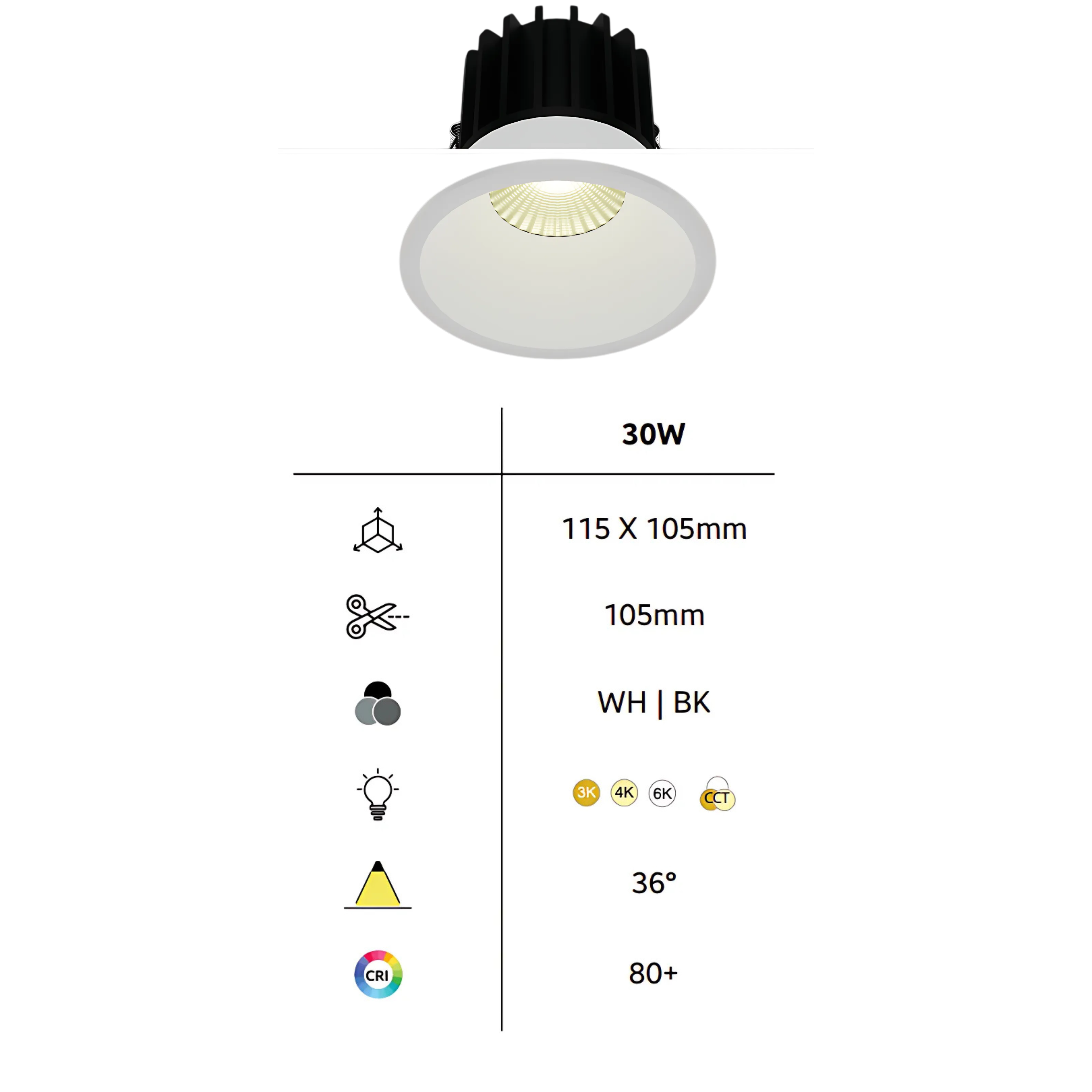

| 30W | 115 × 105 mm | 105 mm | 36° |
- CRI: 80+.
- Mounting: recessed ceiling installation.
- Confirm the required beam angle for 12W, 15W, 18W and 20W before ordering.
Before you order
Check the ceiling cutout and available recess space with your installer. The displayed price applies to the selected light and driver configuration; GST is additional. Contact Imperial Emporio for project quantities and delivery information.
