FUNNEL Recessed Downlight – 18W, 20W & 30W
Tax excluded. Shipping calculated at checkout
FUNNEL
FUNNEL is a round recessed architectural LED downlight with CRI 80+ and a white or black body. This listing combines 18W, 20W and 30W. 18W and 20W offer 36° or 60° beams; 30W has a 36° beam. Fixed-white, RF remote, Alexa/Tuya smart and DALI configurations are available.

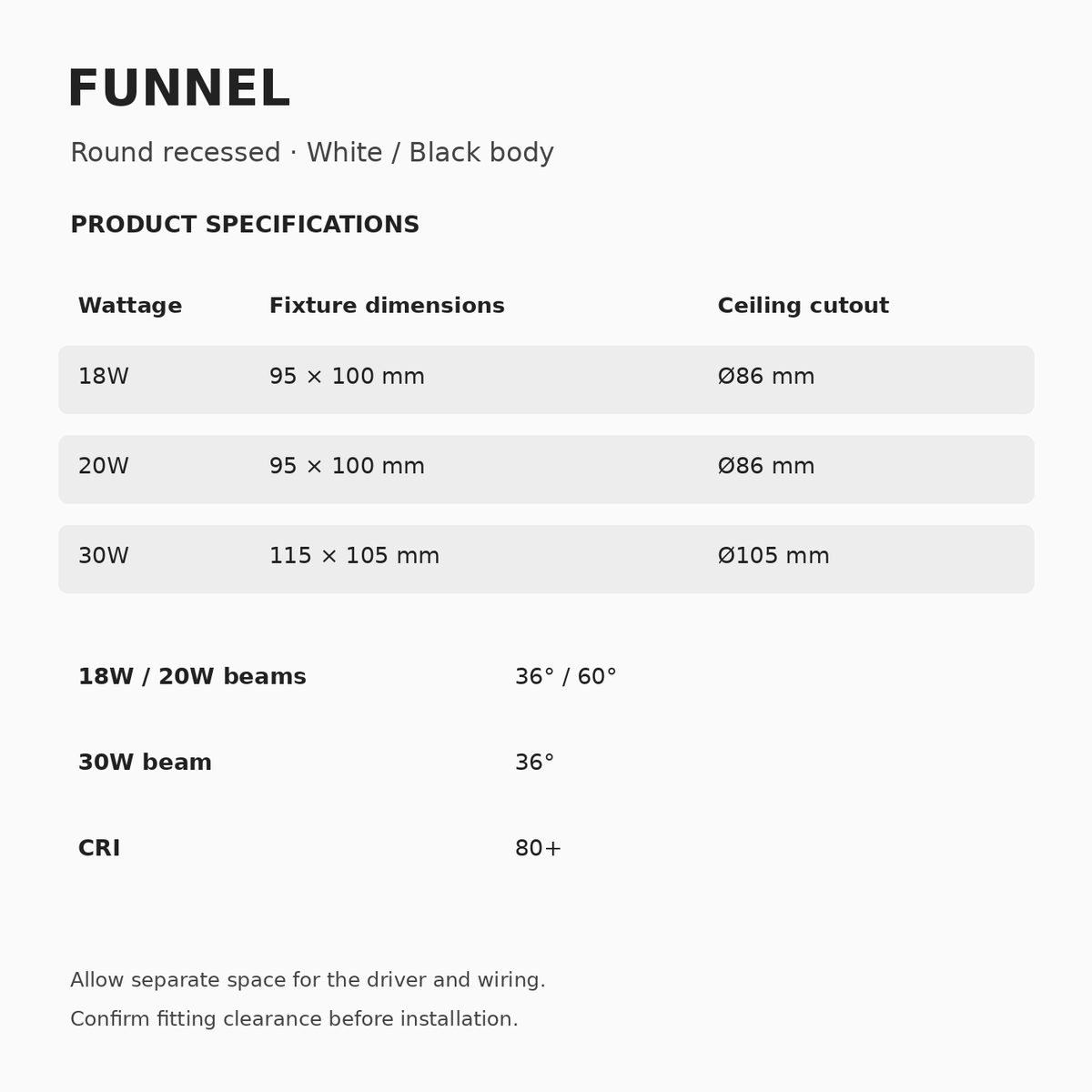

Product specifications
| Wattage | Fixture dimensions | Ceiling cutout | Beam angle |
|---|---|---|---|
| 18W | 95 × 100 mm | Ø86 mm | 36°, 60° |
| 20W | 95 × 100 mm | Ø86 mm | 36°, 60° |
| 30W | 115 × 105 mm | Ø105 mm | 36° |
CRI: 80+. Fixture dimensions do not include the separate space needed for the selected driver, wiring and installation clearance.
Body and reflector finish
Body finish: White or Black. The Finish selector specifies body colour. Confirm your preferred reflector, compatible body combination and any additional charge before ordering.

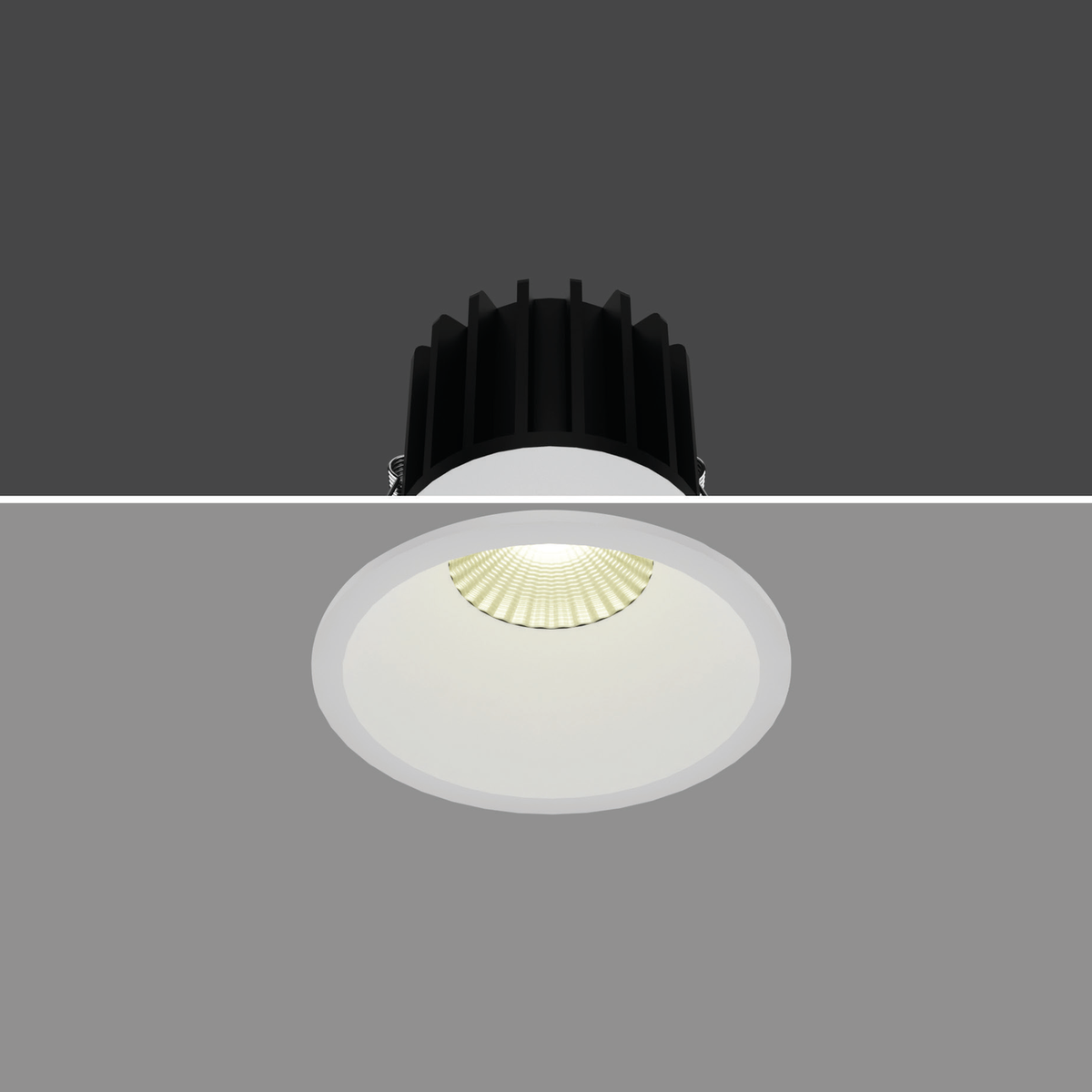

The product photograph shows the original white-body reference. Check the selected body finish when ordering.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white, supplied with a True LED driver.
- 2700K–6500K / CCT-RF: remote-controlled tunable-white configuration with its corresponding driver/control.
- SMART LIGHT: Alexa/Tuya-enabled configuration with its corresponding smart driver/control.
- DALI DT6: fixed-white DALI configuration using a True DT6 driver. Choose the required 3000K, 4000K or 6000K option.
- DALI TUNABLE: tunable-white DALI configuration using a True DT8 driver.
DALI configurations require a compatible DALI control system. Smart is a control option, not a fixed colour temperature.
Configuration prices — excluding GST
| Wattage | Fixed white / True driver | CCT-RF remote | Alexa/Tuya smart | DALI / True DT6 | DALI Tunable / True DT8 |
|---|---|---|---|---|---|
| 18W | ₹2310.00 | ₹4627.70 | ₹4834.50 | ₹4908.20 | ₹6867.30 |
| 20W | ₹2414.50 | ₹4732.20 | ₹4939.00 | ₹5012.70 | ₹7113.70 |
| 30W | ₹3146.00 | ₹5423.00 | ₹5629.80 | ₹5703.50 | ₹8002.50 |
Prices apply to the listed beam-angle choices for each wattage.
What is included
The confirmed configuration price covers the selected light and corresponding driver/control configuration. Confirm accessories and control-system requirements for your installation.
Before you order
GST is additional. Check fitting dimensions, ceiling clearance and mounting requirements with your installer. Confirm your wattage, body finish, reflector requirement, beam angle and control configuration. Contact Imperial Emporio for project quantities, dispatch estimates, warranty terms and accessories.
