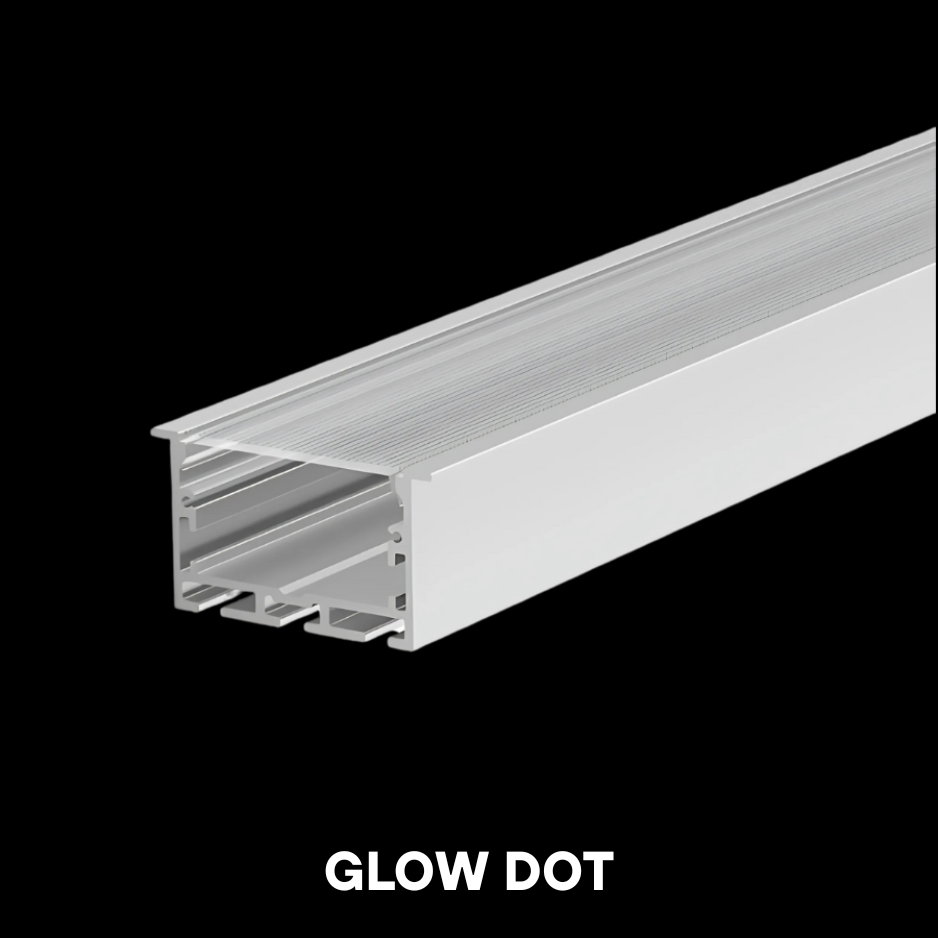

GLOW DOT 50MM

The GLOW DOT 50MM is a trimless recessed LED aluminum profile designed for seamless integration into plasterboard ceilings. With a clean architectural look and practical functionality, it is perfect for modern lighting applications demanding a minimal aesthetic and uniform illumination.

Key Dimensions:

• Outer Width (with flange): 58 mm

• Body Width: 50 mm

• Height: 32 mm

• Recommended Cutout: >50 mm

Technical Specifications:

Key Features:

• Trimless Design – Ideal for flush-mount ceiling installations

• Wide Base – Accommodates high-output 10 mm LED strips

• Prismatic Diffuser – Ensures soft, glare-free, evenly diffused light

• Architectural Appeal – Clean and elegant lighting with no visible trims

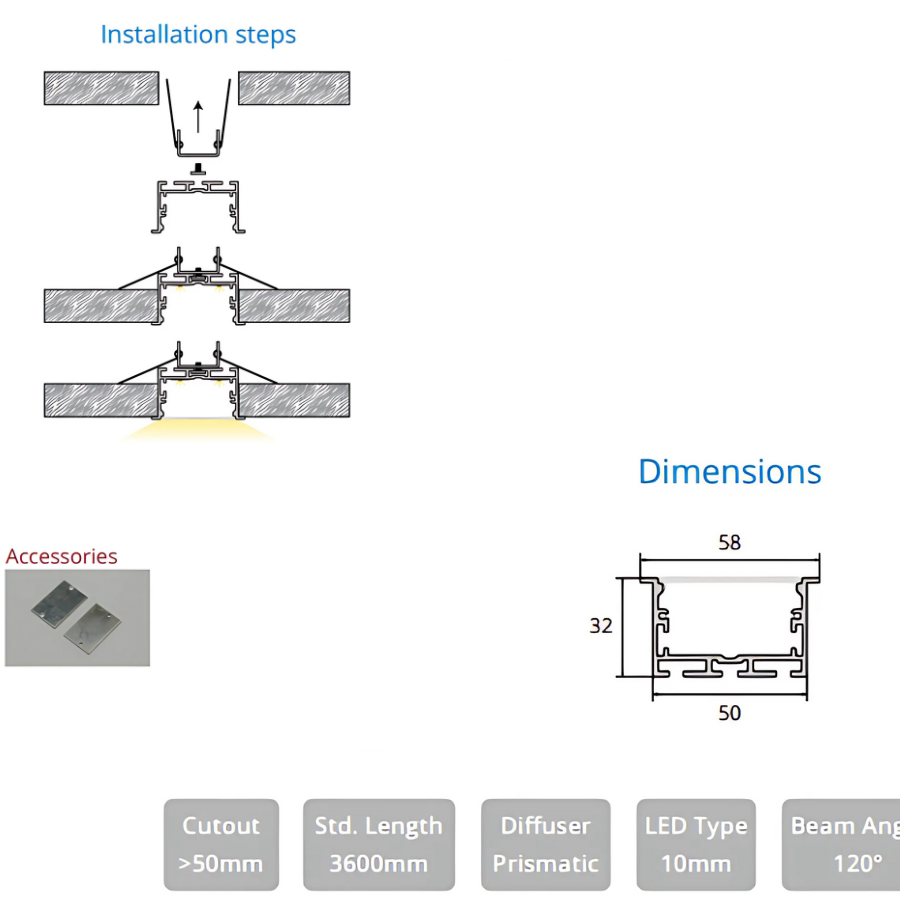

Installation Steps:

1. Cutout the ceiling slightly larger than 50 mm.

2. Insert the profile into the ceiling with mounting hardware.

3. Secure the clips and LED strip inside the channel.

4. Attach the diffuser, flush with ceiling finish.

5. Power on to reveal a seamless beam of light integrated with the architecture.

Accessories Included:

• Metal End Caps – Ensures a neat end finish and protects LED strip edges

Applications:

• High-end residential lighting

• Commercial and hospitality ceilings

• Galleries, showrooms, and office spaces

• Trimless architectural lighting designs
