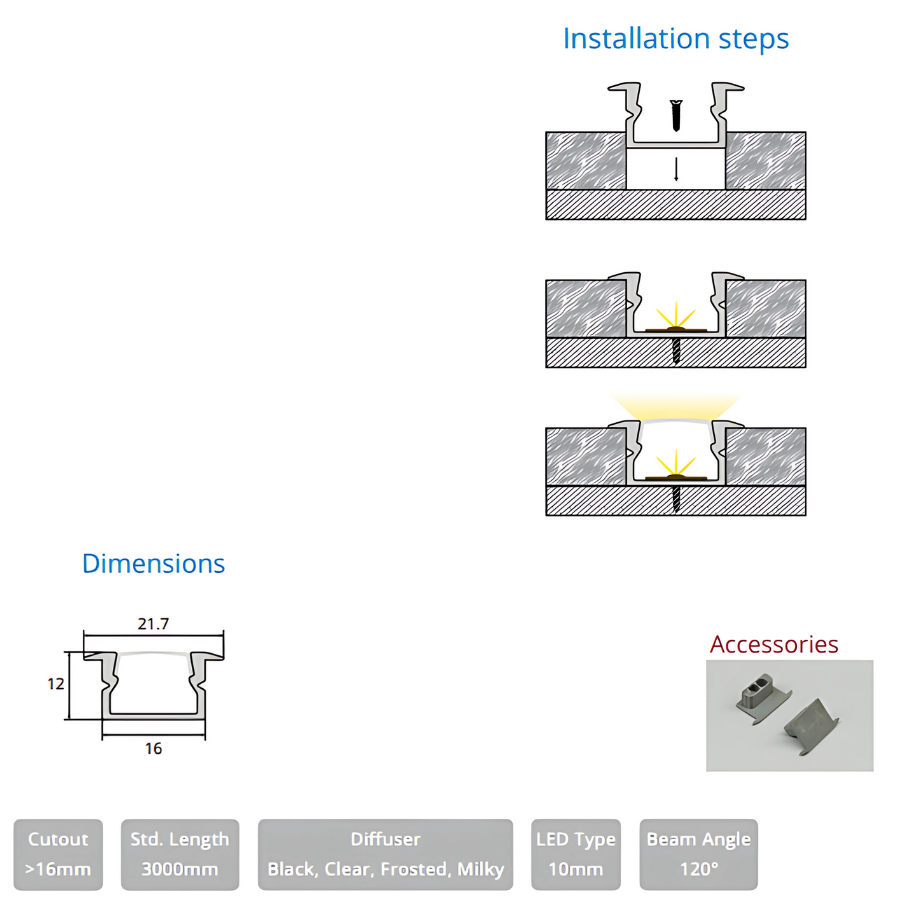

Installation Steps: The top section illustrates a straightforward recessed installation process. The U-shaped profile with a distinct top lip is designed to be inserted into a pre-cut groove in a surface. The diagram shows it being pushed into the cutout, secured (likely with screws visible in the diagram), and then the light emitting upwards, indicating a flush, integrated lighting solution.
Dimensions: A cross-sectional diagram provides the measurements: 12mm in height, 16mm in width at the base, and 21.7mm in width at the top lip. These dimensions indicate a relatively deep and wide profile, suggesting it can house more powerful LED strips and offer substantial light output.
Cutout Requirement: The "Cutout >16mm" specification indicates the minimum width of the groove needed for installation, corresponding to the base width of the profile.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Options: Available diffusers include "Black, Clear, Frosted, Milky," offering extensive versatility in light diffusion and aesthetic. The "Milky" option would provide a very even, hotspot-free line of light.
LED Type: Designed for "LED Type 10mm" (likely referring to the width or type of LED strip it accommodates), which is a common size for brighter LED strips.
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: An image shows small clips (likely mounting clips) and a side bracket (perhaps for end-to-end connection or additional support), which are used for securing the profile within the cutout.
Overall Impression:

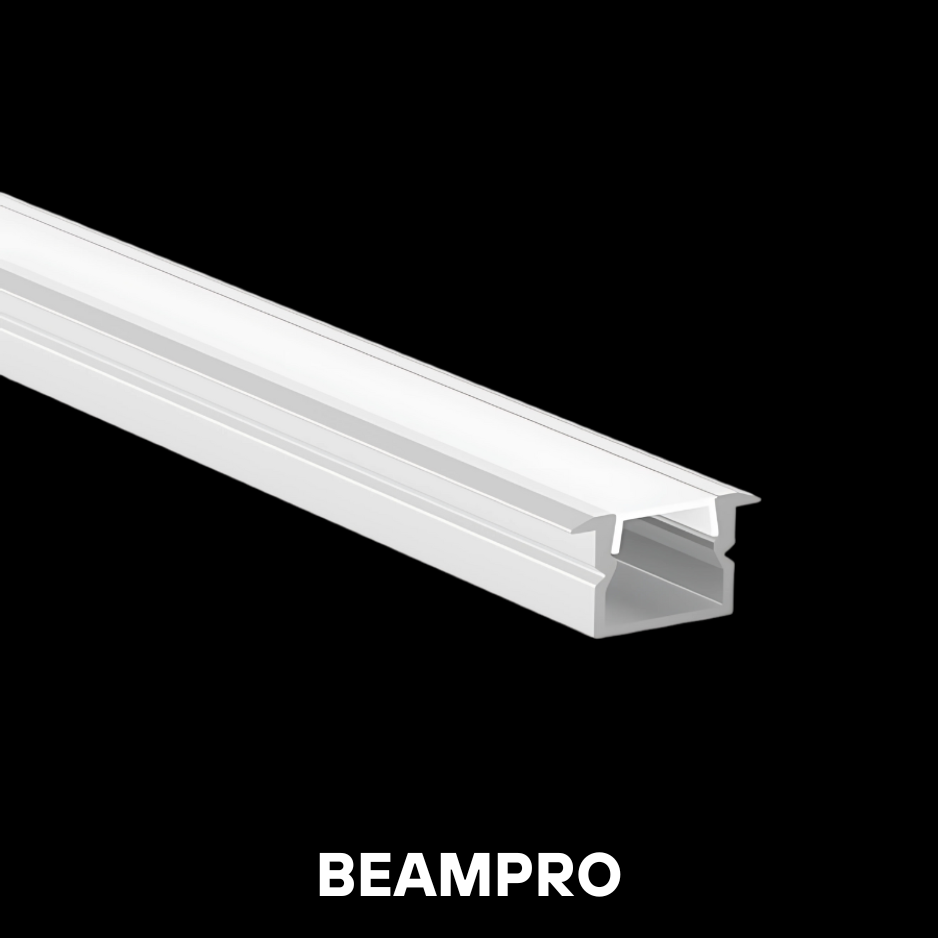

The "BEAM PRO" is a versatile and robust recessed linear lighting solution. Its deeper and wider design allows for the use of more powerful 10mm LED strips, making it suitable for applications requiring significant ambient or general illumination. The variety of diffuser options and the standard 3-meter length provide flexibility for various design needs, ensuring a continuous line of light when seamlessly integrated into surfaces. The name "Beam Pro" suggests a professional-grade profile capable of delivering a strong, uniform beam.
