Goldmedal FAN0001 Casambi 8-Step Fan Speed Controller
Price on Request
Tax excluded. Shipping calculated at checkout

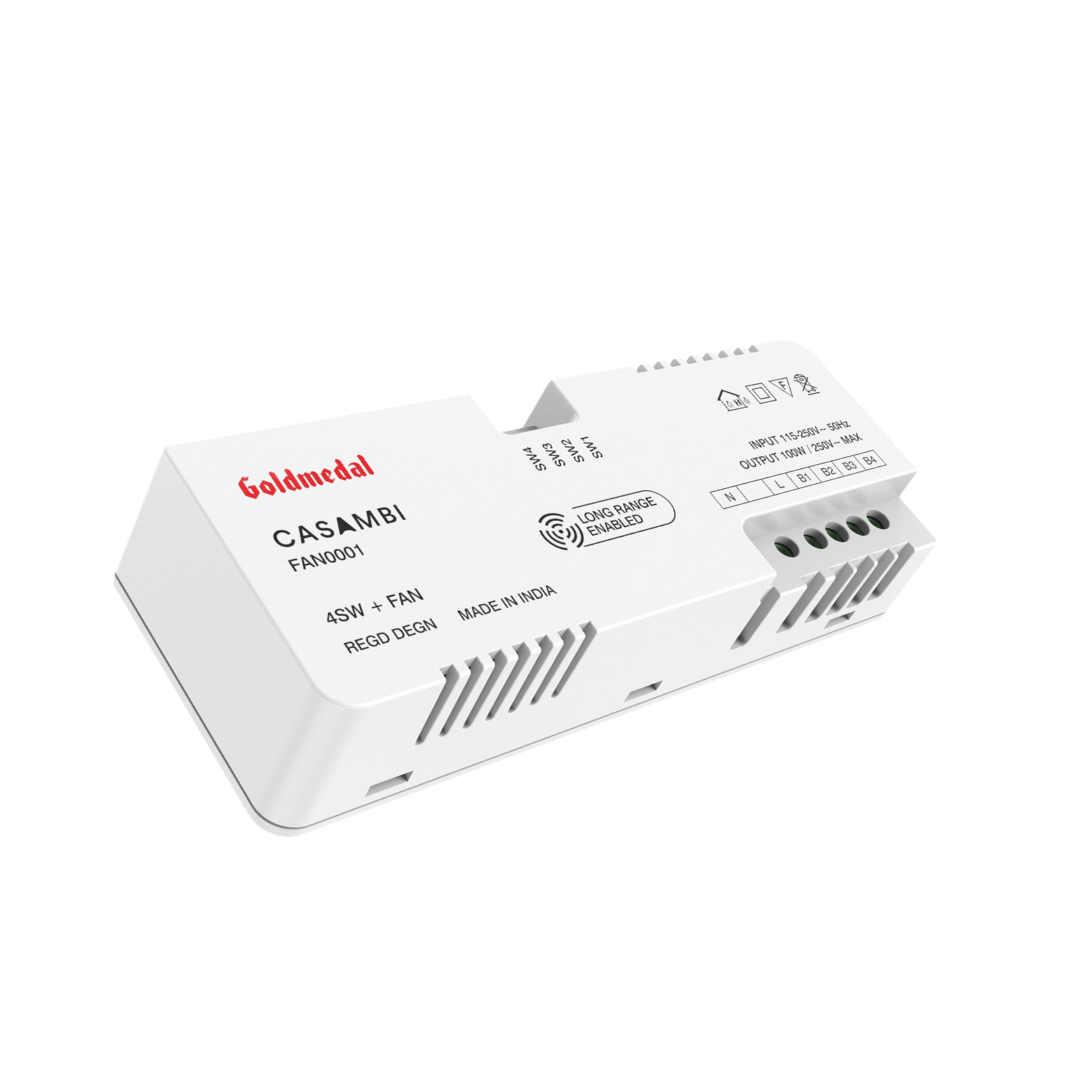

Goldmedal FAN0001 Casambi Fan Controller
Goldmedal FAN0001 is a Casambi-enabled fan speed controller for AC-powered ceiling fans. It provides 8 electronic speed steps and allows fan control to be integrated with Casambi wall switches, scenes and app-based automation.
Key Features
- 8-step electronic fan speed control
- Maximum fan load: 100W
- Designed for AC-powered ceiling fans
- 4 freely programmable push-button inputs
- Casambi Bluetooth Long-Range enabled
- Fan speed can be included in Casambi scenes and room automation
Technical Specifications
| Brand | Goldmedal |
| Model / SKU | FAN0001 |
| Product Type | Casambi Fan Speed Controller |
| Supply Voltage | 115–250 VAC |
| Frequency | 50 Hz |
| Maximum Fan Load | 100W |
| Speed Control | 8 electronic steps |
| Push-Button Inputs | 4, freely programmable |
| Wireless Protocol | Casambi Bluetooth Long Range |
| Radio Frequency | 2402–2480 MHz |
| Maximum Radio Power | +8 dBm |
| Indoor Wireless Range | Up to 50 m |
| Open-Air Wireless Range | Up to 185 m |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions | 117.79 × 42.6 × 25.3 mm |
| Weight | 125 g |
| IP Rating | IP20, indoor use only |
| Certifications | CE, RoHS |
Price: Price on Request
