Goldmedal REL0004 Casambi 4-Channel Relay Controller
Price on Request
Tax excluded. Shipping calculated at checkout

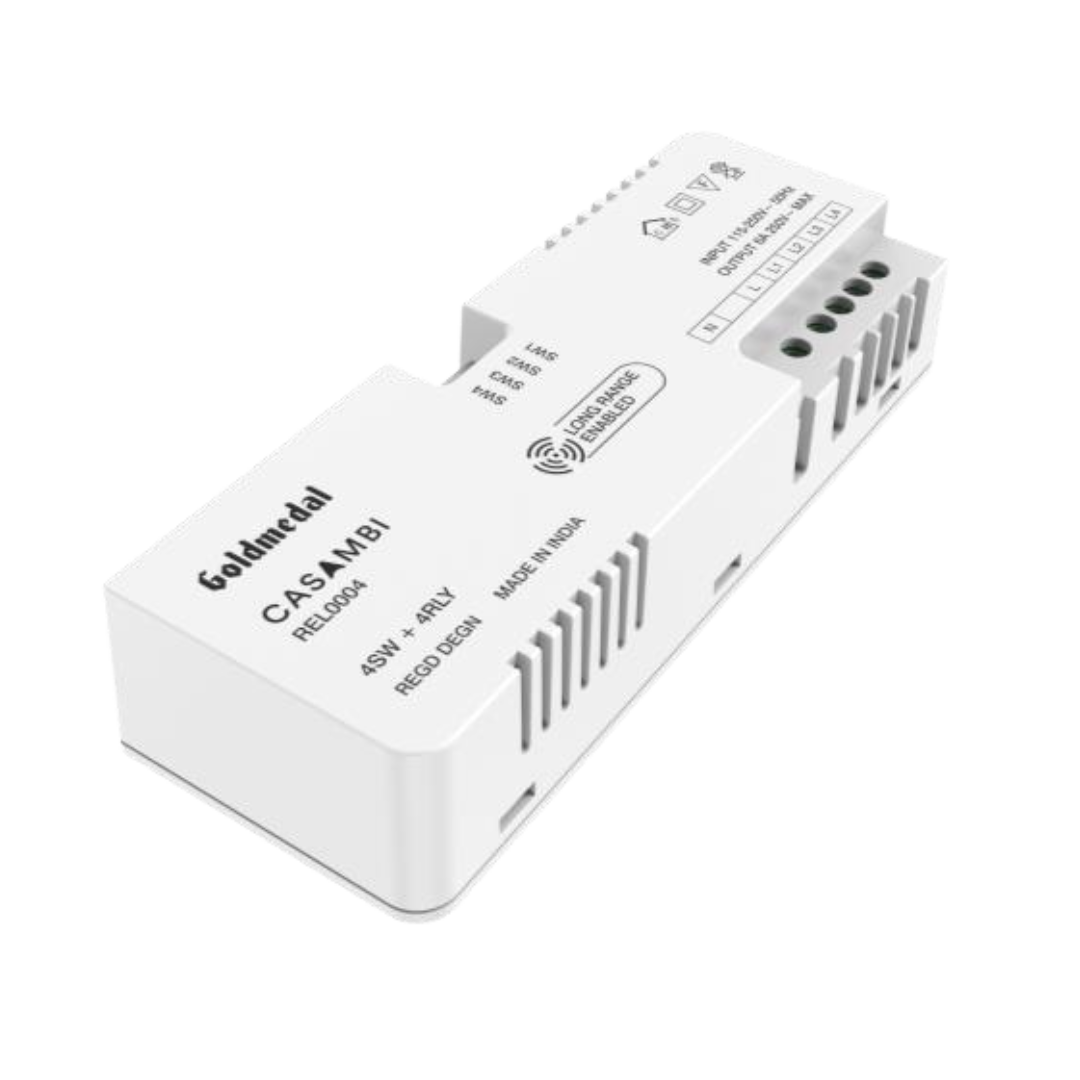

Goldmedal REL0004 Casambi 4-Channel Relay
Goldmedal REL0004 is a wireless Casambi Long-Range relay controller for switching up to four independent single-phase loads. Each relay channel is rated up to 6A and the module includes four freely programmable dry-contact push-button inputs.
Key Features
- 4 independent Casambi-controlled relay outputs
- Maximum 6A per relay channel
- 4 dry-contact push-button inputs
- Push buttons can be programmed for scenes, master functions, switching, dimming, curtains, air-conditioning and temperature functions
- Casambi Bluetooth Long-Range enabled
- Compact housing suitable for flush boxes or cable ducts
Technical Specifications
| Brand | Goldmedal |
| Model / SKU | REL0004 |
| Product Type | Casambi 4-Channel Relay Controller |
| Supply Voltage | 115–250 VAC |
| Frequency | 50 Hz |
| Relay Outputs | 4 |
| Maximum Current | 6A per relay |
| Push-Button Inputs | 4 dry-contact inputs |
| Wireless Protocol | Casambi Bluetooth Long Range |
| Radio Frequency | 2402–2480 MHz |
| Maximum Radio Power | +8 dBm |
| Indoor Radio Range | Up to 50 m |
| Open-Air Radio Range | Up to 155 m |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions | 117.79 × 42.6 × 25.3 mm |
| Weight | 95 g |
| IP Rating | IP20, indoor use only |
| Protection Class | Class II |
Price: Price on Request
